from €4,295,000
Hull length17.96 mFilter by hull length
Beam5.27 m
Draught2.70 m
Weight25,400 kgFilter by weight
Max. power150 hp
About this boat

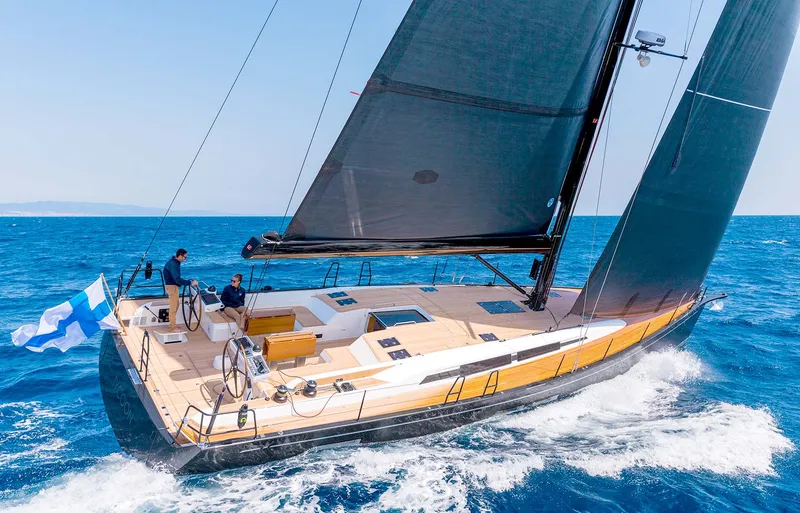

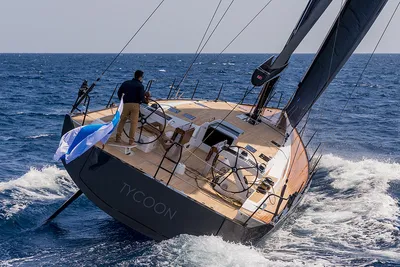

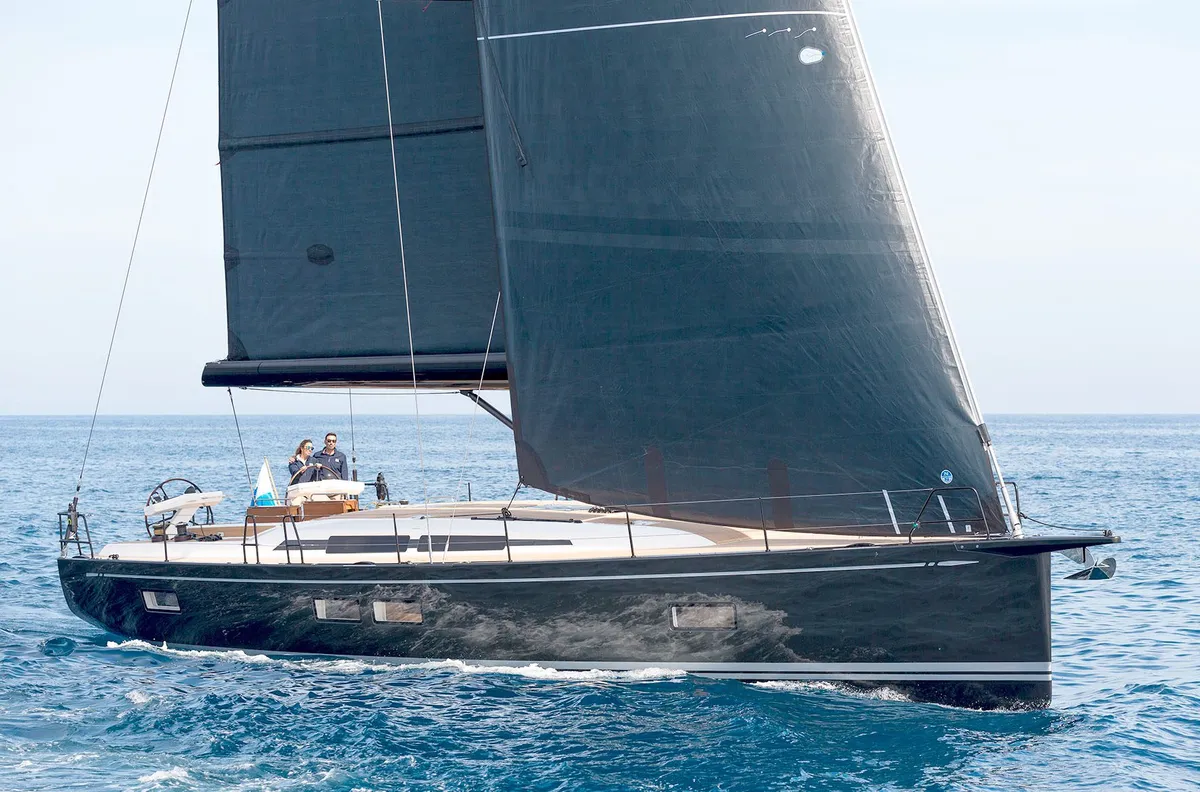

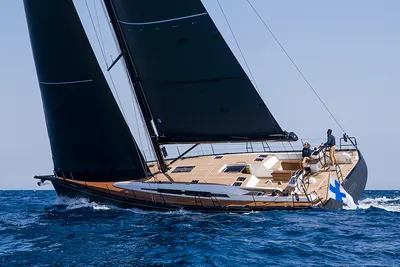

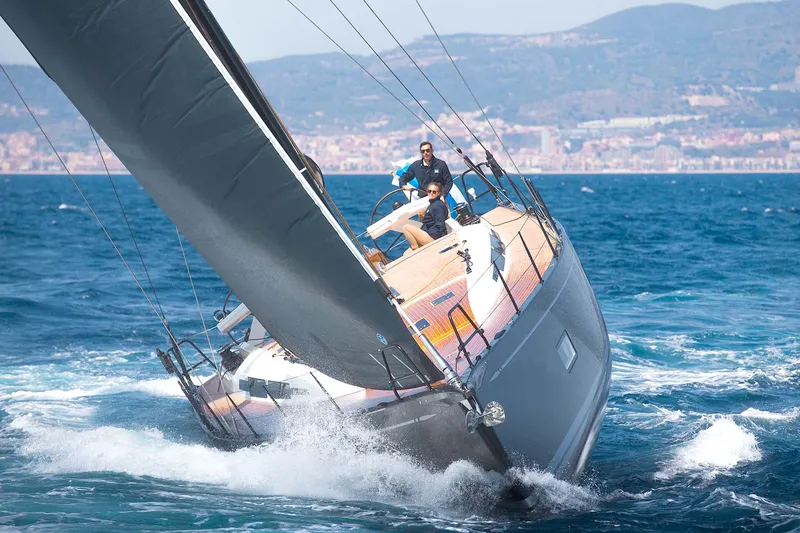

The Swan 58 is a blue-water sailing yacht from Nautor Swan which, according to the yard, combines safety, comfort and autonomy with excellent sailing performance. The design is by Germán Frers, with the interior by Misa Poggi. The hull is 17.96 metres long, the overall length is 19.11 metres and the waterline length is 17.09 metres.
Specifications
Dimensions and weight
- Hull length
- 17.96 m
- Length overall
- 19.11 m
- Beam
- 5.27 m
- Draught
- 2.70 m
- Weight
- 25,400 kg
Engine and power
- Max. power
- 150 hp
- Fuel tank
- 1,080 l
Hull and construction
- Hull material
- GRP
Full description
Show full description
The beam is 5.27 metres. The standard keel has a draught of 2.70 metres, the shallow keel 2.20 metres and the performance keel 3.80 metres. The light displacement is 25,400 kilograms, of which 7,500 kilograms is ballast.

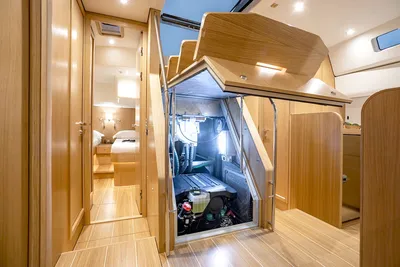

A Yanmar 4LV delivers 150 hp. The fuel tank holds 1,080 litres, the water tank 946 litres and the holding tank 150 litres. The mainsail measures 116.52 m², the 100% jib 97.48 m² and the gennaker 334 m².

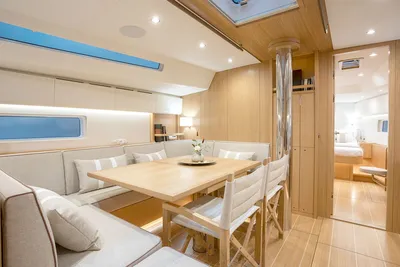

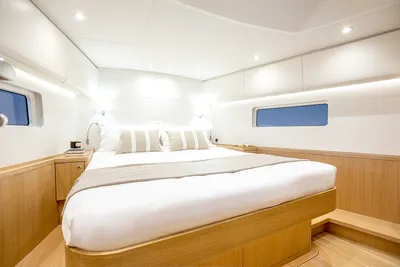

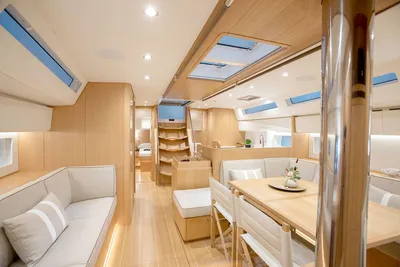

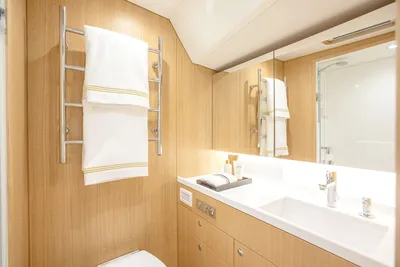

The standard layout comprises three guest cabins and three bathrooms, with an optional fourth cabin amidships and a crew cabin in the forward cabin. The bed in the owner’s cabin at the bow measures 205 by 165 centimetres. The saloon is just over 5 metres long with a headroom of more than 2 metres.
Simpson Marine lists three plus two optional cabins for six guests.
