Hull length20.11 mFilter by hull length
Beam5.62 m
Draught3.50 m
Weight27,250 kgFilter by weight
Max. power150 hp
About this boat

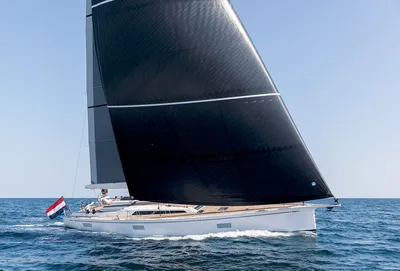

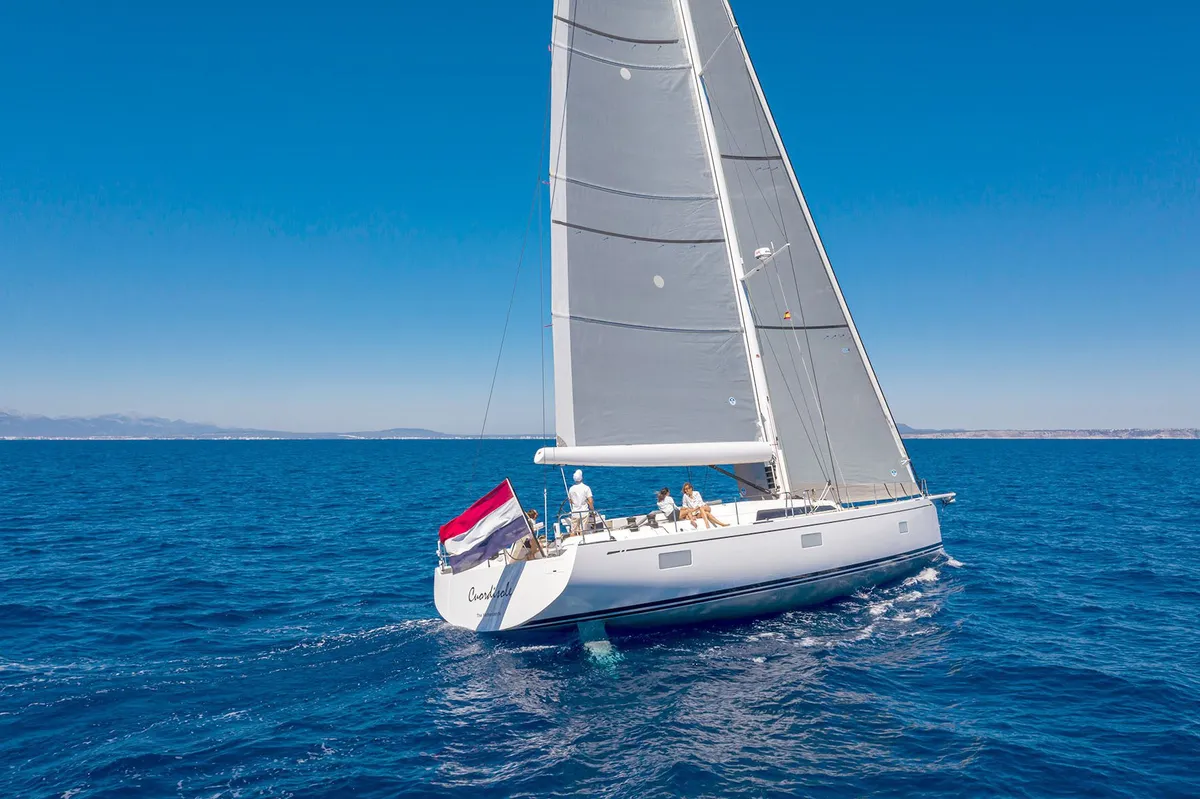

The Swan 65 is a blue-water cruiser from Nautor Swan, designed by Germán Frers with a medium-weight hull, twin rudders and an optional telescopic keel. The interior is by Heini Gustafsson and is finished in European oak.
Specifications
Dimensions and weight
- Hull length
- 20.11 m
- Length overall
- 20.11 m
- Beam
- 5.62 m
- Draught
- 3.50 m
- Weight
- 27,250 kg
Engine
- Max. power
- 150 hp
- Fuel tank
- 1,200 l
Hull and construction
- Hull material
- GRP
Full description
Show full description
The hull is 20.11 metres long, the overall length is 21.76 metres and the waterline length is 18.38 metres. The beam is 5.62 metres. The fixed keel extends 3.50 metres deep, whilst the telescopic keel extends from 2.80 to 4.20 metres. The light displacement is 27,250 kilograms, of which 6,570 kilograms is ballast.

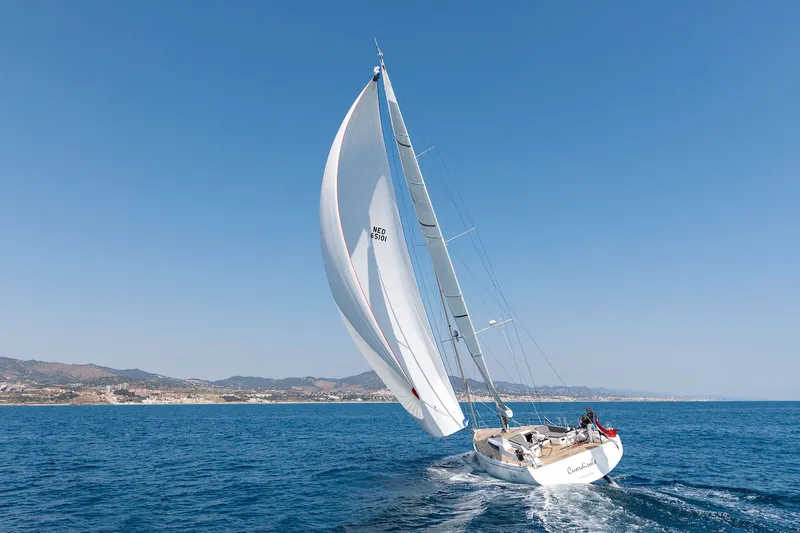

A Yanmar 4LV150 delivers 150 hp (110 kW) and an Onan generator 11 kW. The fuel tank holds 1,200 litres, the water tank 1,000 litres and the grey and holding tanks 200 litres each. The mainsail measures 121.9 m² and the jib 118.3 m².

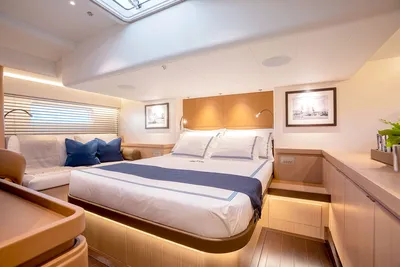

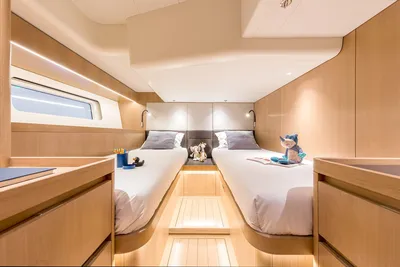

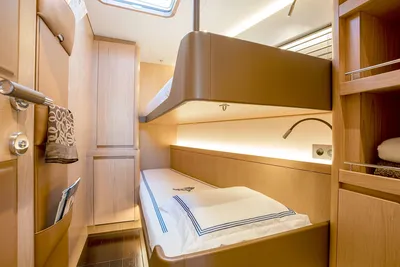

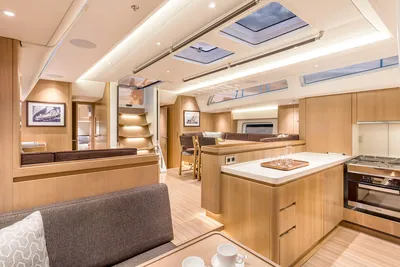

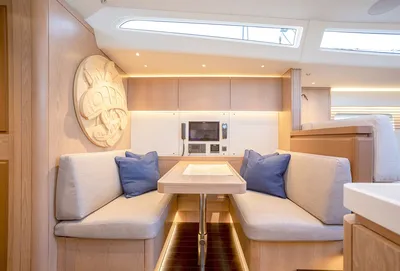

The layout is flexible, with the owner’s cabin at the bow or stern, plus guest and crew cabins. Simpson Marine states that there are three cabins for six guests. The saloon is five metres long and features panoramic windows.

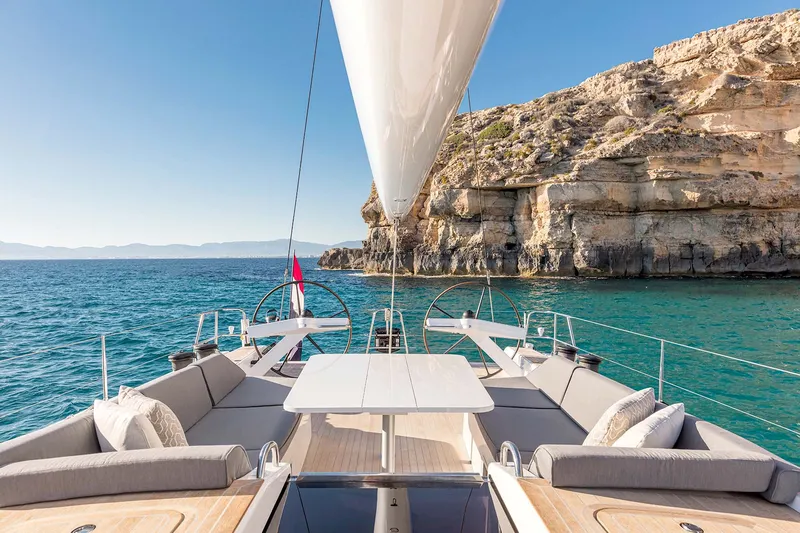

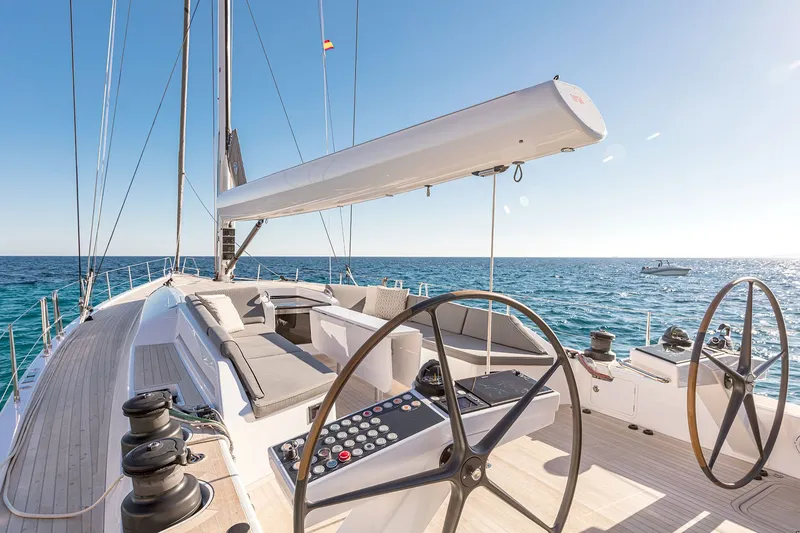

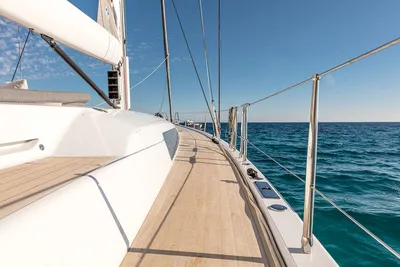

On deck, there is a modern wedge-shaped cabin roof and a cockpit suitable for both cruising and crewed racing.
Engines and power
Yanmar4LV150150 hp · 110 kW150 hp · dieselDiesel · inboard · 4 cylinders · 2.8 lView the 4LV150 →Volvo PentaD3-150dieselDieselView the D3-150 →Want to know which engine the base price includes or what a different engine costs? The builder or a dealer will be happy to help.
