from €2,390,000
Hull length16.60 mFilter by hull length
Beam5.00 m
Draught2.00 m
Weight22,450 kgFilter by weight
Max. power110 hp
CE categoryA
About this boat

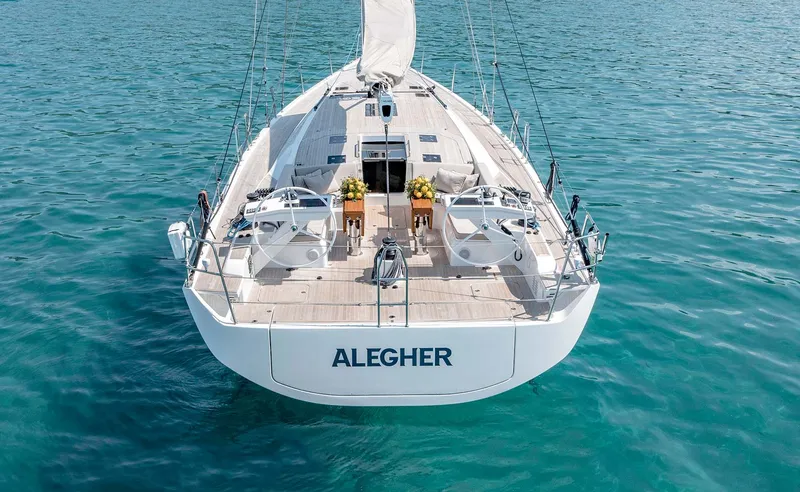

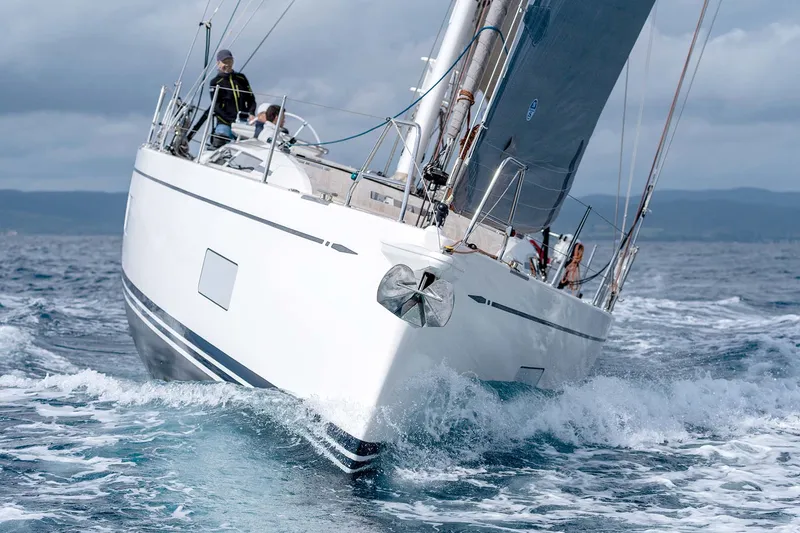

The Swan 55 is an ocean-going cruiser built by Nautor Swan and designed by Germán Frers. According to the yard, the design focuses on space, liveability and flexibility. Two rudders are intended to ensure a comfortable ride and good balance when the yacht is heeled.
Specifications
Dimensions and weight
- Hull length
- 16.60 m
- Length overall
- 17.75 m
- Beam
- 5.00 m
- Draught
- 2.00 m
- Weight
- 22,450 kg
Engine
- Max. power
- 110 hp
- Fuel tank
- 800 l
Hull and construction
- CE category
- A
- Hull material
- GRP
Full description
Show full description
The hull is 16.60 metres long, the overall length is 17.75 metres and the waterline length is 15.78 metres. The beam is 5.00 metres. There are four keels: standard with a draught of 2.50 metres, shallow with a draught of 2.10 metres, performance with a draught of 3.40 metres, and a telescopic keel ranging from 2.00 to 2.85 metres. The light displacement is 22,450 kilograms, of which 7,530 kilograms is ballast.

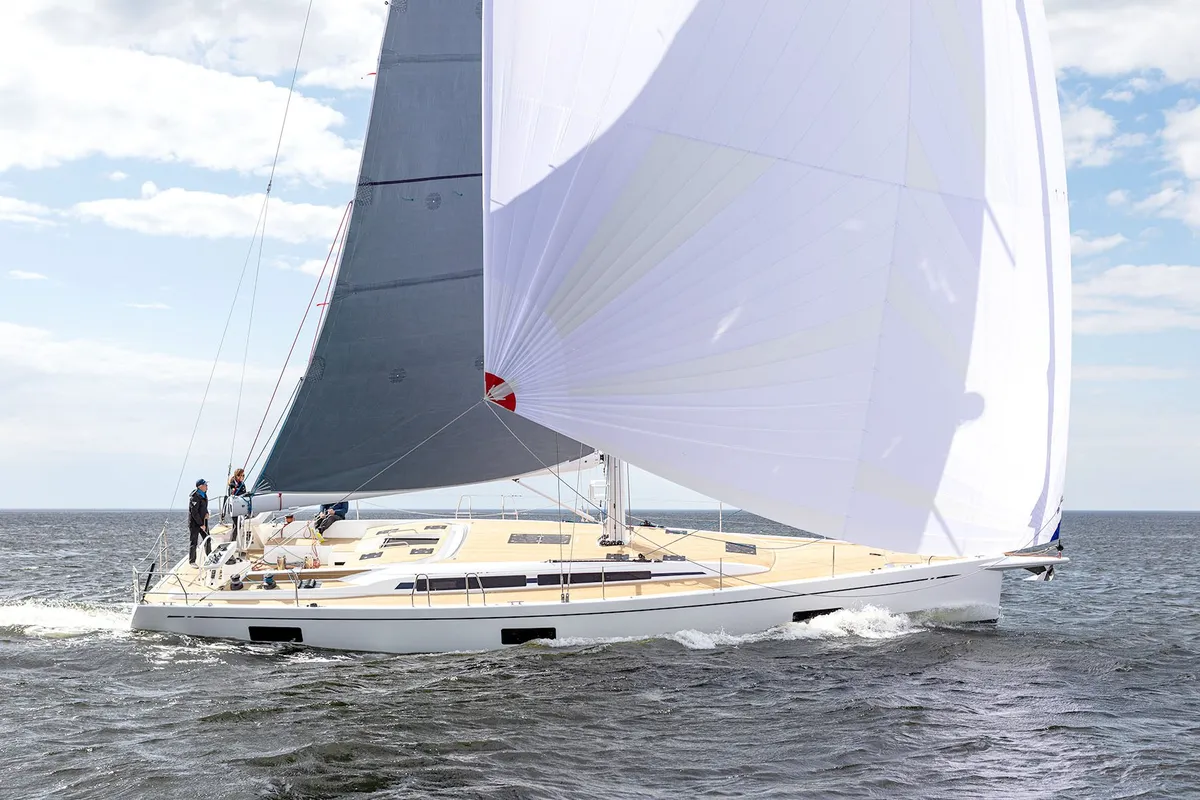

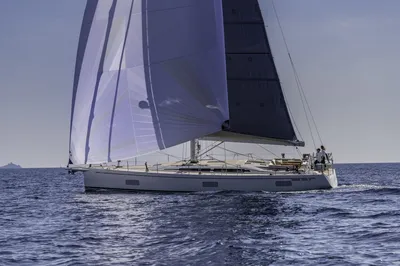

The engine is a 110 hp Yanmar 4JH. The fuel tank holds 800 litres, the water tank 600 litres and the holding tank 100 litres. The mainsail measures 95.11 m², the jib 80.15 m² and the gennaker 275 m².

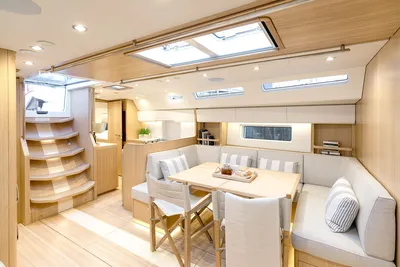

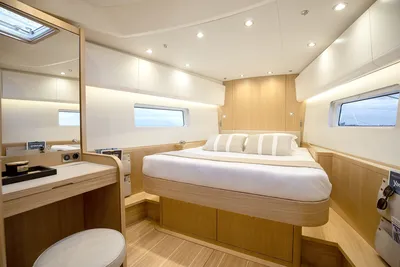

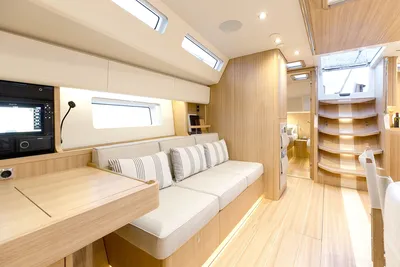

There are three cabins with two bathrooms and an optional third bathroom. A multi-purpose storage area can be converted into a crew cabin. Simpson Marine states that there are three cabins plus an optional one, accommodating six guests.
The batteries supply 24 volts (340 Ah service capacity) via an 80-amp charger and a 230-volt shore power connection.
Engines and power
Want to know which engine the base price includes or what a different engine costs? The builder or a dealer will be happy to help.
