Hull length18.14 mFilter by hull length
Beam5.36 m
Draught2.68 m
Weight30,807 kgFilter by weight
Max. power150 hp
About this boat

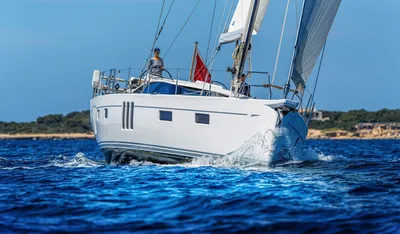

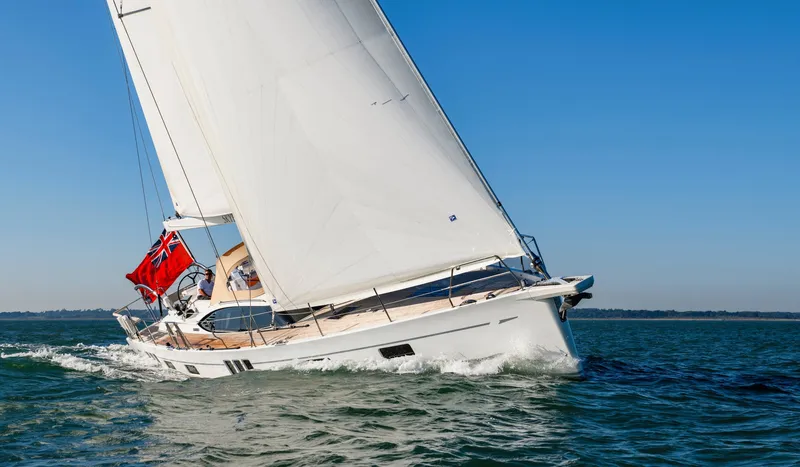

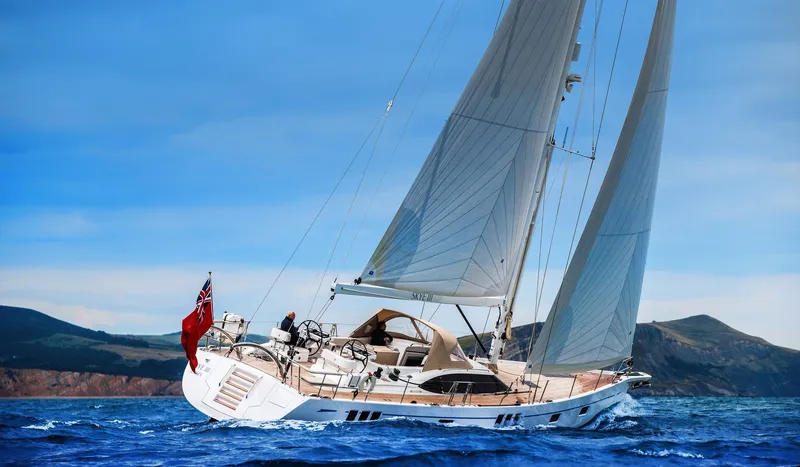

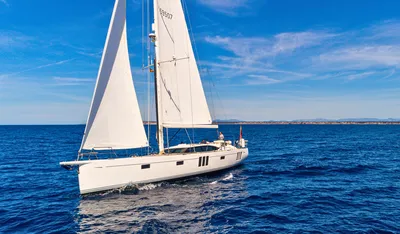

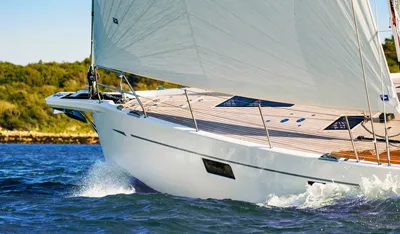

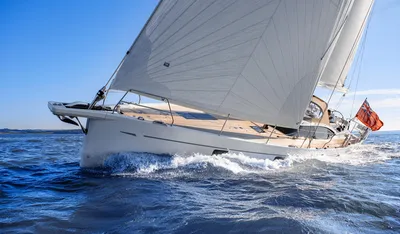

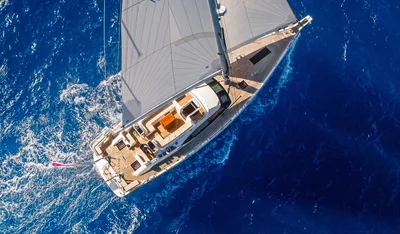

The Oyster 595 Series II is a luxury blue-water sailing yacht of approximately 60 feet from Oyster Yachts, intended for long voyages with family or friends and, according to the trade press, designed to be sailed by a couple.
Specifications
Dimensions and weight
- Hull length
- 18.14 m
- Beam
- 5.36 m
- Draught
- 2.68 m
- Air draft
- 26.81 m
- Weight
- 30,807 kg
Engine
- Max. power
- 150 hp
- Fuel tank
- 1,345 l
Hull and construction
- Hull material
- GRP
Accommodation
- Berths
- 8
Full description
Show full description
The hull measures 18.14 metres and the overall length is 19.05 metres, with a waterline length of 16.81 metres and a beam of 5.36 metres. The displacement with the standard keel is 30,807 kilograms. The draught is 2.68 metres with the standard keel; with the optional centreboard keel, this is 1.79 metres when raised and 4.06 metres when lowered.
The engine is a Yanmar 4LV-150 inboard diesel, 110 hp. The fuel tank holds 1,345 litres and the water tank 1,004 litres. The sail area is 167 m² (furling mast) and 177 m² (slab reef), and the mast height above water is 26.81 metres, excluding antennas.
The design is by Humphreys (hull design) in collaboration with Oyster. The hull and deck will be certified by Lloyd’s Register during construction.

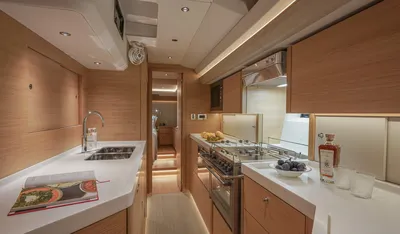

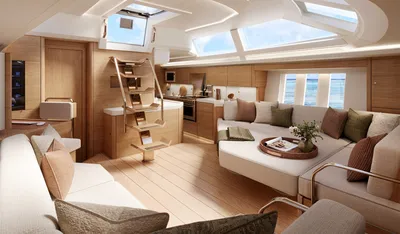

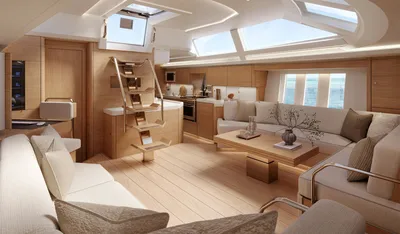

The boat has two rudders, a furling mainsail and electric winches. The interior, finished in oak or walnut, is handcrafted and, depending on the layout, offers up to four cabins for a maximum of eight people.
