from €346,000
Beam5.20 m
Draught2.30 m
Weight27,500 kgFilter by weight
Max. power150 hp
CE categoryA
About this boat
The Kraken 58 is the largest model in the current range, measuring 17.67 metres overall, with a waterline length of 15.83 metres and a beam of 5.20 metres. The yacht is designed for round-the-world voyages with a small crew and is built using the same construction method as the smaller models.
Specifications
Dimensions and weight
- Length overall
- 17.67 m
- Beam
- 5.20 m
- Draught
- 2.30 m
- Air draft
- 30.00 m
- Weight
- 27,500 kg
Engine and power
- Max. power
- 150 hp
- Fuel tank
- 1,600 l
Hull and construction
- CE category
- A
- Hull material
- GRP
Full description
Show full description
Here too, the Zero Keel is integrally laminated to the hull, without any keel bolts. In the impact zones, the yard applies at least twenty layers of composite fibre on top of one another, so that the hull can withstand a collision with a container or a tree trunk without immediately giving way.

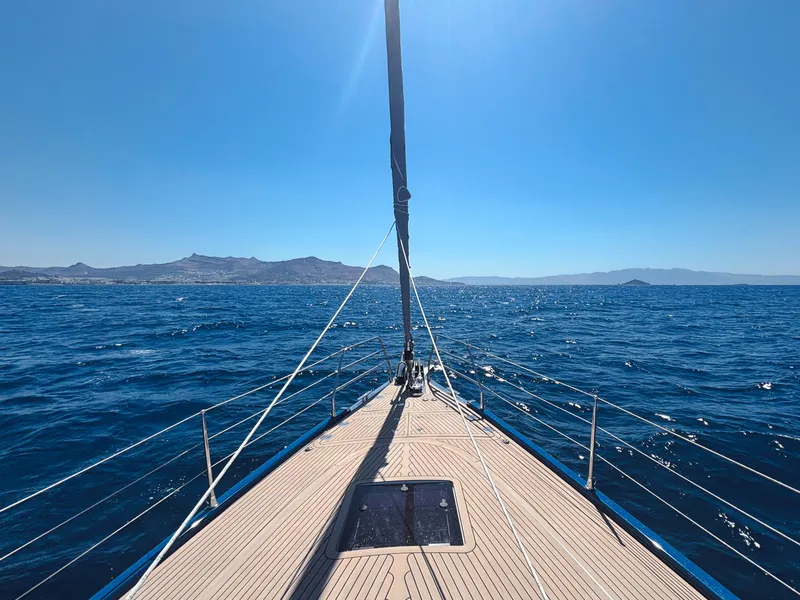

The Alpha Rudder is sheltered behind a centreboard and rotates on three independent bearings. On deck, the hollow bulwark, the 80-centimetre-long scepters and the triple wire railings ensure that the crew can move safely forward even in heavy weather.
The solent rig combines a 121-square-metre genoa with a smaller 71.75-square-metre jib, set behind a 109.09-square-metre mainsail. The total sail area is 180.84 square metres, supported by 10,100 kilograms of ballast.
The displacement ranges from 27,500 kilograms when empty to 31,300 kilograms when fully laden. With 1,600 litres of fuel in three tanks and 950 litres of drinking water in two tanks, the range is considerable, complemented by spacious tanks for waste water and grey water.
Engines and power
Want to know what the boat costs with one of these engines? The builder or a dealer will be happy to help.
