Hull length15.24 mFilter by hull length
Beam4.20 m
Draught3.50 m
Weight8,250 kgFilter by weight
Max. power40 hp
About this boat

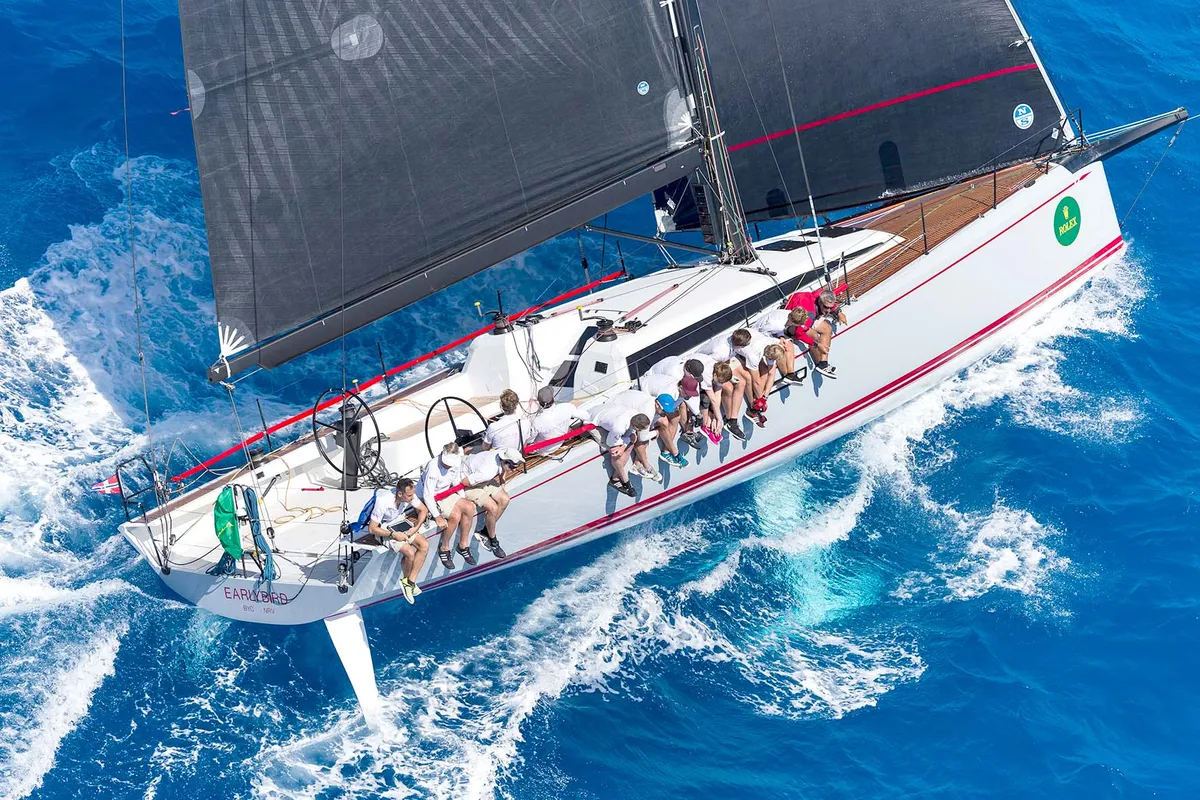

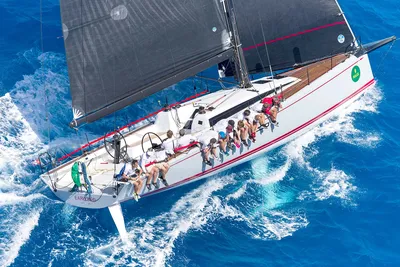

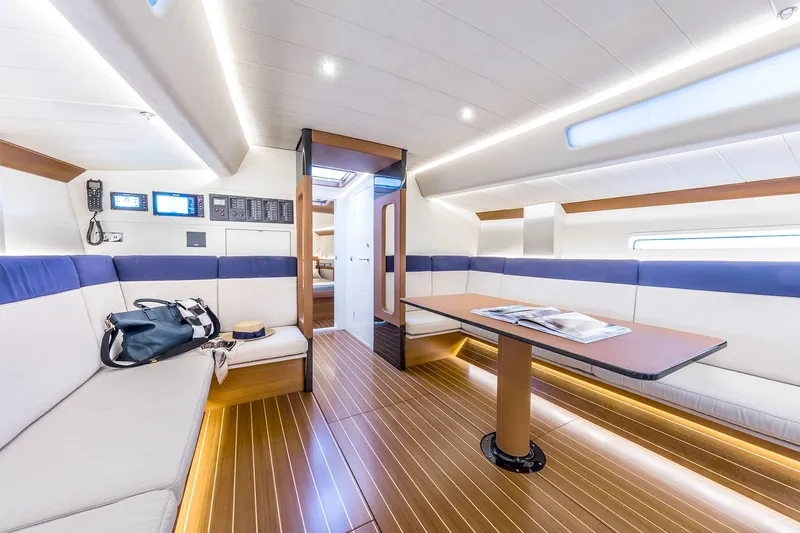

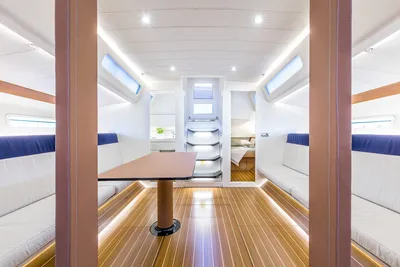

The ClubSwan 50 is a racing yacht from Nautor Swan with a lightweight carbon fibre structure, designed by Juan Kouyoumdjian. The interior, designed by Michele Bönan, features components that can be removed for racing.
Specifications
Dimensions and weight
- Hull length
- 15.24 m
- Length overall
- 15.24 m
- Beam
- 4.20 m
- Draught
- 3.50 m
- Weight
- 8,250 kg
Engine
- Max. power
- 40 hp
- Fuel tank
- 170 l
Hull and construction
- Hull material
- GRP
Accommodation
- Berths
- 8
Full description
Show full description
The hull is 15.24 metres long; the overall length, including the bowsprit and boom, is 16.74 metres; and the waterline length is 14.00 metres. The beam is 4.20 metres. The standard keel has a draught of 3.50 metres, whilst an optional shallow keel has a draught of 2.20 metres. The light displacement is 8,250 kilograms, of which approximately 3,450 kilograms is ballast.

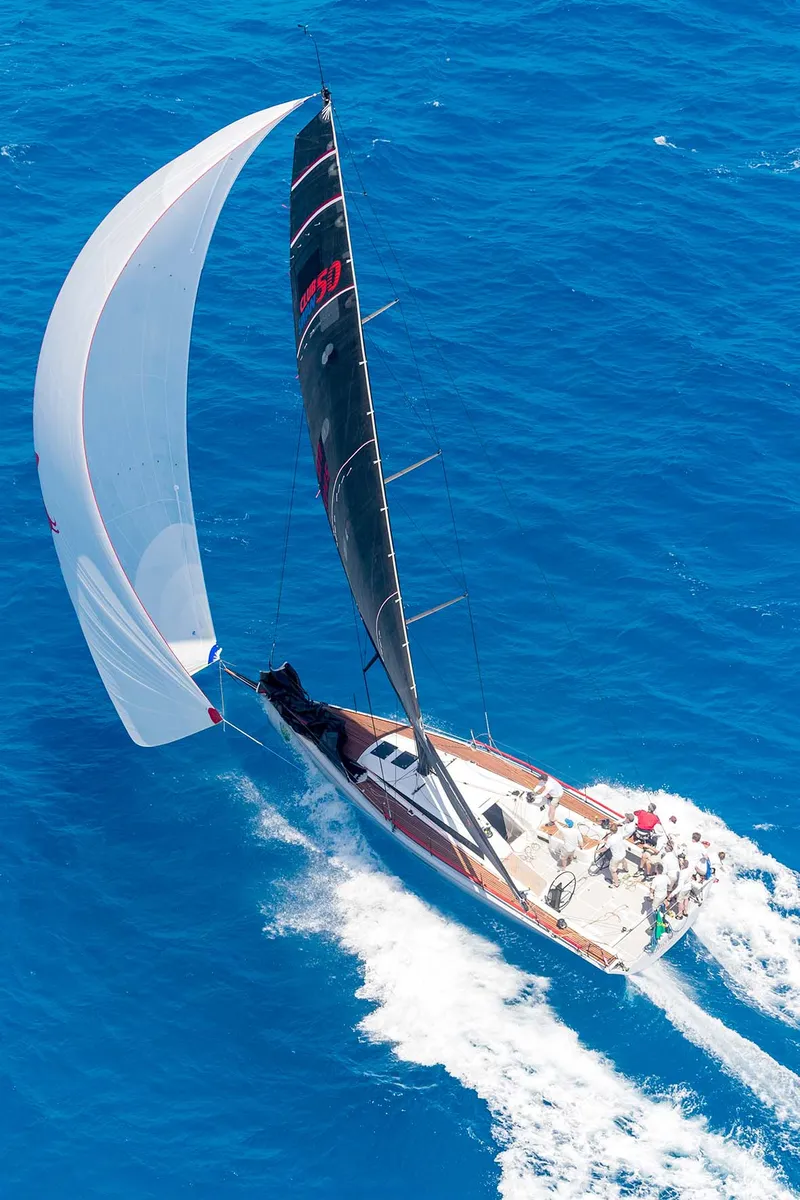

A Volvo D2-40 delivers 40 hp (29 kW). The fuel tank holds 170 litres, the water tank 240 litres and the holding tank 40 litres. The mainsail measures 93 m², the headsail 65 m² and the asymmetrical spinnaker 235 m².

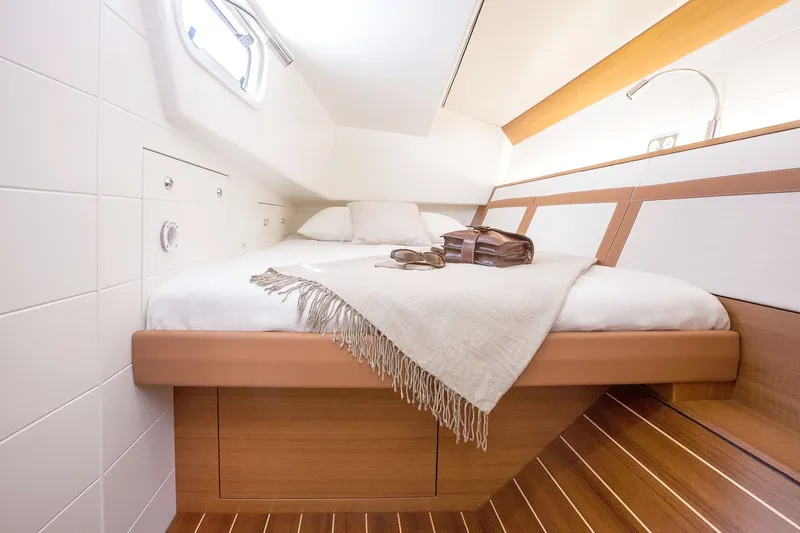

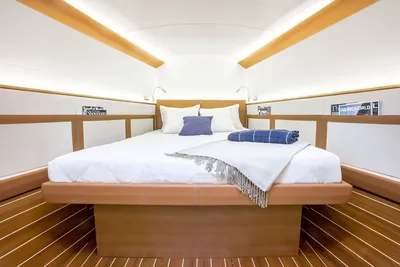

The deck is suitable for a large racing crew or a couple, with six racing winches. Simpson Marine states that there are up to three cabins and berths for up to six people.
The yard states that the boat performs best upwind at a 22-degree angle of heel.
