E6

Name: Elan Yachts E6
Brand: Elan Yachts
Price: 599900 EUR

Cruising yachtsE Series range

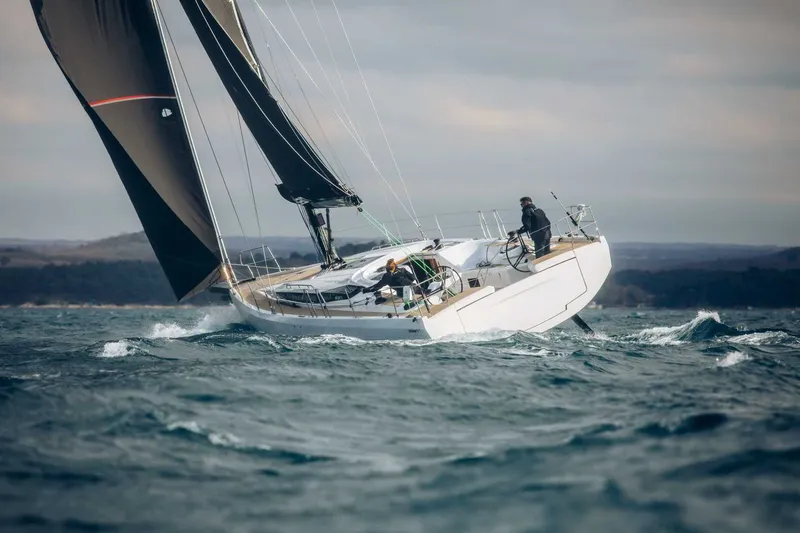

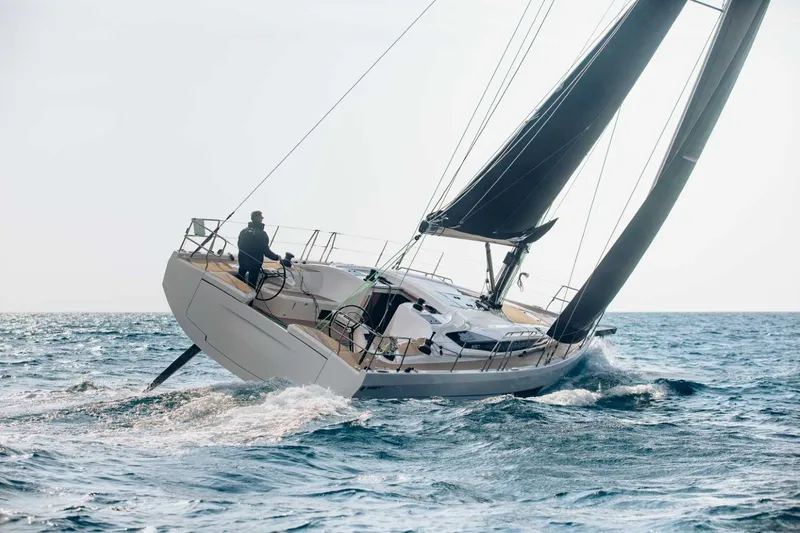

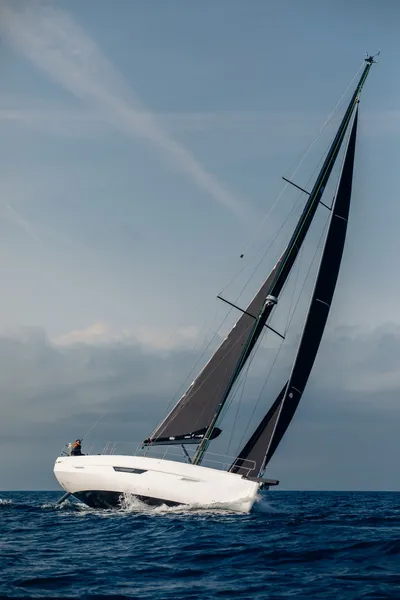

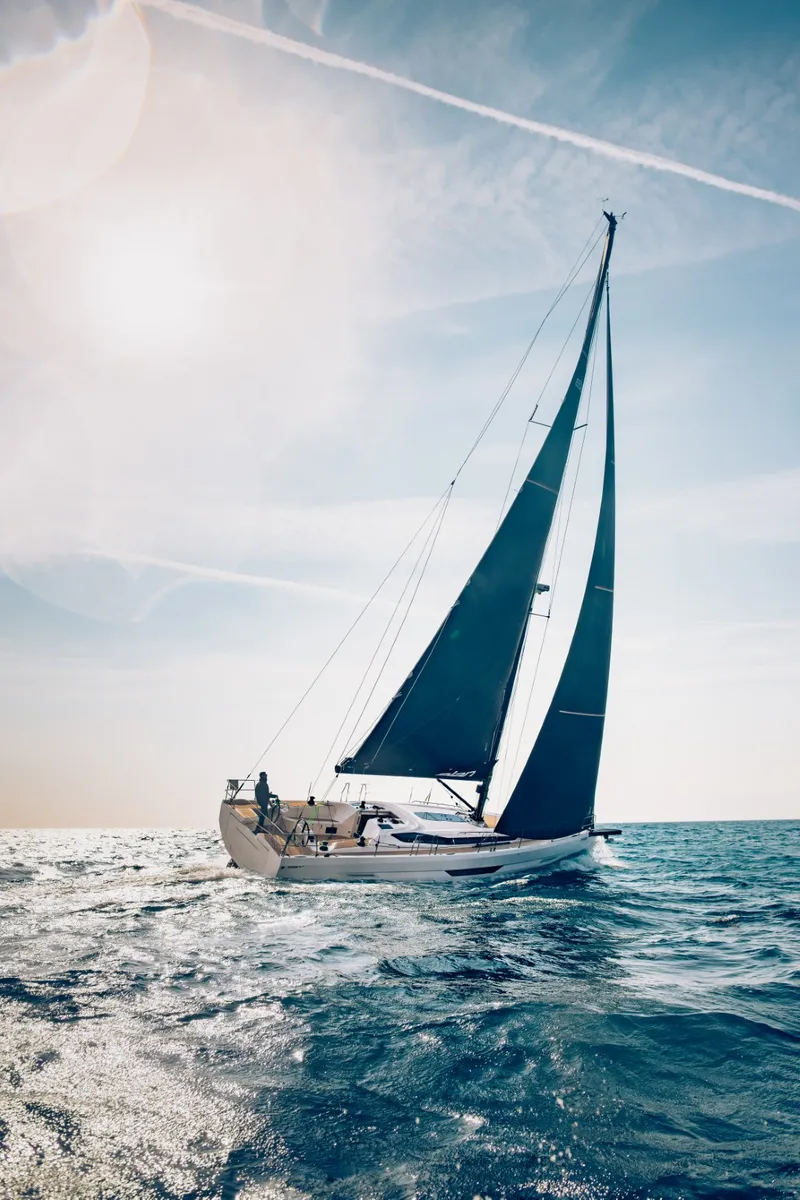

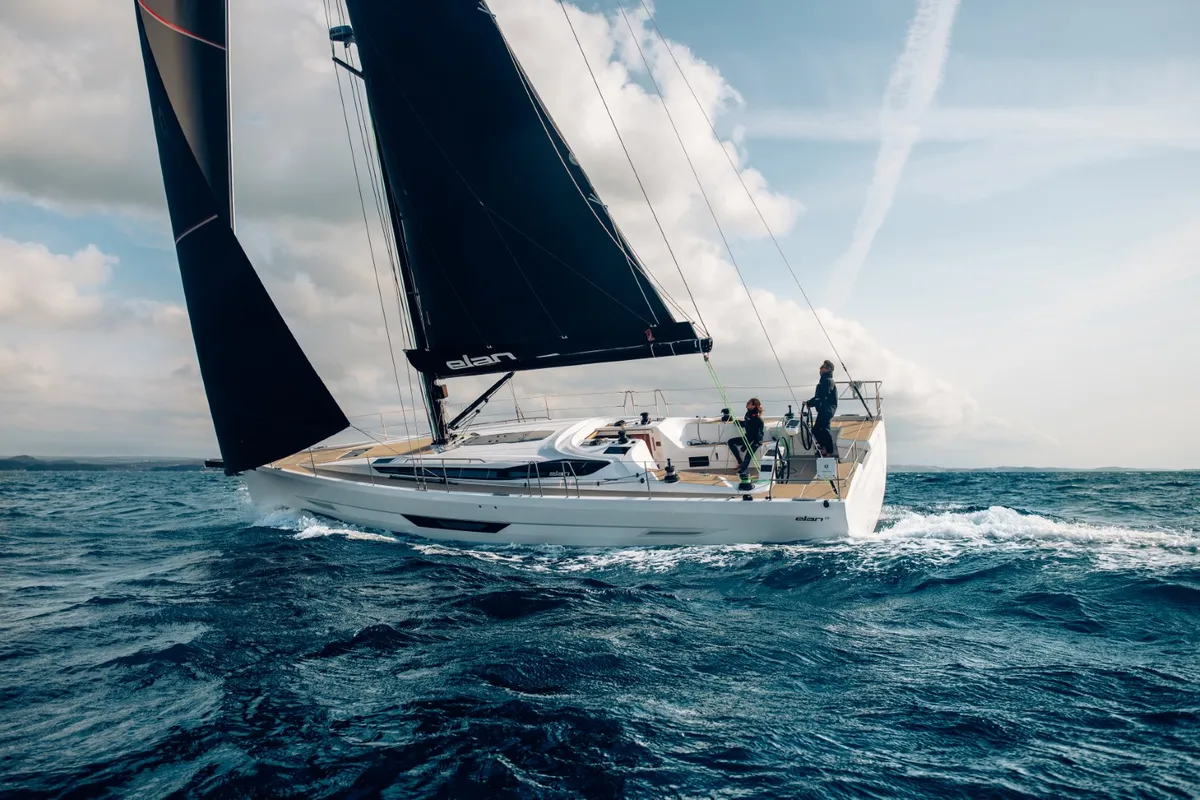

Elan Yachts E6: Sailing boat sailing at sea

Hull length14.10 mFilter by hull length

Beam4.49 m

Draught2.80 m

Weight11,250 kgFilter by weight

Max. power80 hp

CE categoryA

About this boat

The Elan E6 is the largest model in the E-line, with a hull length of 14.10 metres and an overall length of 15.30 metres. The boat is aimed at owners who want to sail fast whilst still having space for a family or guests.

Specifications

Dimensions and weight

Hull length: 14.10 m
Length overall: 15.30 m
Beam: 4.49 m
Draught: 2.80 m
Air draft: 23.26 m
Weight: 11,250 kg

Engine and power

Max. power: 80 hp
Number of engines: 2
Max. power per engine: 40 hp
Fuel tank: 240 l

Hull and construction

CE category: A
Hull material: GRP

Full description

Show full description

The waterline length is 13.68 metres, with a beam of 4.49 metres. The standard keel provides a draught of 2.80 metres, with options of 2.40 metres and 2.95 metres. The light weight is 11,250 kilograms with 3,267 kilograms of ballast. The yard offers two layouts: three cabins with two bathrooms, or four cabins with two bathrooms.

The standard engine is a Yanmar 4JH57 producing 41.9 kW, or 57 hp; a Yanmar 4JH80 producing 58.8 kW, or 80 hp, is available as an option. In addition, the yard supplies a 15 kW Oceanvolt electric drive or a twin 10 kW unit. The fuel tank has a capacity of 240 litres and the water tank 370 litres.

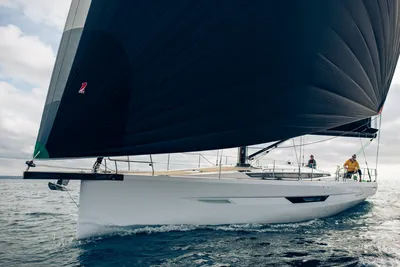

The sail plan consists of a mainsail measuring 68.56 square metres and a jib measuring 53.71 square metres, with a gennaker measuring 201.7 square metres as an option. The air draft, including the antenna, is 23.26 metres.

The exterior and interior were designed by Pininfarina, whilst the hull was designed by Humphreys Yacht Design. The boat is classified under CE design category A.
