Impression 45.1

Name: Elan Yachts Impression 45.1
Brand: Elan Yachts
Price: 350000 EUR

Cruising yachtsImpression rangeIn production

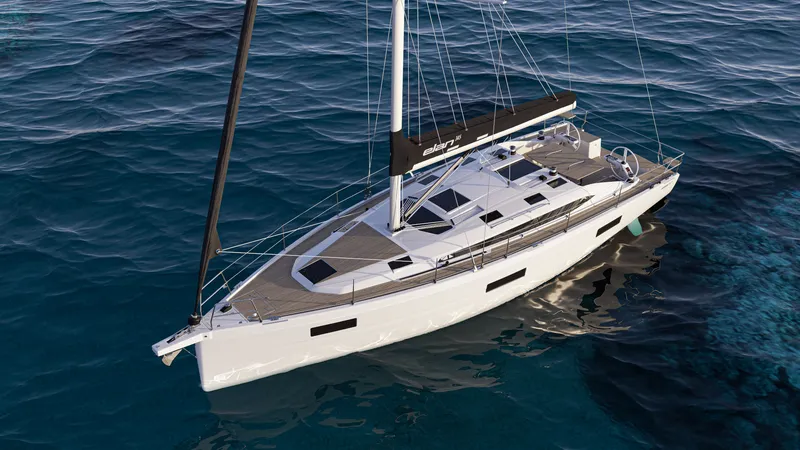

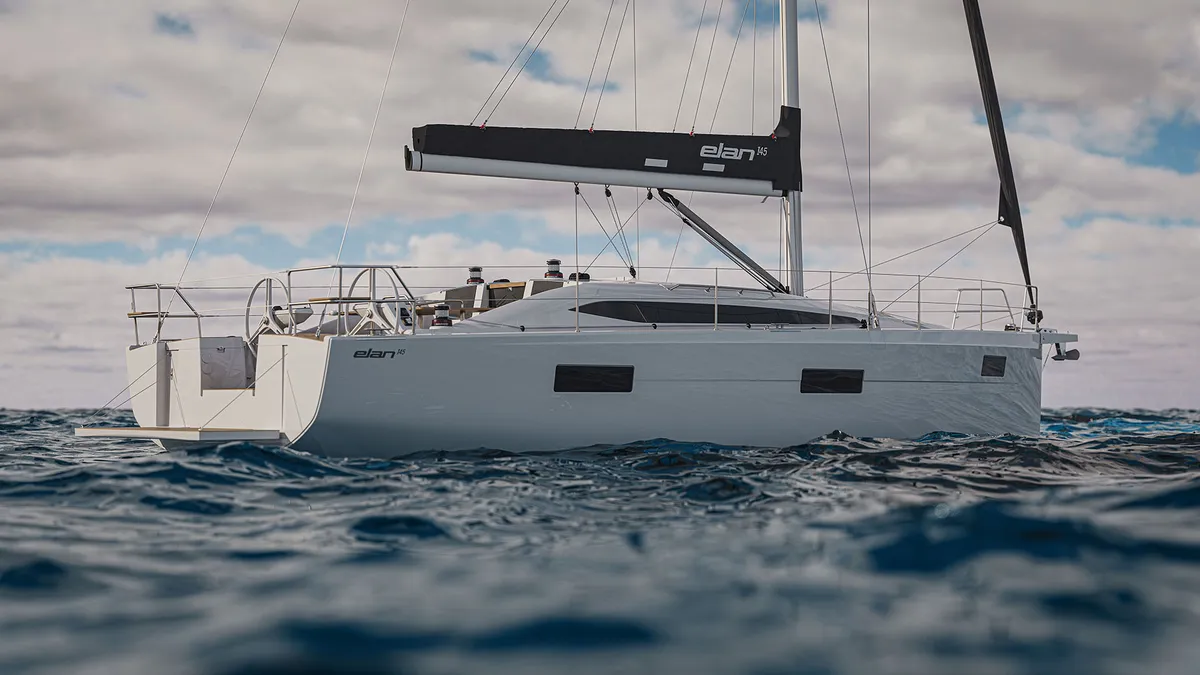

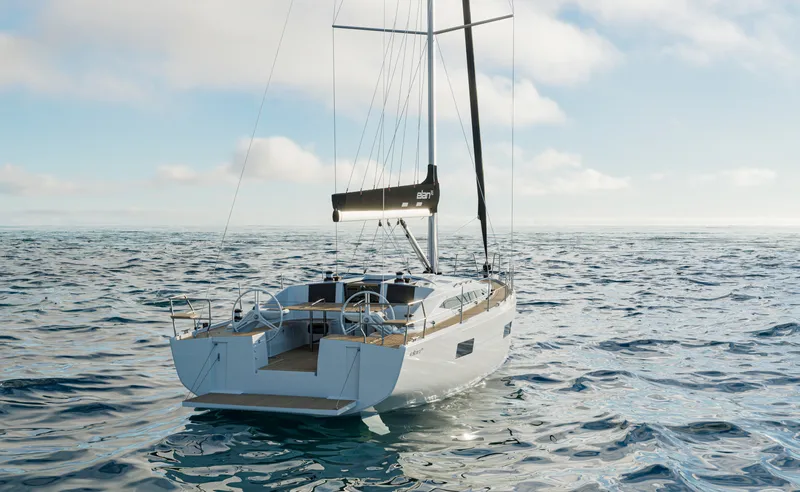

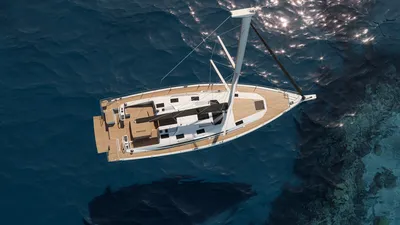

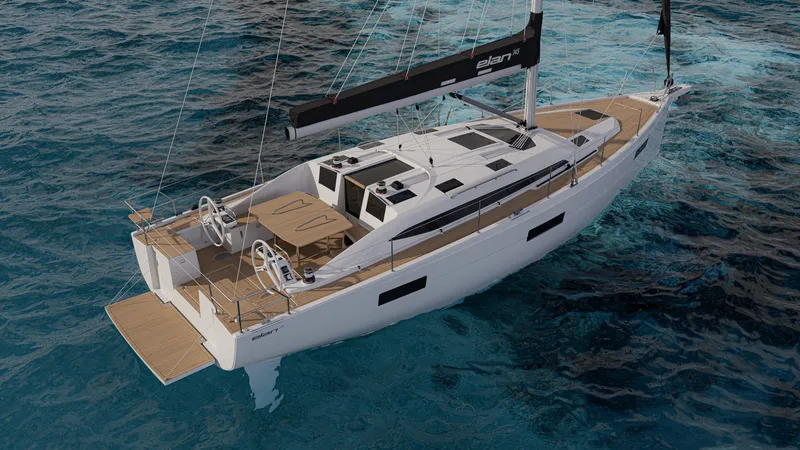

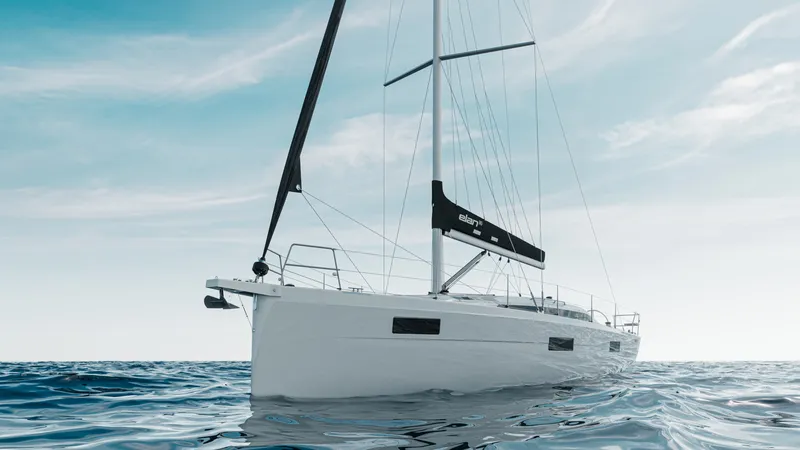

Elan Yachts Impression 45.1: Sailing boat at sea

Hull length12.82 mFilter by hull length

Beam4.25 m

Draught1.90 m

Weight11,100 kgFilter by weight

Max. power80 hp

CE categoryA

About this boat

The Elan Impression 45 is part of the yard’s touring range and has a hull length of 12.82 metres and an overall length of 13.60 metres. The boat is designed for families and the charter market, with plenty of berths and a spacious deck.

Specifications

Dimensions and weight

Hull length: 12.82 m
Length overall: 13.85 m
Beam: 4.25 m
Draught: 1.90 m
Air draft: 19.90 m
Weight: 11,100 kg

Engine

Max. power: 80 hp
Fuel tank: 287 l

Hull and construction

CE category: A
Hull material: GRP

Full description

Show full description

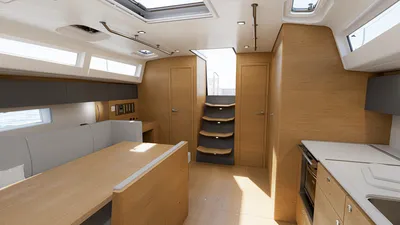

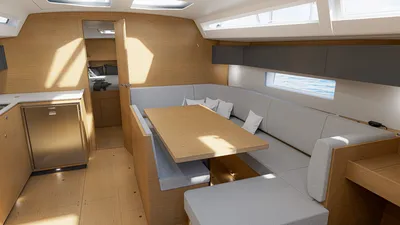

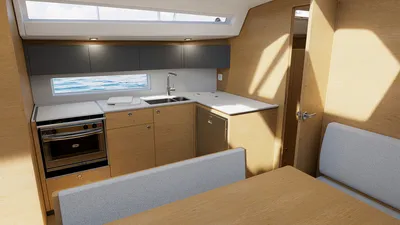

The waterline length is 12.20 metres, with a beam of 4.25 metres. The standard keel provides a draught of 1.95 metres, with a shallow-draught option of 1.70 metres. The weight is 11,100 kilograms with 3,541 kilograms of ballast, or 3,686 kilograms in the optional version. The layout comprises three cabins with two bathrooms, or four cabins with two bathrooms.

The standard engine is a 45 hp Yanmar 4JH45, with the 57 hp 4JH57 and the 80 hp 4JH80 available as options. The yard also lists an Oceanvolt electric propulsion system as an option, without specifying the power output. The fuel tank has a capacity of 287 litres and the water tank 270 litres, which can be expanded to 470 litres.

The sail plan comes as standard with a mainsail of 46.68 square metres and a self-tacking jib of 34.1 square metres. Options are available with a furling mainsail of 42.10 square metres and a genoa of 41.30 square metres, plus a gennaker of 118 square metres. The air draft, including the antenna, is 19.90 metres.

The boat is classified as CE design category A.
