Impression 50.1

Name: Elan Yachts Impression 50.1
Brand: Elan Yachts
Price: 633900 EUR

Cruising yachts

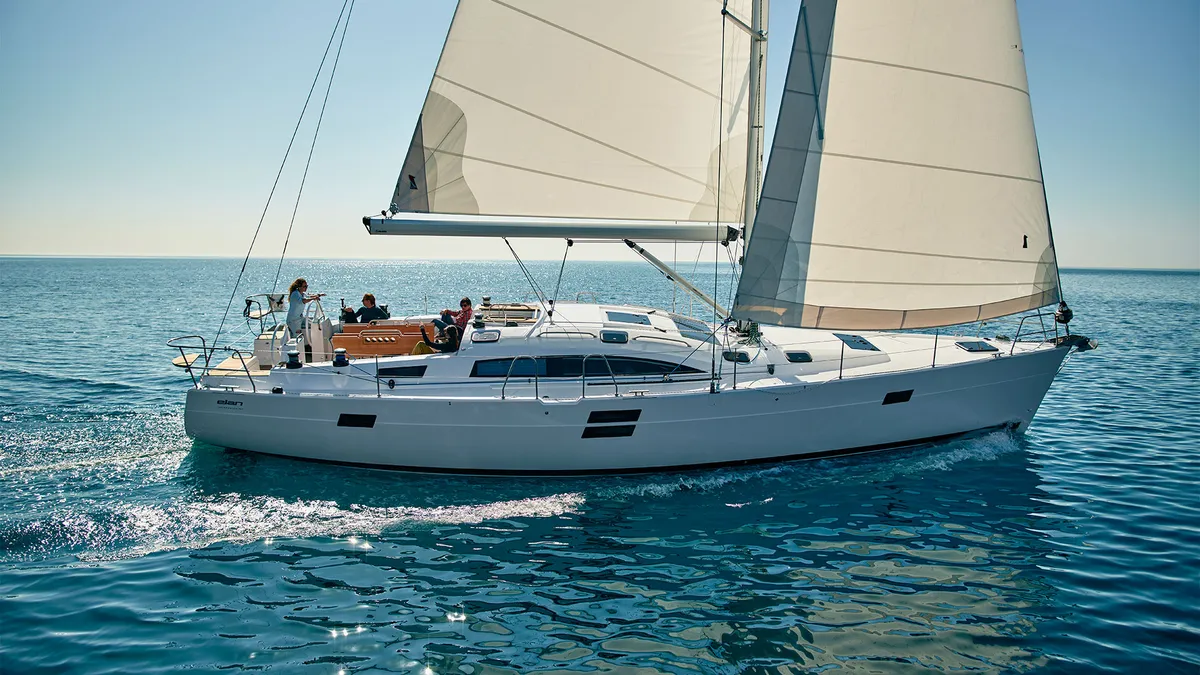

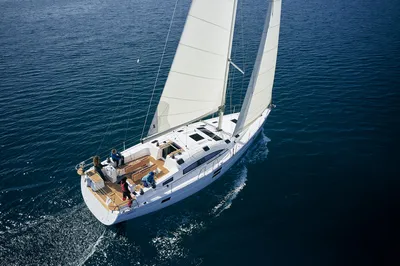

Elan Yachts Impression 50.1: Sailing boat sailing at sea

Hull length14.83 mFilter by hull length

Beam4.68 m

Draught2.23 m

Weight12,660 kgFilter by weight

Max. power80 hp

CE categoryA

About this boat

The Elan Impression 50.1 is the largest model in the touring range, with a hull length of 14.83 metres and an overall length of 15.18 metres. The boat is designed to maximise space on board and is therefore also used by charter companies.

Specifications

Dimensions and weight

Hull length: 14.83 m
Length overall: 15.18 m
Beam: 4.68 m
Draught: 2.23 m
Air draft: 22.90 m
Weight: 12,660 kg

Engine and power

Max. power: 80 hp
Fuel tank: 255 l

Hull and construction

CE category: A
Hull material: GRP

Accommodation

Berths: 8

Full description

Show full description

The waterline length is 13.76 metres, with a beam of 4.68 metres. The standard keel provides a draught of 2.23 metres, with a shallow-draft option of 1.84 metres. The light weight is 12,660 kilograms with 4,500 kilograms of ballast, or 4,800 kilograms in the optional configuration. The yard offers three layouts: three cabins with three bathrooms, four cabins with three bathrooms, or five cabins with two bathrooms.

The engine is a Yanmar 4JH80 with an output of 58.8 hp, or 80 hp. As an option, the yard offers a twin Oceanvolt electric propulsion system rated at 15 kW. The fuel tank has a capacity of 255 litres and the water tank 605 litres.

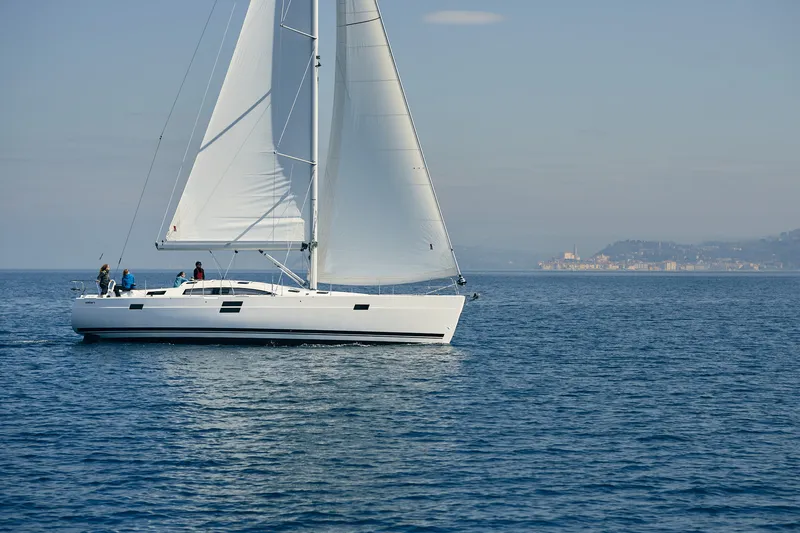

The sail plan features a mainsail of 57.96 square metres, or 55.94 square metres in the furling version, with a genoa of 50.65 square metres and a gennaker of 173 square metres. The air draft, including the antenna, is 22.9 metres.

The boat is classified as CE design category A.
