E4

Name: Elan Yachts E4
Brand: Elan Yachts
Price: 265900 EUR

Cruising yachtsE Series rangeIn production

Hull length10.60 mFilter by hull length

Beam3.50 m

Draught2.15 m

Weight5,420 kgFilter by weight

Max. power29 hp

CE categoryA

About this boat

The Elan E4 is the smallest model in the Slovenian yard’s E-line, measuring 10.60 metres both overall and in hull length. The yard describes the line as a ‘crossover’: a boat that is fast enough for racing whilst also being equipped for holiday cruising.

Specifications

Dimensions and weight

Hull length: 10.60 m
Length overall: 10.60 m
Beam: 3.50 m
Draught: 2.15 m
Air draft: 17.60 m
Weight: 5,420 kg

Engine and power

Max. power: 29 hp
Fuel tank: 75 l

Hull and construction

CE category: A
Hull material: GRP

Full description

Show full description

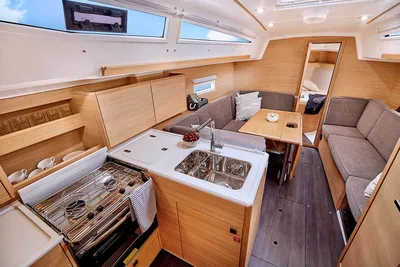

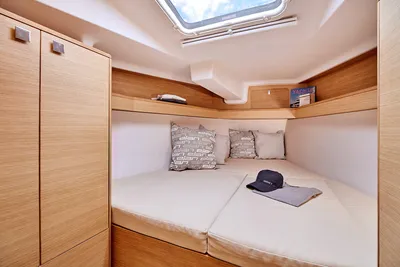

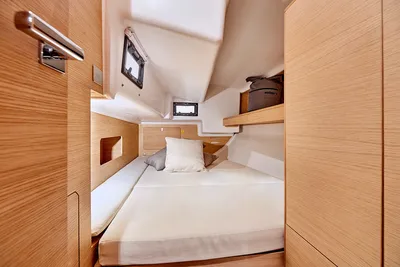

The waterline length is 10.10 metres, with a beam of 3.50 metres. The standard keel provides a draught of 2.15 metres, with options for a shallow keel of 1.70 metres and a deep keel of 2.35 metres. The light weight is 5,420 kilograms with 1,385 kilograms of ballast. There are three cabins below deck. The design is by Humphreys Yacht Design in collaboration with the yard’s design team.

The standard engine is a Yanmar 3YM30AE with an output of 21.3 hp, or 29 hp. In addition, the yard offers two electric propulsion systems from Oceanvolt, with outputs of 8 kW or 10 kW. The fuel tank has a capacity of 75 litres and the water tank 185 litres.

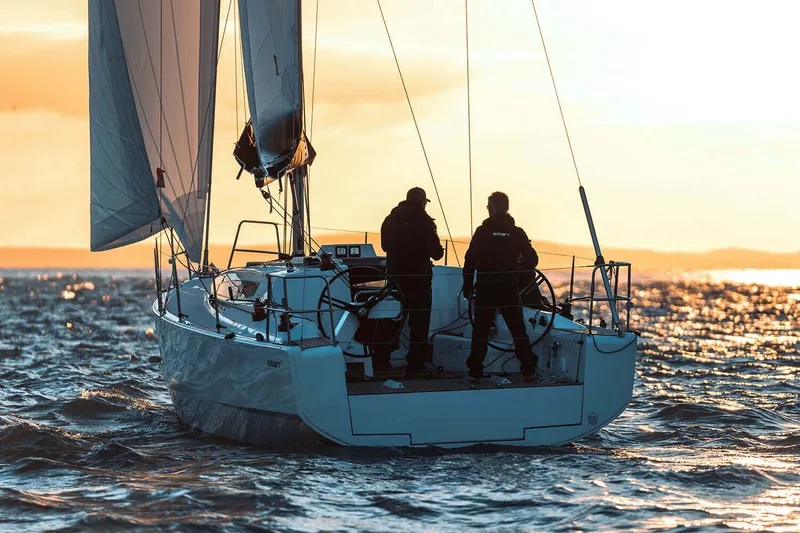

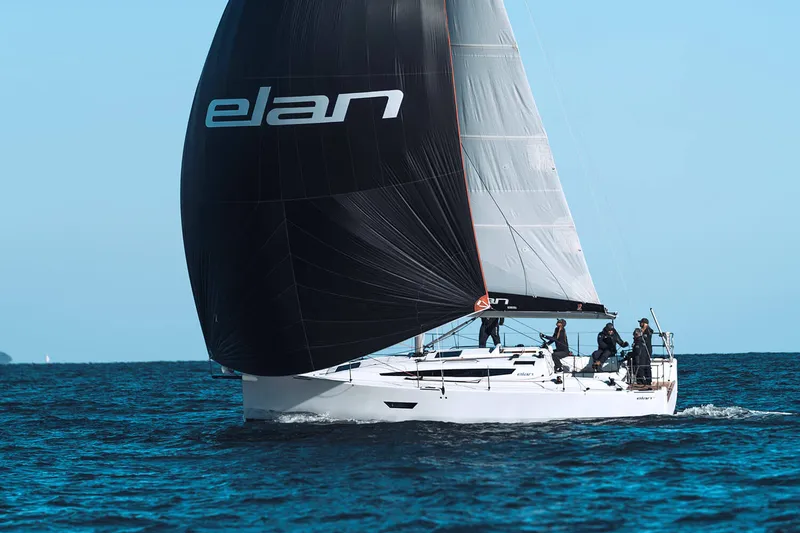

The sail plan consists of a mainsail measuring 39.6 square metres and a jib measuring 34.6 square metres, with a gennaker measuring 128 square metres. The air draft is 17.60 metres.

The boat is classified as CE design category A.
