Hull length10.40 mFilter by hull length
Beam3.45 m
Draught1.95 m
Weight5,200 kgFilter by weight
Max. power21 hp
CE categoryA
About this boat
The Arcona 345 is the smallest model produced by the Swedish yard and measures 10.40 metres without a bowsprit, or 11.03 metres with one. The boat is a cruiser-racer: fast enough for club-level racing, whilst also being designed for family holidays.
Specifications
Dimensions and weight
- Hull length
- 10.40 m
- Length overall
- 10.40 m
- Beam
- 3.45 m
- Draught
- 1.95 m
- Air draft
- 17.70 m
- Weight
- 5,200 kg
Engine
- Max. power
- 21 hp
- Fuel tank
- 100 l
Hull and construction
- CE category
- A
- Hull material
- GRP
Accommodation
- Berths
- 4
Full description
Show full description

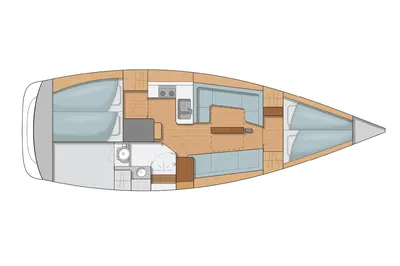

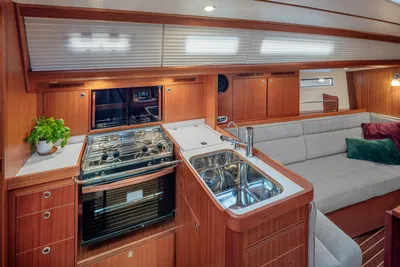

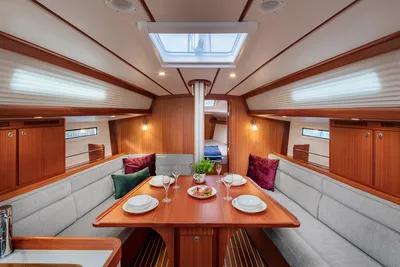

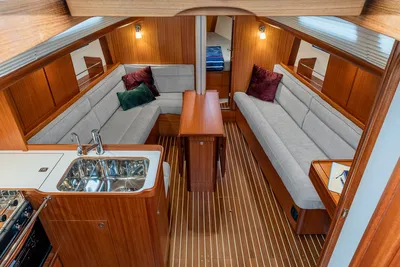

The hull has a waterline length of 9.80 metres, a beam of 3.45 metres and a displacement of 5,200 kilograms. The keel is a bulb keel made of hardened lead with a draught of 1.95 metres; a shallower version with a draught of 1.80 metres is also available. Below deck there are three cabins: a forward cabin with a double berth, an aft cabin with a spacious double berth and a saloon in which six people can dine.
The engine is a Yanmar 3YM20C with an SD25 saildrive, delivering 21 hp to the propeller. The fuel tank holds 100 litres and the water tank 130 litres, along with a 20-litre boiler and a holding tank of 50 litres.

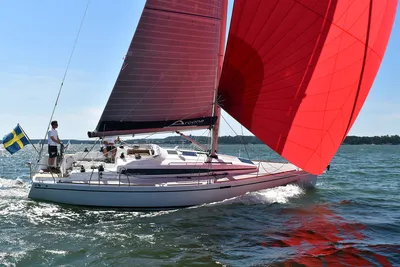

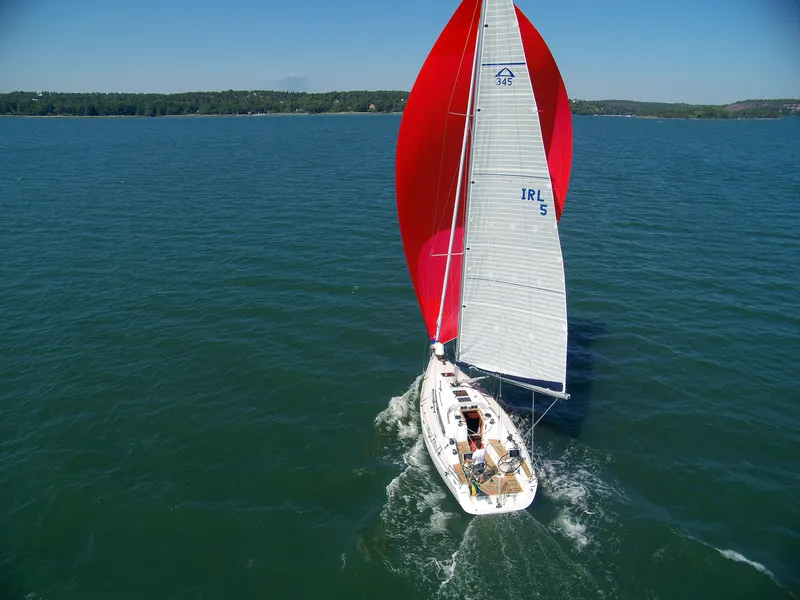

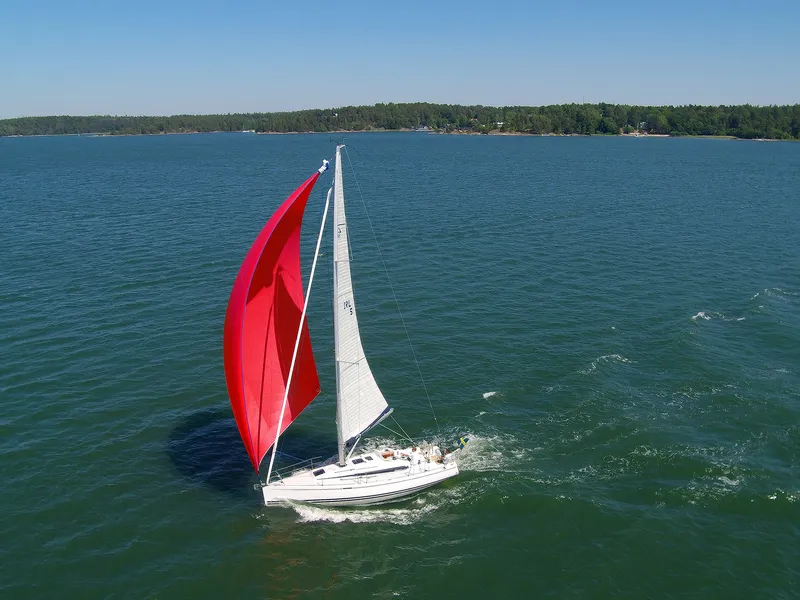

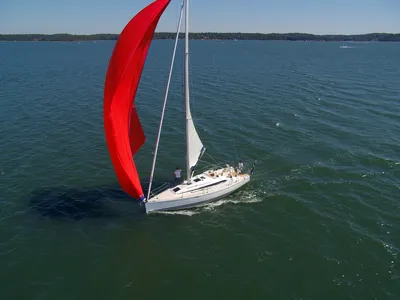

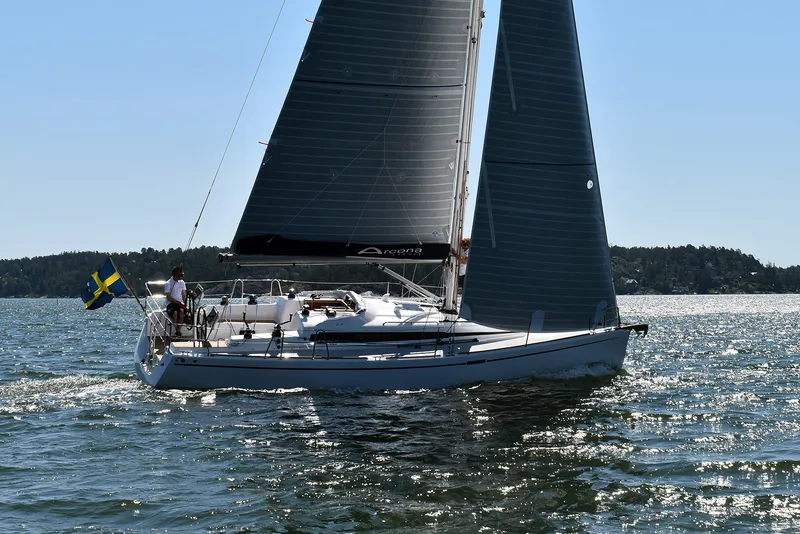

The sail plan consists of a mainsail measuring 41.1 square metres and a jib measuring 33.5 square metres. The spinnaker measures 120 square metres. The mast is a tapered mast with two spreaders; the mast height above the waterline is 17.70 metres. The boat comes with a tiller as standard, whilst a dual helm is optional.
The boat is classified as CE design category A.
Engines and power
Want to know which engine the base price includes or what a different engine costs? The builder or a dealer will be happy to help.
Similar boats
More cruising yachts →
from €334,000
from €248,958
from €254,100
Base price€275,000View at Arcona Yachts
