E5

Name: Elan Yachts E5
Brand: Elan Yachts
Price: 362900 EUR

Cruising yachtsE Series rangeIn production

Hull length11.96 mFilter by hull length

Beam3.87 m

Draught2.40 m

Weight8,190 kgFilter by weight

Max. power40 hp

CE categoryA

About this boat

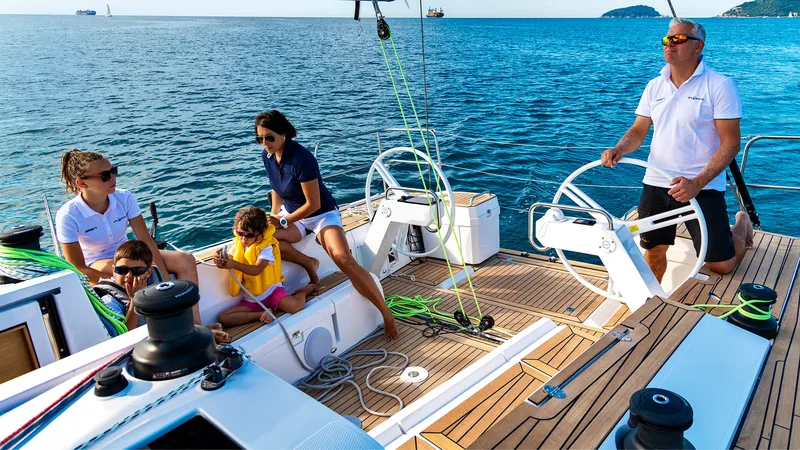

The Elan E5 is the mid-range model in the E-line and measures 11.96 metres, both overall and in hull length. The boat is aimed at sailors who are looking for speed whilst also wanting to go on holiday with their family. The waterline length is 11.26 metres, with a beam of 3.87 metres.

Specifications

Dimensions and weight

Hull length: 11.96 m
Length overall: 11.96 m
Beam: 3.87 m
Draught: 2.40 m
Air draft: 19.75 m
Weight: 8,190 kg

Engine

Max. power: 40 hp
Fuel tank: 132 l

Hull and construction

CE category: A
Hull material: GRP

Full description

Show full description

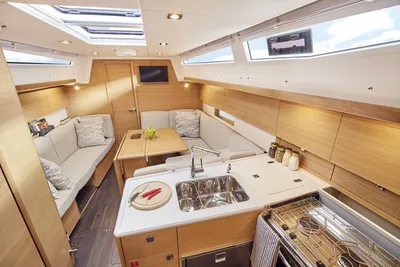

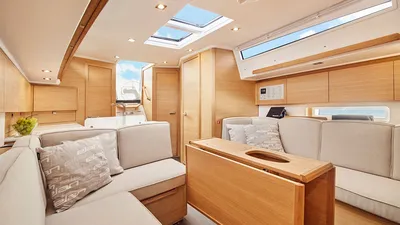

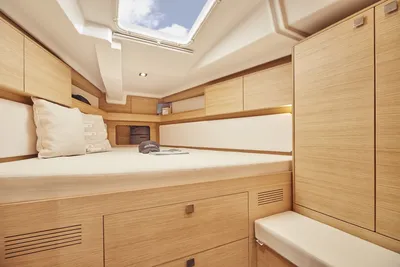

The standard keel gives a draught of 2.40 metres, with optional draughts of 2.20 metres and 1.95 metres. The light weight is 8,190 kilograms with 2,700 kilograms of ballast. The layout comprises three cabins with one or two bathrooms. The design is by Humphreys Yacht Design in collaboration with the yard’s design team.

The standard engine is a Yanmar 3JH40 with an output of 29.4 hp, or 40 hp. Alternatively, the yard offers an Oceanvolt electric propulsion system with an output of 10 hp or 15 hp. The fuel tank has a capacity of 132 litres and the water tank 277 litres.

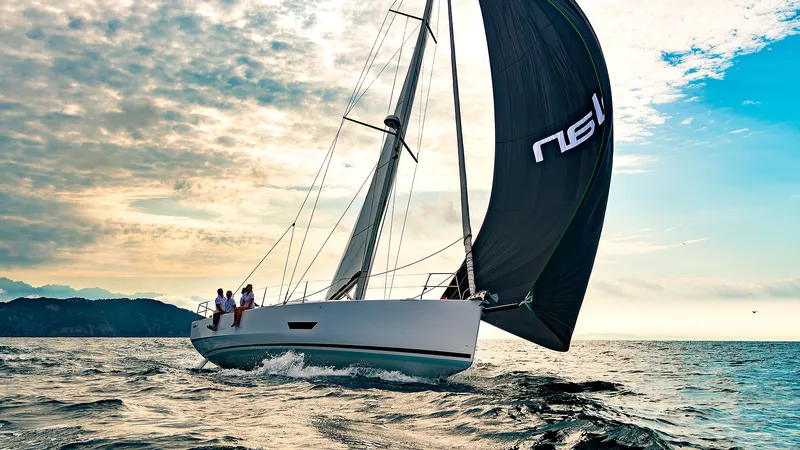

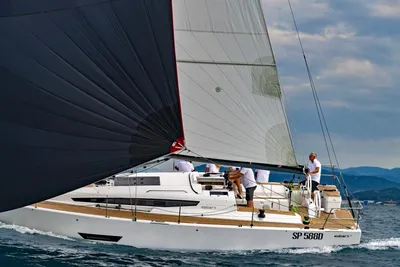

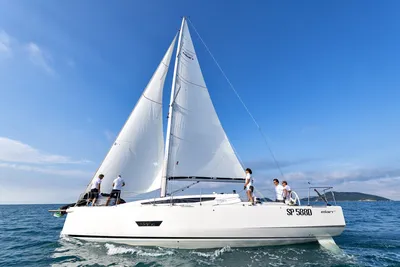

The sail plan consists of a mainsail measuring 52.16 square metres and a jib measuring 38.77 square metres, with a gennaker measuring 135 square metres. The air draft, including the antenna, is 19.75 metres.

The boat is classified as CE design category A.
