from €358,000
Hull length9.80 mFilter by hull length
Beam8.00 m
Draught0.55 m
Weight3,400 kgFilter by weight
Max. power21 hp
CE categoryA
About this boat

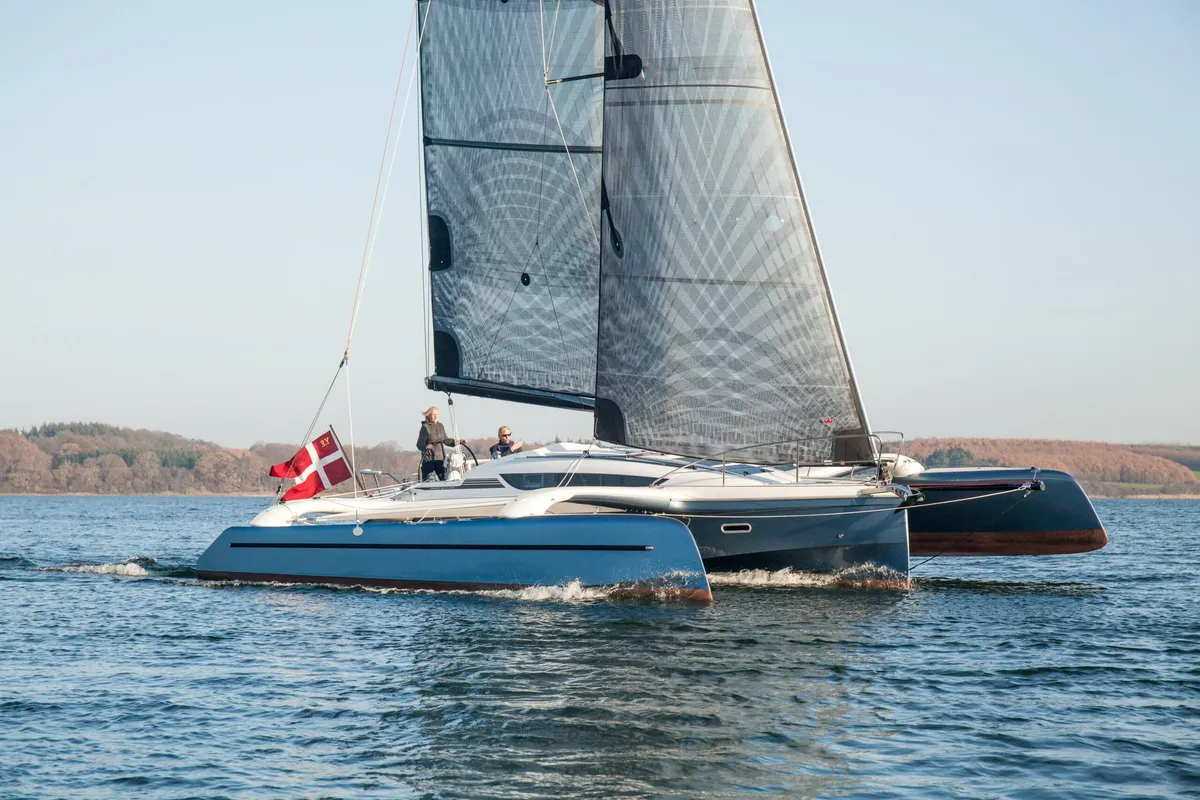

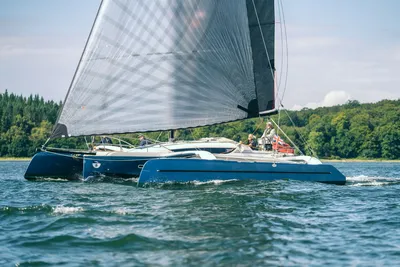

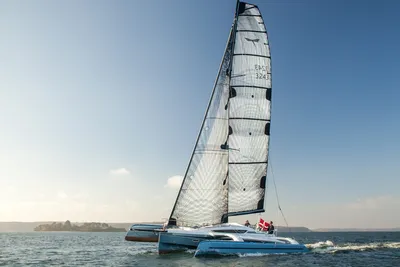

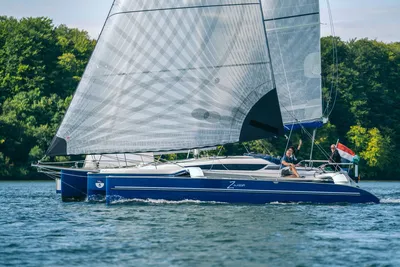

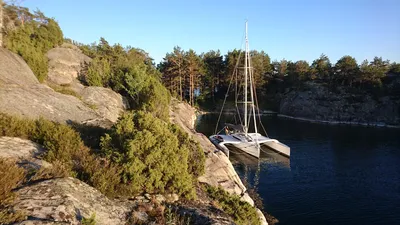

The Dragonfly 32 is a folding trimaran measuring almost ten metres in length, certified to CE design category A and therefore authorised to sail on the open sea. The boat is designed for families and couples who wish to combine speed with a fully-fledged living space on board. There are two versions: Touring and Evolution.
Specifications
Dimensions and weight
- Hull length
- 9.80 m
- Beam
- 8.00 m
- Draught
- 0.55 m
- Weight
- 3,400 kg
- Max. persons
- 7
Engine and power
- Max. power
- 21 hp
- Fuel tank
- 70 l
Hull and construction
- CE category
- A
- Hull material
- GRP
Accommodation
- Berths
- 6
Full description
Show full description

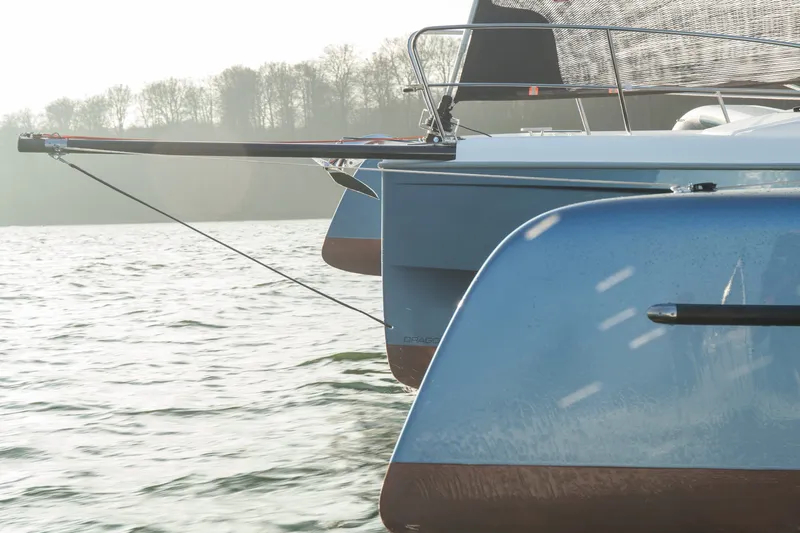

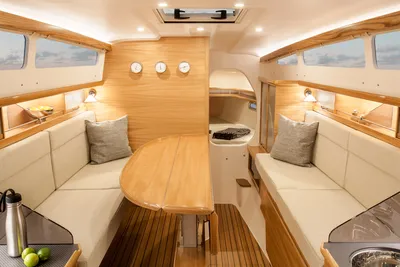

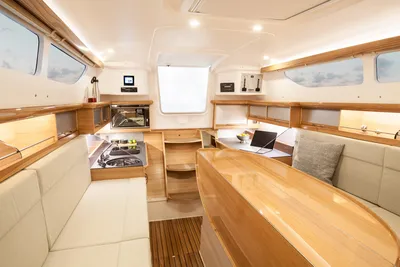

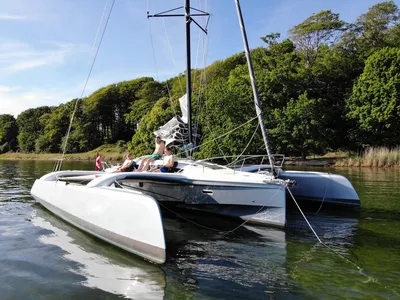

The floats fold alongside the central hull using the Swing Wing system. When afloat, the boat is 8.00 m wide (Touring) or 8.25 m (Evolution); when folded, it is 3.60 m and 3.85 m respectively. With the centreboard raised, the draught is 0.55 m; when lowered, it is 1.90 m. The main cabin has a headroom of 1.93 m and the toilet area 1.87 m; there is sleeping accommodation for six people.
The boat has a dry weight of 3,400 kg in the Touring version and 3,450 kg in the Evolution version. It comes fitted as standard with a 21 hp (15.3 kW) engine, fuelled by a 70-litre fuel tank. The water tank has a capacity of 120 litres. The yard states a top speed of over 23 knots.

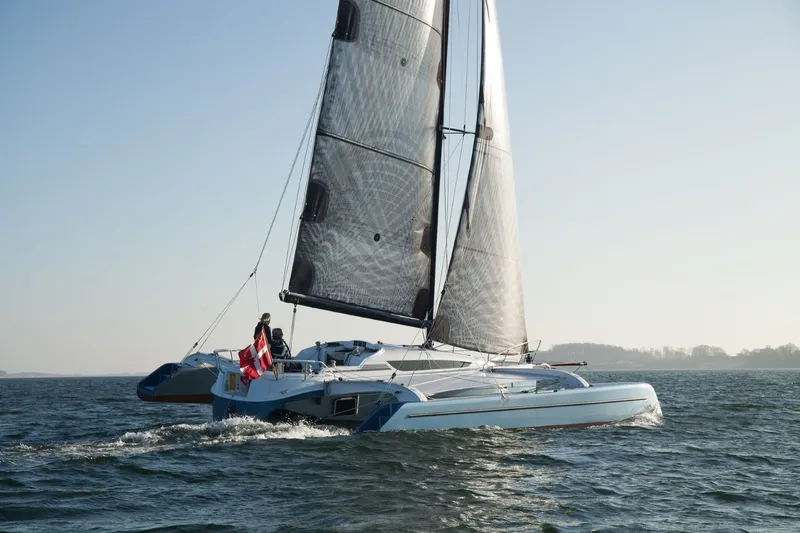

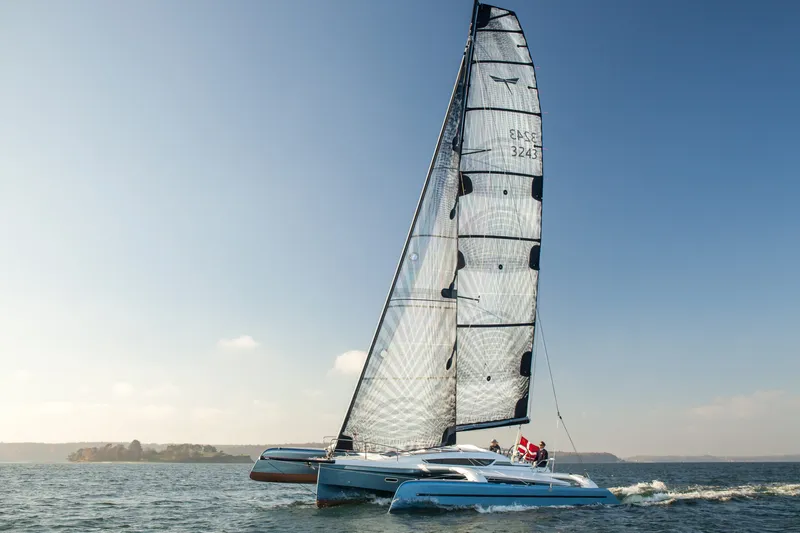

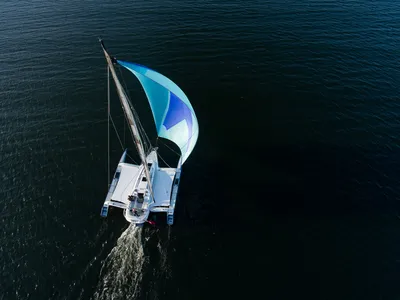

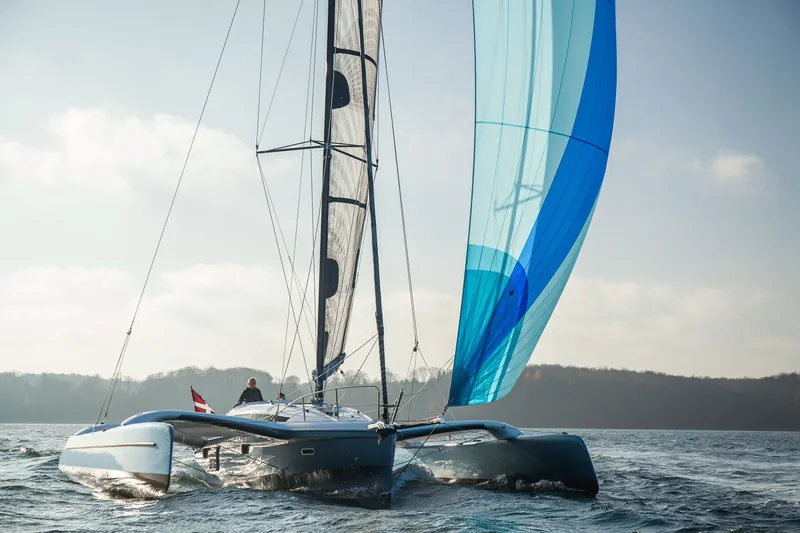

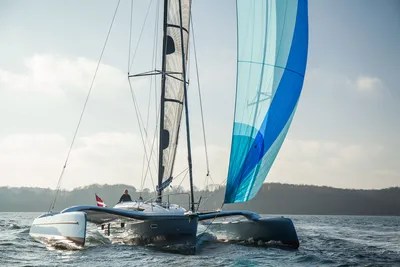

The Touring has a mast 14.70 m above deck, with a 48 m² mainsail and a 26 m² furling genoa. The Evolution has a 16.70 m mast, a 58 m² mainsail and a 29 m² genoa. The asymmetrical spinnaker measures 95 and 110 m² respectively.
The boat is unsinkable. It is certified as Category A for five people and Category B for seven people.
