About this boat

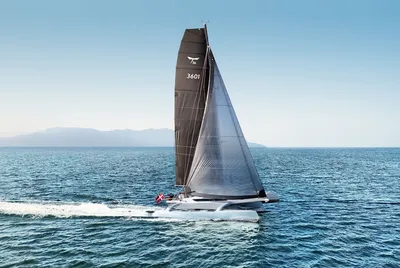

The Dragonfly 36 is an 11.55-metre folding trimaran designed for CE design category A. The boat is aimed at sailors who undertake longer voyages with their family or a small group and wish to combine speed with comfort.
Specifications
Dimensions and weight
- Hull length
- 11.55 m
- Beam
- 8.12 m
- Draught
- 0.67 m
- Weight
- 4,500 kg
- Max. persons
- 7
Engine and power
- Max. power
- 40 hp
- Fuel tank
- 70 l
Hull and construction
- CE category
- A
- Hull material
- GRP
Full description
Show full description

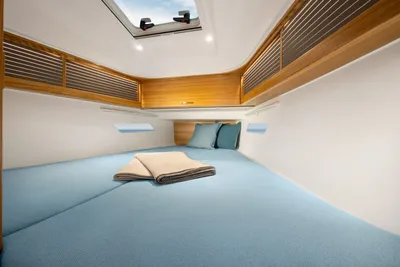

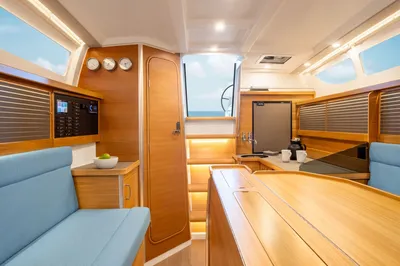

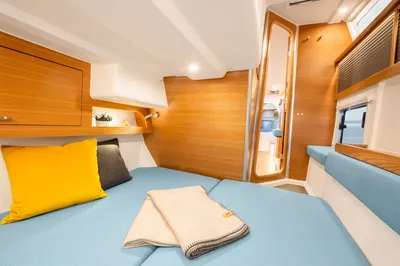

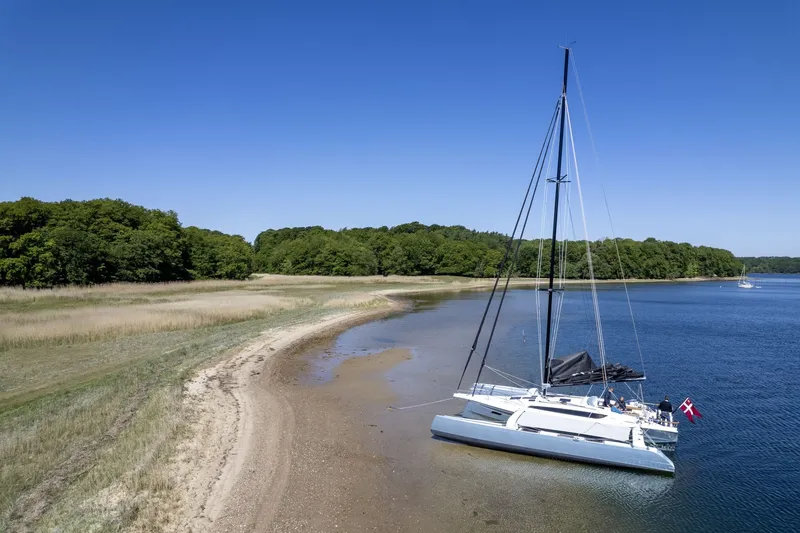

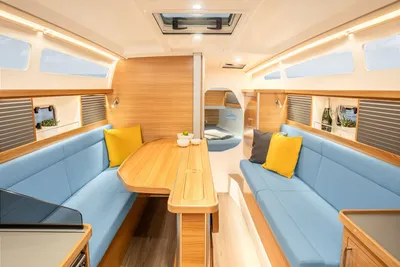

With the Swing Wing system, the beam is reduced from 8.12 m to 3.70 m in port; when folded, the overall length is 13.43 m. The waterline length of the centre hull is 10.90 m. The centreboard provides a draught of 0.67 m when raised and 2.00 m when lowered. The main cabin has a headroom of 1.99 m, and the yard states that the vessel can accommodate between five and seven people.
The boat weighs 4,500 kg when dry and ready to sail, with a maximum weight of 6,700 kg including crew. A 30 hp (21.3 kW) engine is fitted as standard, with an 40 pk (29.4 kW) engine. The fuel tank holds 70 litres, the water tank 200 litres and the holding tank 80 litres. The yard quotes a top speed of over 23 knots.

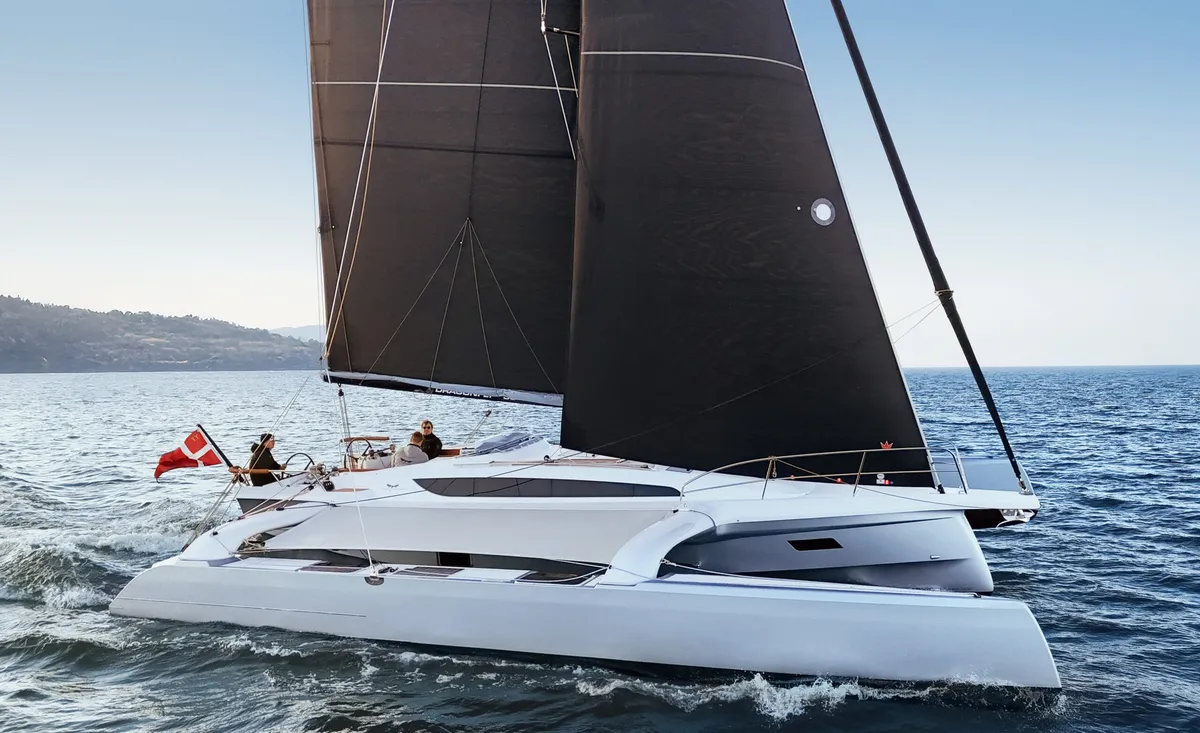

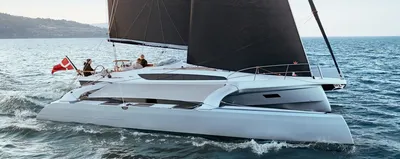

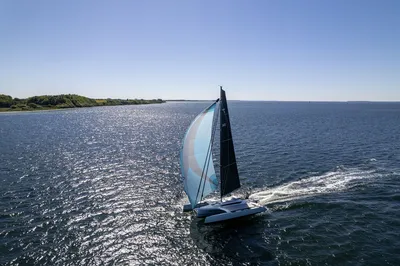

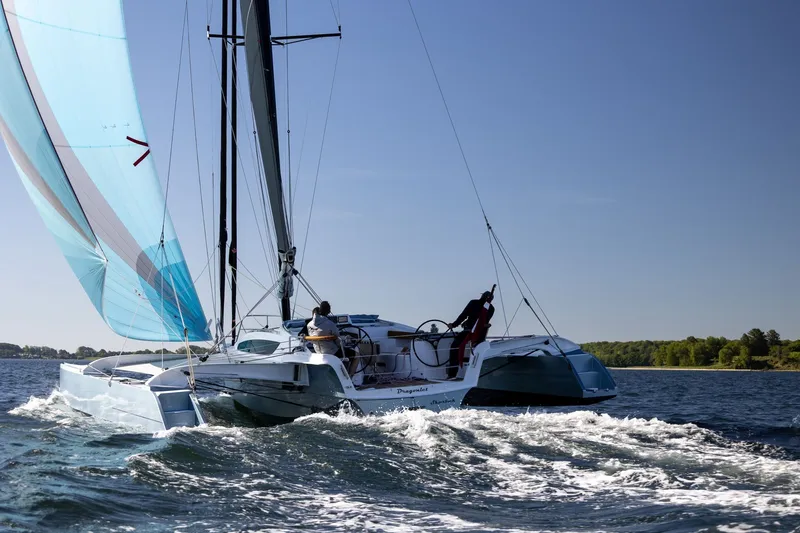

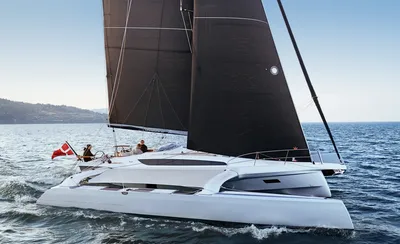

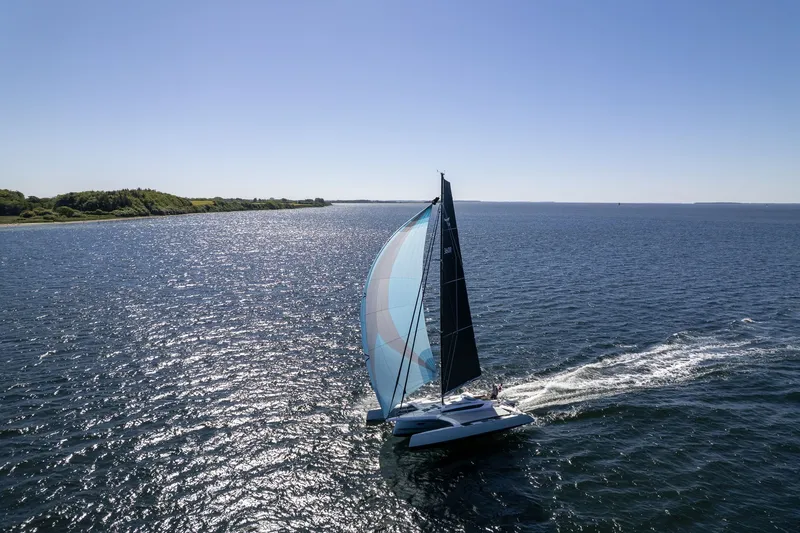

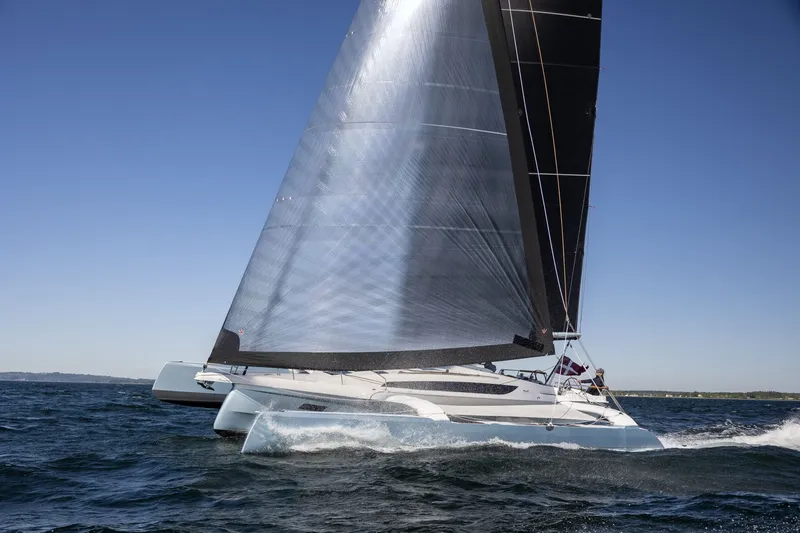

The carbon mast measures 16.50 m on the Touring and 18.50 m on the Performance. The Touring carries a 61 m² mainsail with a 29 m² furling jib or a 32,5 m² furling genoa; the Performance carries a 73 m² mainsail with a 30 m² furling jib or a 37 m² genoa. The Code Zero measures 55 or 67 m², and the asymmetric spinnaker 125 or 145 m².
The boat is unsinkable. It is certified as Category A for five people and Category B for seven people.
