from €85,440
Hull length7.65 mFilter by hull length
Beam5.80 m
Draught0.35 m
Weight1,150 kgFilter by weight
Max. power6 hp
CE categoryC
About this boat

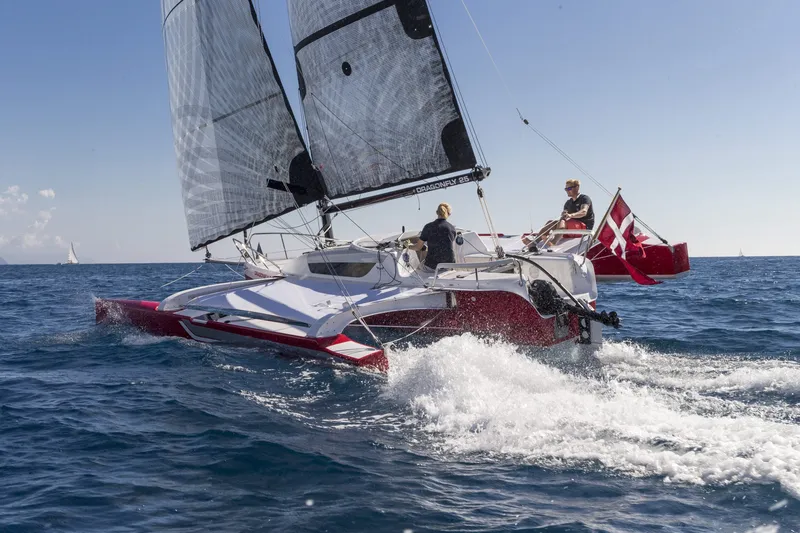

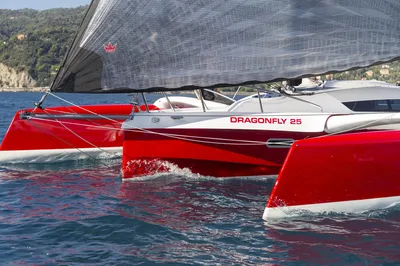

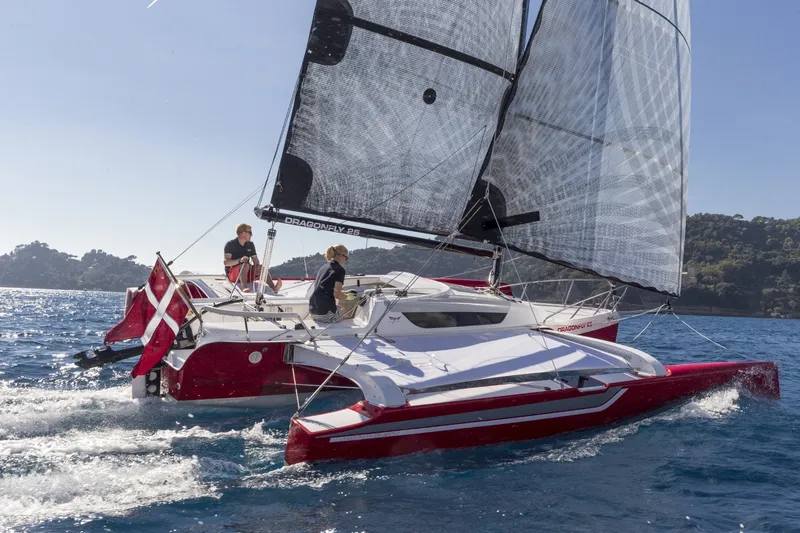

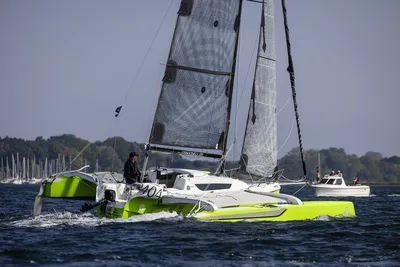

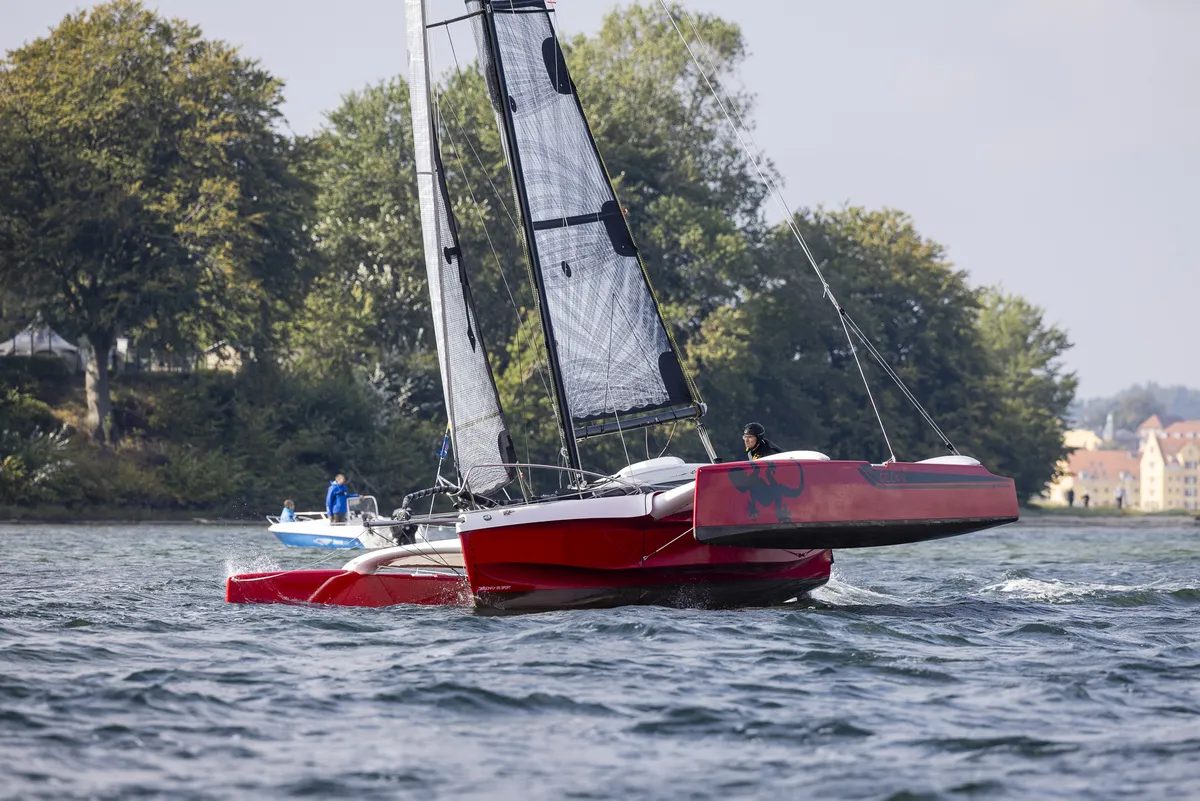

The Dragonfly 25 is the smallest folding trimaran from the Danish yard Quorning Boats and is designed for sailors who want to sail fast and take the boat home or to another sailing area on a trailer. The boat is designed so that a single person on board can handle it.
Specifications
Dimensions and weight
- Hull length
- 7.65 m
- Beam
- 5.80 m
- Draught
- 0.35 m
- Weight
- 1,150 kg
- Max. persons
- 6
Engine
- Max. power
- 6 hp
Hull and construction
- CE category
- C
- Hull material
- Aluminium
Full description
Show full description

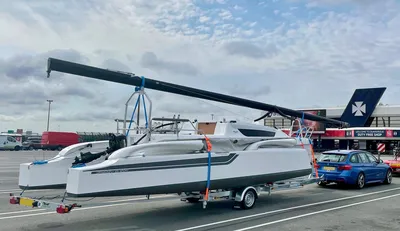

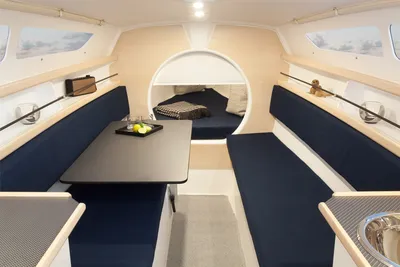

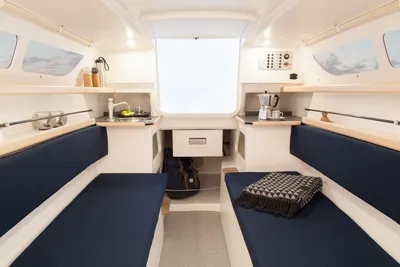

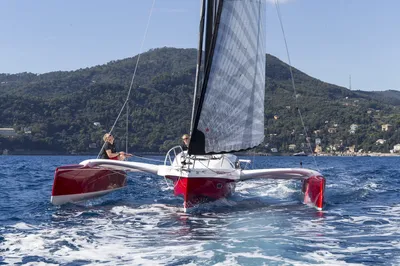

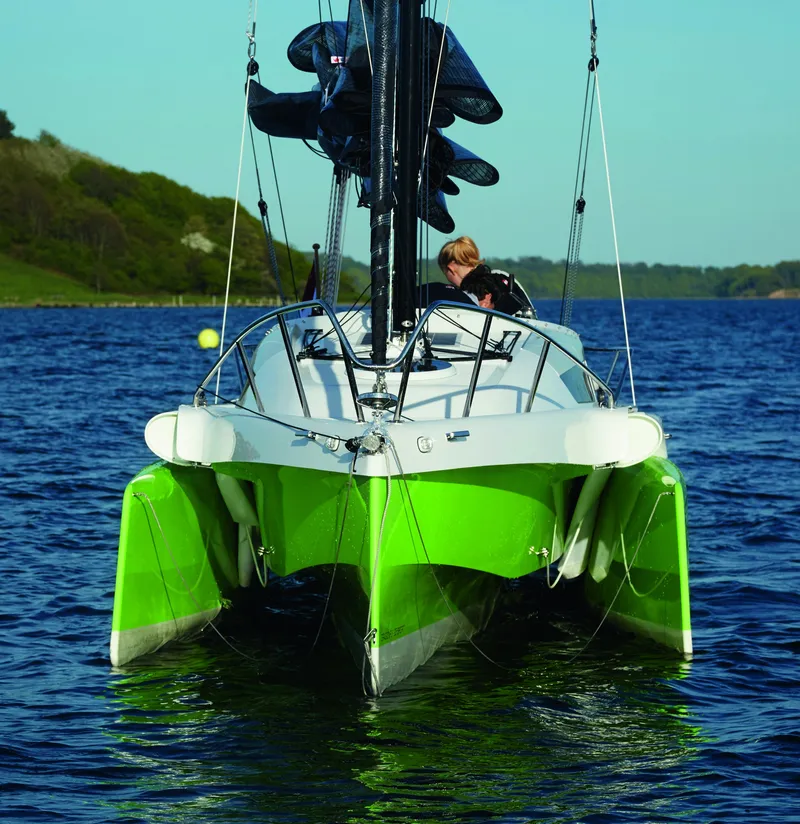

The Swing Wing system folds the two floats alongside the central hull. When sailing, the boat is 5.80 m wide; when folded, it is 2.30 m wide, which is the same as the trailer width and falls within the standard road width. With the centreboard and rudder stowed, the draught is 0.35 m; when lowered, it is 1.50 m. Below deck there are two small cabins with sleeping space for three adults or two adults and two children.
The boat weighs 1,150 kg ready to sail and 1,800 kg with the trailer. It is powered by a 6 hp outboard engine. The yard states a top speed of over 21 knots. According to the yard, it can be assembled and launched within half an hour.

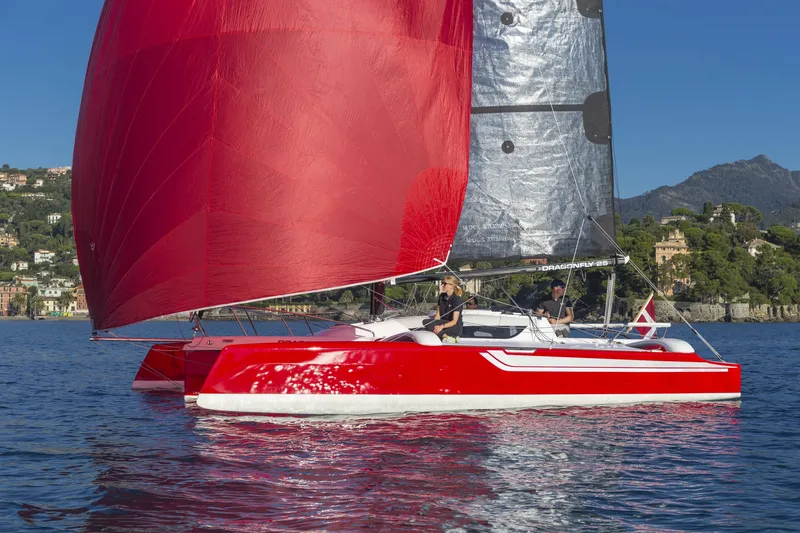

The Touring has a 10.60 m aluminium mast with a 24 m² mainsail and a 10.5 m² furling jib. The Sport has an 11.90-metre carbon mast with a 29 m² mainsail and a 12 m² furling jib. Both are available with a Code Zero – measuring 28 and 32 m² respectively – and an asymmetrical spinnaker of 46 or 61 m². The bowsprit measures 1.40.
The boat is unsinkable. It has CE certification in design category C for four people and design category D for six people.
