Hull length12.25 mFilter by hull length
Beam3.80 m
Draught1.10 m
Weight9,600 kgFilter by weight
Max. power800 hp
CE categoryB
About this boat

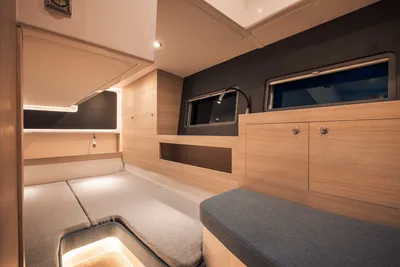

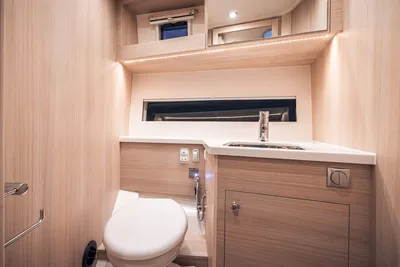

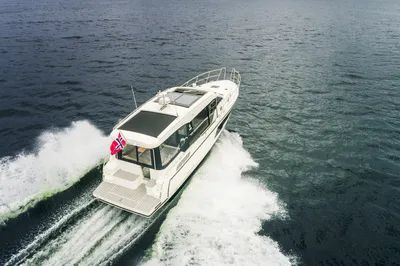

The Viknes S40 Panorama is the yard’s largest boat and is marketed as the ultimate family cruiser. The vessel has three cabins, a separate bathroom and a separate shower room.
Specifications
Dimensions and weight
- Hull length
- 12.25 m
- Length overall
- 12.25 m
- Beam
- 3.80 m
- Draught
- 1.10 m
- Air draft
- 3.65 m
- Weight
- 9,600 kg
- Max. persons
- 12
Engine
- Max. power
- 800 hp
- Number of engines
- 2
- Max. power per engine
- 400 hp
- Fuel tank
- 900 l
Hull and construction
- CE category
- B
- Hull material
- GRP
Full description
Show full description

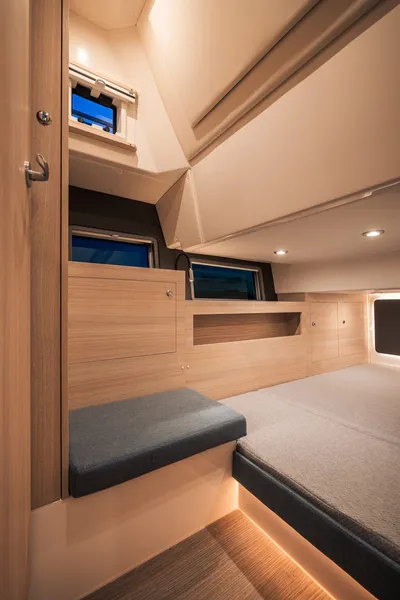

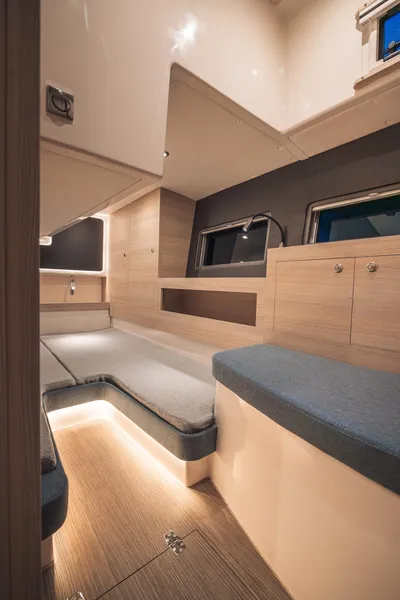

The saloon is light and open and flows seamlessly into the aft deck via a sliding door and retractable windows, so that, in practice, the interior and exterior become a single space. The vessel measures 12.25 metres by 3.8, has a draught of 1.10 at maximum load and weighs 9,600 kilograms when empty. The air draft is 3.65 metres without the mast and 4.80 metres with the mast. There are six berths, spread across three cabins.
Unlike the smaller models, the S40 is available with two engine options. The yard offers either two Yanmar 8LV 370 engines with sterndrive or V-drive, delivering a combined 740 hp, or two Yanmar 6LY 400 engines with V-drive, delivering a combined 800 hp. The fuel tank has a capacity of 900 litres.
The fresh water tank has a capacity of 400 litres, the boiler 50 litres and the holding tank 155 litres. Viknes certifies the vessel in CE design category B for twelve people on board. No price is listed on the website.
Engines and power
The builder offers the S40 Panorama with two inboard engines, in two versions.
Yanmar8LV3702 × 365 hp = 730 hp2 × 365 hp · dieselDiesel · inboard · 8 cylinders · 4.5 lView the 8LV370 →
Yanmar6LY4002 × 400 hp = 800 hp2 × 400 hp · dieselDiesel · shaft drive / Jet drive · 6 cylinders · 5.8 lView the 6LY400 →Want to know which engine the base price includes or what a different engine costs? The builder or a dealer will be happy to help.
