from €447,500
Hull length10.99 mFilter by hull length
Beam3.60 m
Draught2.75 m
Weight2,720 kgFilter by weight
Max. power14 hp
CE categoryB
About this boat

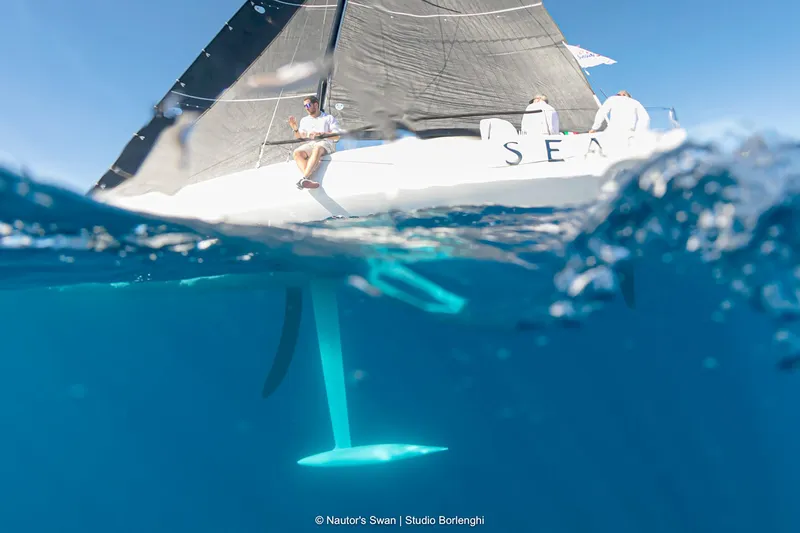

The ClubSwan 36 is a fast one-design racer from Nautor Swan, designed by Juan Kouyoumdjian. The name refers to the first Swan 36 from 1967. The design was developed using CFD studies and features a C-foil.
Specifications
Dimensions and weight
- Hull length
- 10.99 m
- Length overall
- 10.99 m
- Beam
- 3.60 m
- Draught
- 2.75 m
- Weight
- 2,720 kg
Engine and power
- Max. power
- 14 hp
- Fuel tank
- 50 l
Hull and construction
- CE category
- B
- Hull material
- GRP
Accommodation
- Berths
- 4
Full description
Show full description
The boat is 10.99 metres long, with a waterline length of 10.64 metres, a beam of 3.60 metres and a draught of 2.75 metres. Its measured displacement is 2,720 kilograms and its sailing displacement 3,390 kilograms, with 1,104 to 1,111 kilograms of ballast. The hull is carbon-reinforced.
There are two engines: a 10.3 kW (14 hp) Nanni diesel or a 10 kW Torqeedo electric motor with BMW batteries. The fuel tank holds 50 litres. The jib measures up to 33.5 m², the mainsail 59 m² and the asymmetrical spinnaker 134 m².
With a diesel engine, the boat falls into CE design category B, and with an electric motor, into category C. Simpson Marine states that the crew consists of seven people, three of whom are professionals.

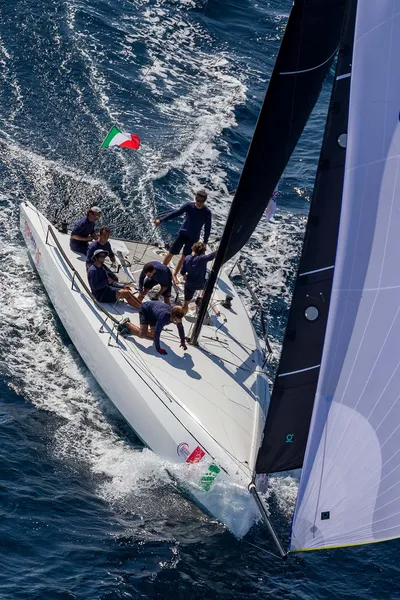

On deck, there are seven Harken winches on a tidy deck designed to enable the crew to work efficiently.
Engines and power
Want to know which engine the base price includes or what a different engine costs? The builder or a dealer will be happy to help.
