415

Name: Arcona Yachts 415
Brand: Arcona Yachts
Price: 475000 EUR

Cruising yachts

Hull length12.20 mFilter by hull length

Beam3.90 m

Draught2.00 m

Weight8,370 kgFilter by weight

CE categoryA

About this boat

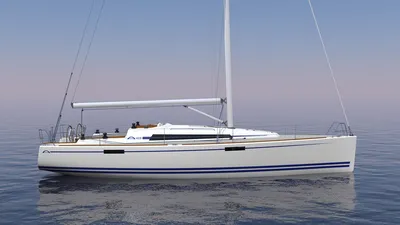

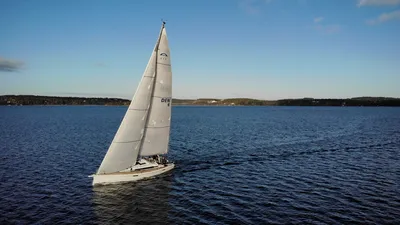

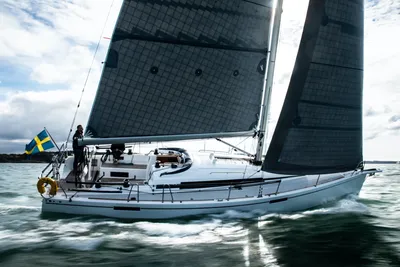

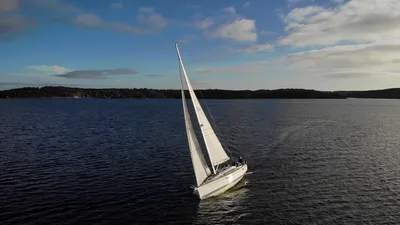

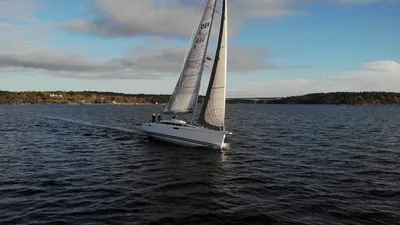

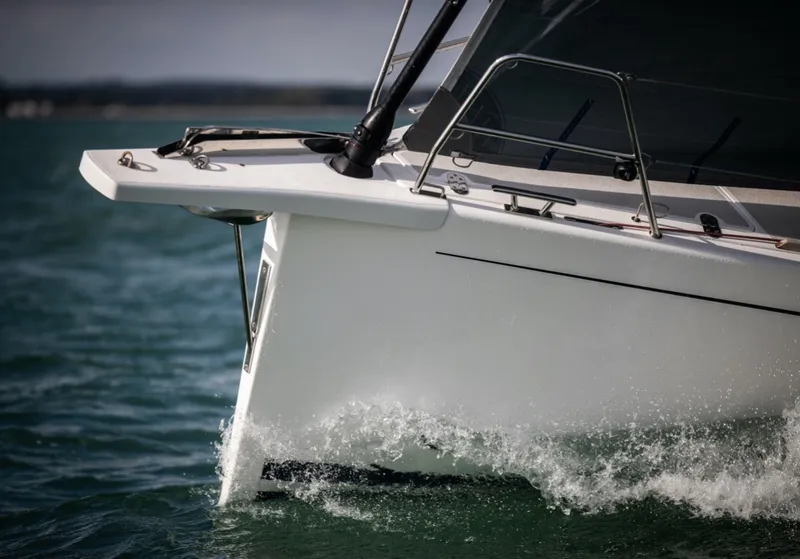

The Arcona 415 is a 12.20-metre cruiser-racer without a bowsprit, or 12.91 metres with one. It was designed by Stefan Qviberg and the yard’s design team. The boat is intended for sailors who are looking for speed whilst also wishing to sail long distances.

Specifications

Dimensions and weight

Hull length: 12.20 m
Length overall: 12.91 m
Beam: 3.90 m
Draught: 2.00 m
Air draft: 19.80 m
Weight: 8,370 kg

Engine and power

Fuel tank: 222 l

Hull and construction

CE category: A
Hull material: GRP

Accommodation

Berths: 6

Full description

Show full description

The waterline length is 11.20 metres, with a beam of 3.90 metres and a displacement of 8,370 kilograms. There are three keel options: a shallow keel at 2.00 metres, a standard keel at 2.20 metres and a racing keel at 2.50 s. For the interior, the yard offers a layout with three cabins and one bathroom, a layout with three cabins and two bathrooms, and a layout with two cabins and one bathroom featuring a spacious shower.

The standard engine is a Yanmar 3JH40C with an SD60 saildrive; a Yanmar 4JH45C with the same saildrive is available as an option. The fuel tank holds 222 litres, the water tank 230 litres, the boiler 25 litres and the holding tank 75 litres.

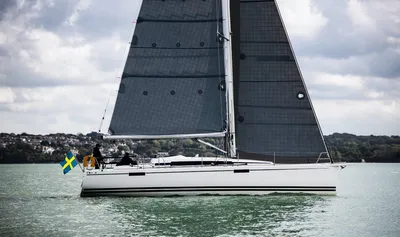

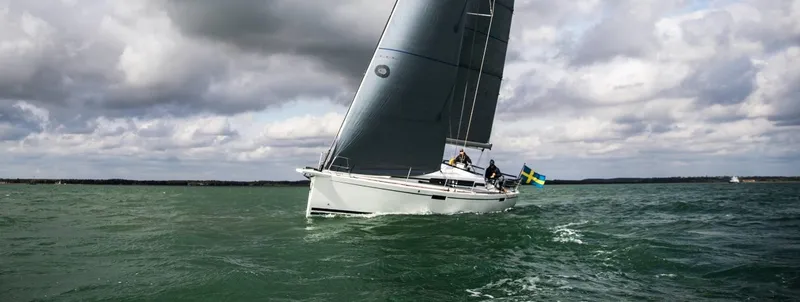

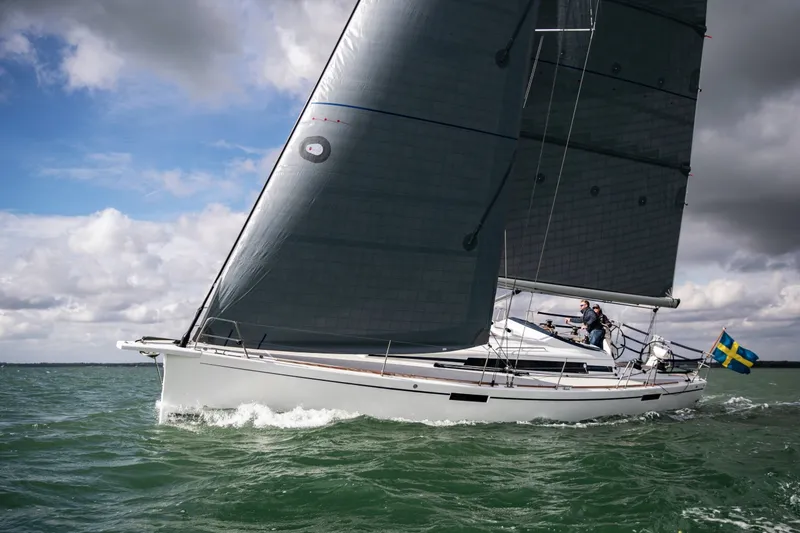

The sail plan consists of a mainsail measuring 57 square metres and a jib measuring 45 square metres, along with a spinnaker measuring 148 square metres and a gennaker measuring 132 square metres. The mast height above the waterline is 19.80 metres, measured excluding antennas and instruments.

The boat is classified as CE design category A.
