from €953,000
Hull length15.90 mFilter by hull length
Beam8.20 m
Draught1.50 m
Weight18,600 kgFilter by weight
Max. power120 hp
About this boat
The Garcia Explocat 52 is the twin-hull version of the Exploration concept. The catamaran combines the deck area and living space of a multihull with the rigidity and safety of aluminium. Garcia calls it an all-terrain ocean vessel, built for remote regions and high latitudes.
Specifications
Dimensions and weight
- Hull length
- 15.90 m
- Length overall
- 16.95 m
- Beam
- 8.20 m
- Draught
- 1.50 m
- Air draft
- 24.60 m
- Weight
- 18,600 kg
Engine and power
- Max. power
- 120 hp
- Number of engines
- 2
- Max. power per engine
- 60 hp
- Fuel tank
- 1,100 l
Hull and construction
- Hull material
- Aluminium
Full description
Show full description

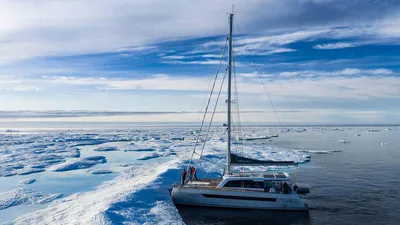

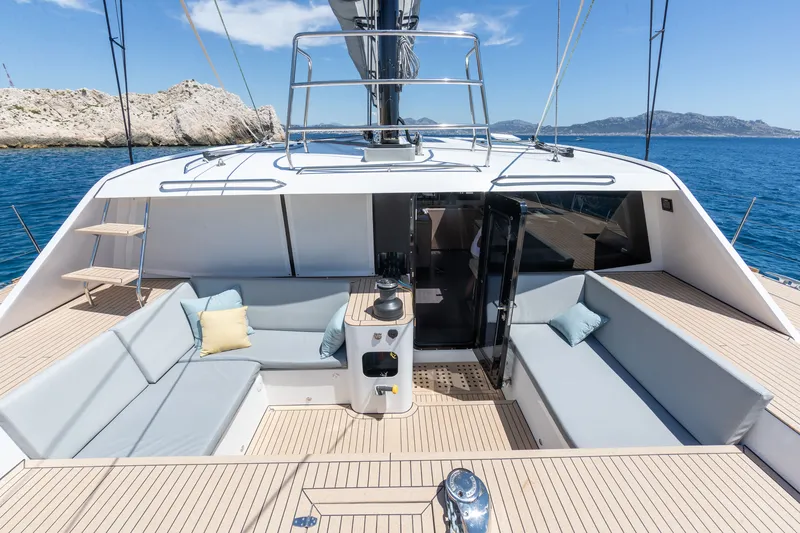

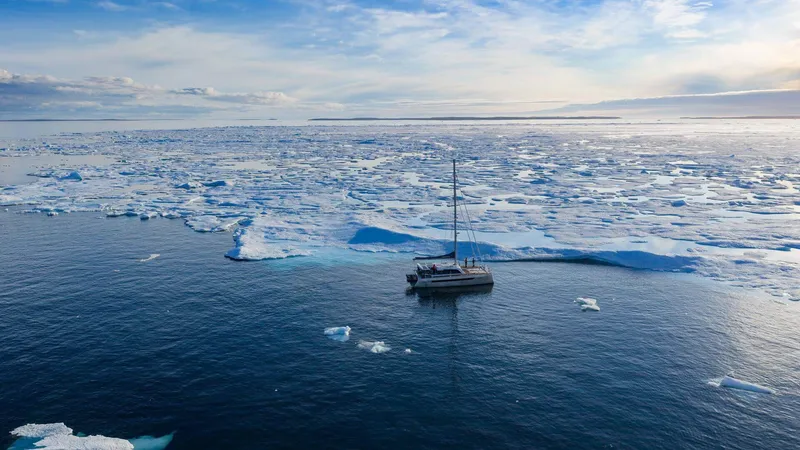

The bridgedeck sits approximately 85 cm above the waterline, which according to the yard reduces slamming from beam seas. The pendulum steering wheel can be used in a low, sheltered position or a high position in fine weather. Most of the controls are at the starboard aft, out of the spray. A forward cockpit behind a watertight door serves as a lookout post in ice.
The saloon on the bridgedeck offers 360-degree visibility from the chart table, seating area and galley. There are three layouts: an owner's version, an owner-guest version and a family version with four cabins and four bathrooms. The sail locker can be fitted out as a workshop, storage space or skipper's cabin. Interior: Darnet Design.
The hulls are made of 5 to 12 mm aluminium, designed to deform rather than tear in a collision, with watertight bulkheads and 74 mm insulation. The saildrives are protected by aluminium fins and the rudders have a flexible composite upper section. The boat can dry out for maintenance.

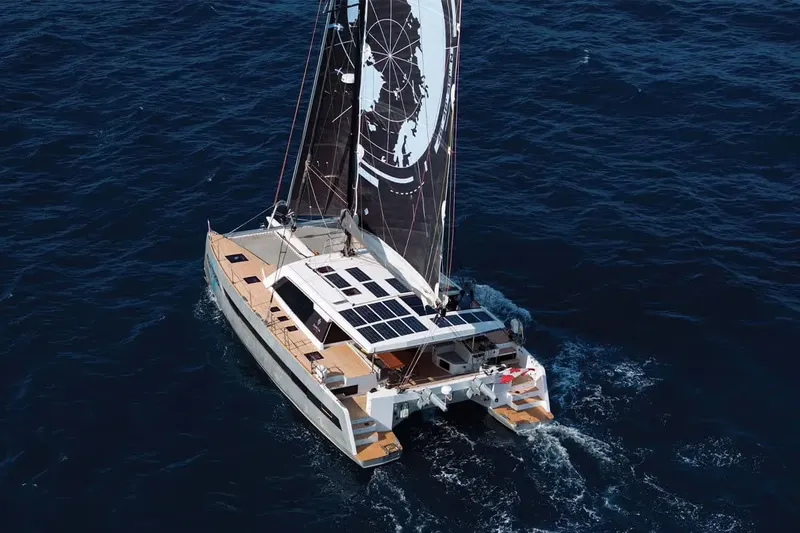

Two 60 hp engines provide propulsion, supplemented by diesel heating and power from a hydrogenerator, solar panels and a generator. Key dimensions: length overall 16.95 m (hull 15.90 m), beam 8.20 m, draught 1.50 m, displacement 18.6 tonnes and 170 m² of sail upwind. The Explocat 52-2 offers a Haven-Deck or Sky-Deck.
