About this boat
Chaparral With the 270 OSX, it is redefining the benchmark for boating with an outboard engine. The model combines contemporary styling with refined performance. The helm features a glass instrument panel with twin Simrad screens for navigation and engine management.
Specifications
Dimensions and weight
- Hull length
- 8.23 m
- Length overall
- 8.23 m
- Beam
- 2.59 m
- Draught
- 0.48 m
- Air draft
- 1.60 m
- Weight
- 2,087 kg
- Max. persons
- 14
Engine and power
- Max. power
- 355 hp
- Fuel tank
- 246 l
Hull and construction
- Hull material
- GRP
Full description
Show full description

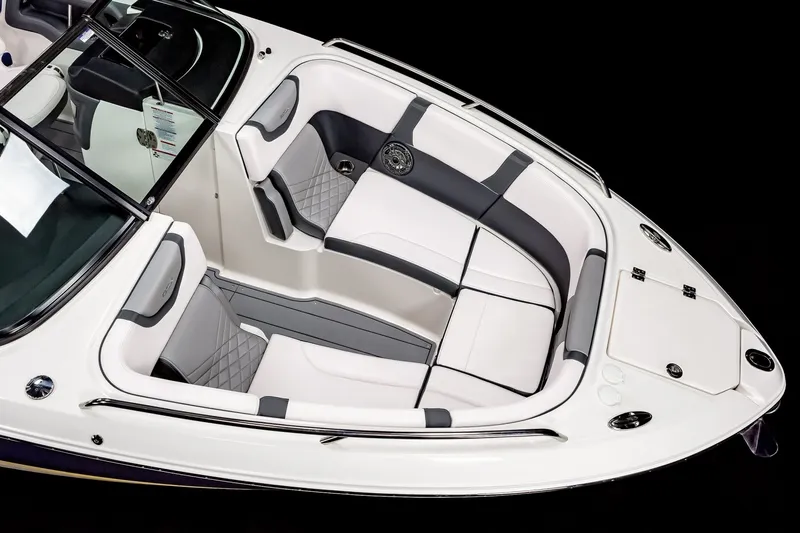

The cockpit is open and comfortably laid out, with a multi-position sunbed at the rear, and this open layout extends right up to the bow, featuring hinged storage compartments beneath high-quality upholstery. A JL Audio package is available as an option, comprising six speakers, a 10-inch subwoofer and a six-channel amplifier.
The hull length is 8.23 metres and the beam is 2.59 metres. The dry weight is approximately 2,087 kilograms. The draught is 0.48 m (propulsion raised). The air draft is 1.60 m, with a draught of 2.62 m. All measurements have been converted to the metric system based on the yard’s specifications.
The yard states a maximum power output of 355 hp. The boat is available with an outboard engine of up to approximately 355 hp. At the helm, there are two 7-inch Simrad touchscreens linked via NMEA, with a gauge layout that can be customised as required. The hull is made of fibreglass, as is customary for this builder.
The fuel tank holds 246.05 litres. There is 37.85 litres available for drinking water. The NMMA capacity is 14 people. The deadrise at the transom is 22 degrees. The upholstery on all 2026 models is made from SiO silicone material, which, according to the yard, is virtually maintenance-free and highly resistant to scratches and abrasion. Each hull comes with a lifetime limited warranty, whilst components are covered by a five-year limited warranty.
