Hull length7.01 mFilter by hull length
Beam2.54 m
Draught0.74 m
Weight2,282 kgFilter by weight
Max. power440 hp
About this boat

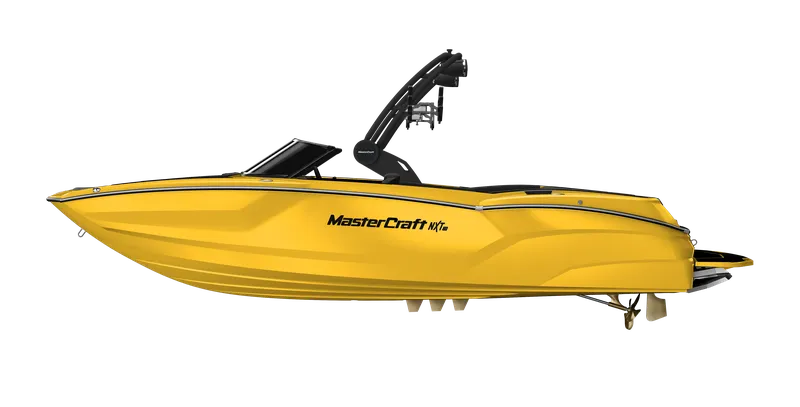

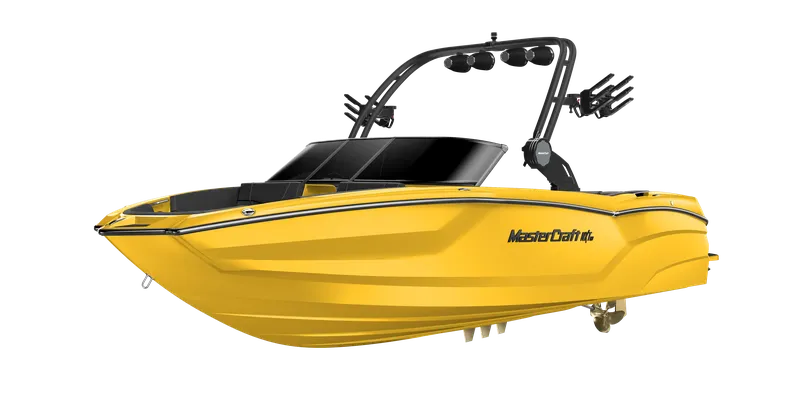

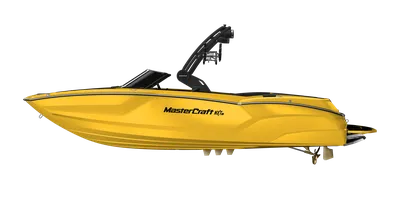

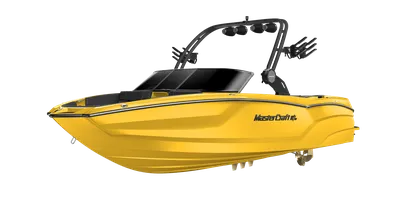

The NXT23 is sized between the NXT22 and NXT24 and offers sixteen seats. The model is designed for those looking for space without the price tag of the X-series. The NXT23 measures 7.01 metres in length and is 2.54 metres wide, with a draught of 0.74 metres.
Specifications
Dimensions and weight
- Hull length
- 7.01 m
- Length overall
- 7.01 m
- Beam
- 2.54 m
- Draught
- 0.74 m
- Air draft
- 2.98 m
- Weight
- 2,282 kg
- Max. persons
- 16
Engine and power
- Max. power
- 440 hp
- Fuel tank
- 246 l
Hull and construction
- Hull material
- GRP
Full description
Show full description
The stated dry weight is 2,282 kg and the fuel tank holds 246 litres. The total height is 2.98 metres. The storage capacity is 2.80 m³.
Under the engine hatch is a V8 engine with power transmitted via a fixed propeller shaft. Available engine options: the Ilmor 5.3L GDI HO with 380 hp and the Ilmor 6.2L GDI with 440 hp. The ballast system can carry up to 1,420 kg of water to create the wake.
This states a maximum capacity of 16 people and a load capacity of 980 kg. Anyone registering the boat in Europe will coordinate the final CE documentation with the importer.

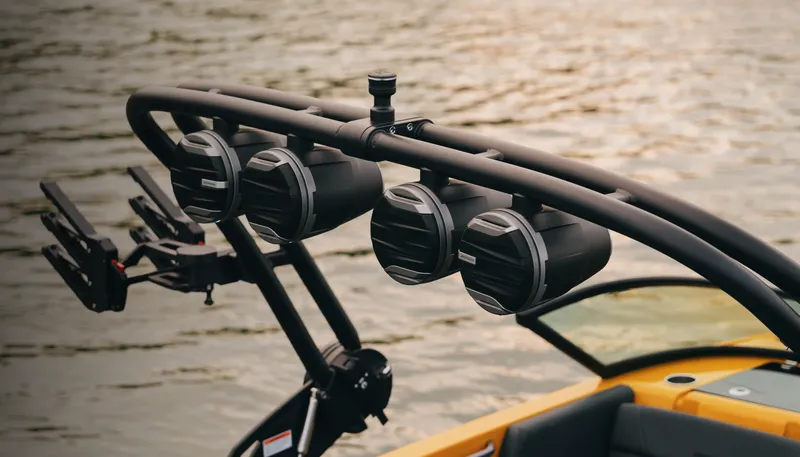

The NXT range is deliberately equipped more simply, featuring a compact tower, an intuitive touchscreen, an audio system and a ballast system that is filled from the helm. The design focuses on ease of use and low maintenance.
