from €58,900
Hull length6.10 mFilter by hull length
Beam2.44 m
Draught0.69 m
Weight1,798 kgFilter by weight
Max. power630 hp
About this boat

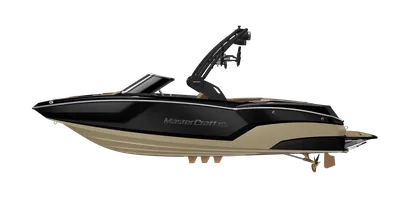

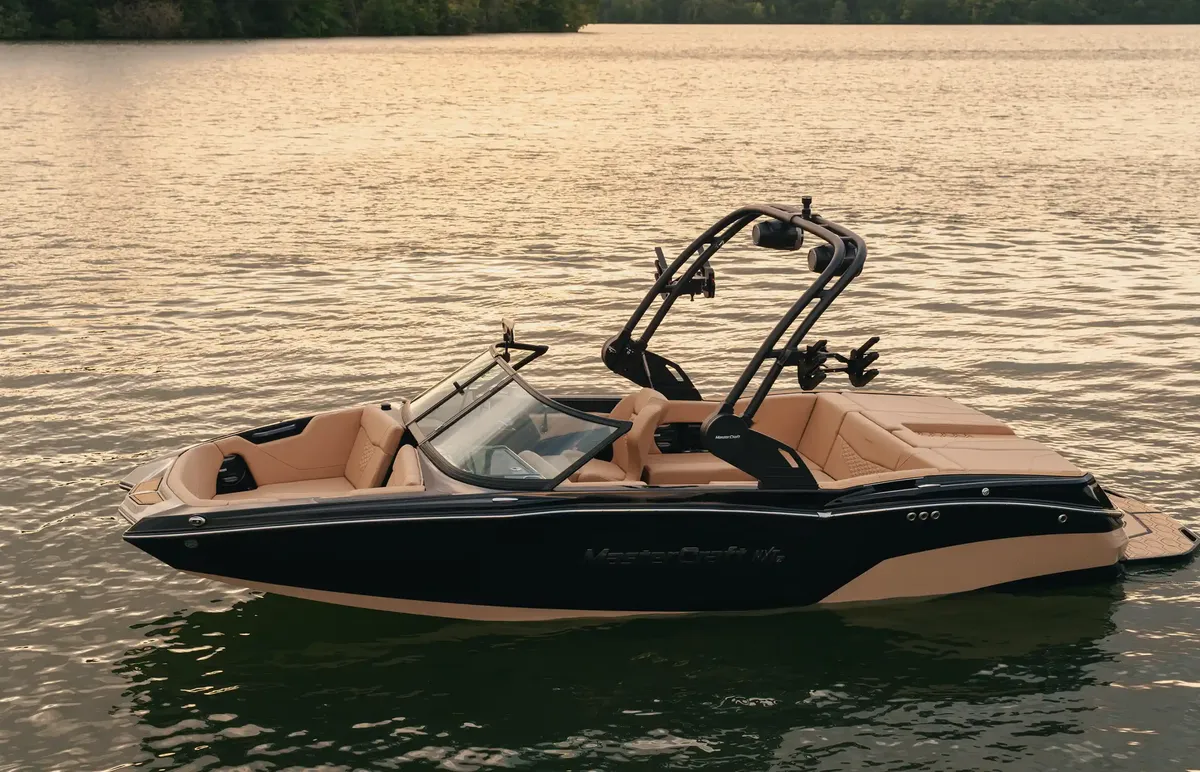

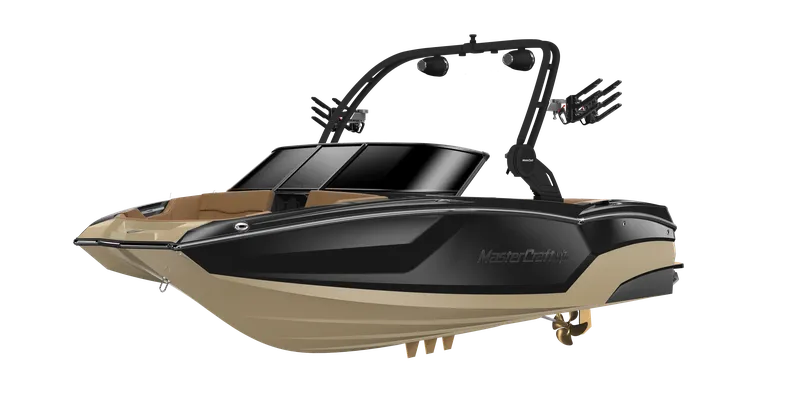

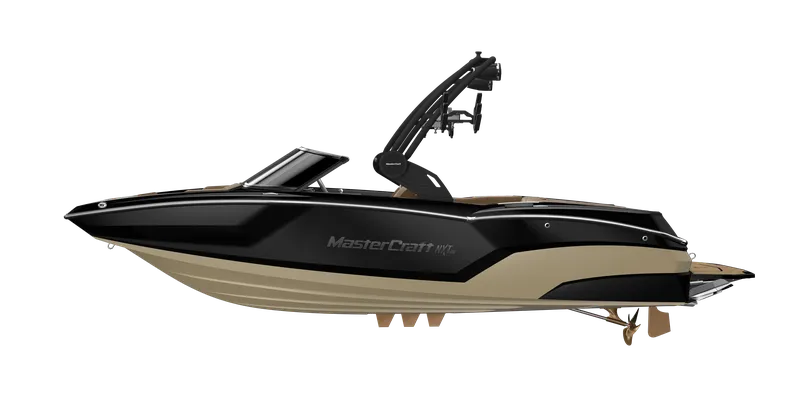

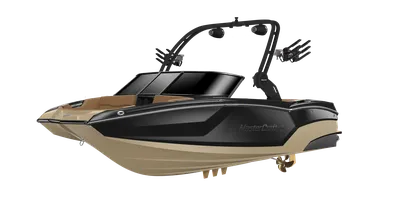

The NXT20 is the smallest and most affordable MasterCraft and is aimed at first-time wakeboat buyers. The hull is compact enough for smaller lakes and for trailer transport. The NXT20 has a hull length of 6.10 metres and is 2.44 metres wide, with a draught of 0.69 metres.
Specifications
Dimensions and weight
- Hull length
- 6.10 m
- Length overall
- 6.10 m
- Beam
- 2.44 m
- Draught
- 0.69 m
- Air draft
- 2.84 m
- Weight
- 1,798 kg
- Max. persons
- 11
Engine and power
- Max. power
- 630 hp
- Fuel tank
- 178 l
Hull and construction
- Hull material
- GRP
Full description
Show full description
The stated dry weight is 1,798 kg and the fuel tank holds 178 litres. The total height is 2.84 metres. The storage capacity is 2.32 m³.
Under the engine hatch lies a V8 engine with power transmitted via a fixed propeller shaft. Available engines: Ilmor 5.3L GDI HO with 380 hp, Ilmor 6.0L MPI with 373 hp, an Ilmor 6.2L GDI with 440 hp and the supercharged Ilmor 6.2L with 630 hp. The ballast system can carry up to 802 kg of water to create the wave.
This states a maximum of 11 people. Anyone registering the boat in Europe must coordinate the final CE documentation with the importer.
The NXT range is deliberately equipped more simply, featuring a compact tower, an intuitive touchscreen, an audio system and a ballast system that is filled from the helm. The design focuses on ease of use and low maintenance.
