50

Name: Arcona Yachts 50
Brand: Arcona Yachts
Price: 1000000 EUR

Cruising yachts

Hull length14.99 mFilter by hull length

Beam4.60 m

Draught2.20 m

Weight13,900 kgFilter by weight

Max. power100 hp

CE categoryA

About this boat

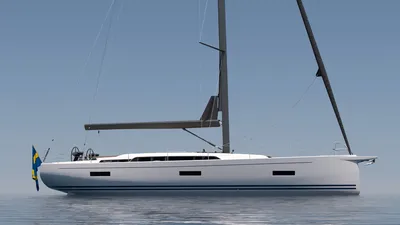

The Arcona 50 is the Swedish yard’s largest model, measuring 14.99 metres without a bowsprit, or 15.80 metres with the optional bowsprit. It was designed by Jeppesen and Pons. The boat is intended for owners who undertake long voyages with a small group.

Specifications

Dimensions and weight

Hull length: 14.99 m
Length overall: 15.80 m
Beam: 4.60 m
Draught: 2.20 m
Air draft: 24.07 m
Weight: 13,900 kg

Engine

Max. power: 100 hp
Fuel tank: 385 l

Hull and construction

CE category: A
Hull material: GRP

Accommodation

Berths: 6

Full description

Show full description

The waterline length is 13.98 metres, with a beam of 4.60 metres. The displacement is 13,900 kilograms for an empty boat without additional equipment. There are three keel positions: 2.2 metres (shallow), 2.5 metres (medium) and 2.95 metres (deep), with ballast weights of 6,100, 5,800 and 5,200 kilograms respectively.

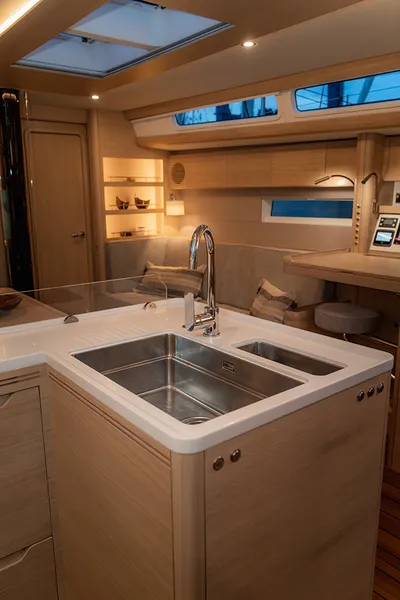

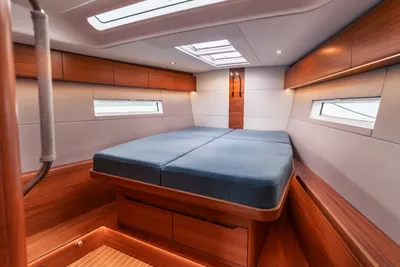

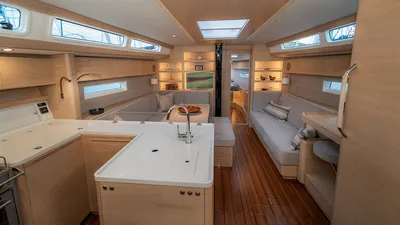

Below deck, there is an owner’s cabin with a king-size double berth and an en-suite bathroom with a separate shower, plus two aft cabins with double berths that can also be configured as two single berths.

The engine is a Yanmar 4JH80CR with an SD60 saildrive, available as standard with 80 hp or optionally with 100 hp. The fuel tank has a capacity of 385 litres, the water tank 375 litres, the boiler 40 litres, and there are two holding tanks, each with a capacity of 52 litres.

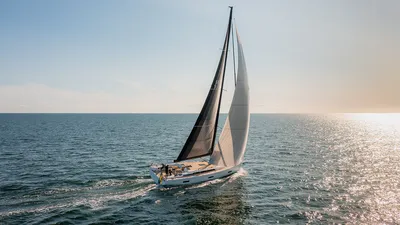

The sail plan comprises a mainsail of 86 square metres and a self-tacking jib of 56 square metres, with the option of an overlapping jib of 65 square metres and an asymmetrical spinnaker of 222 square metres. The maximum air draft is 24.07 metres excluding the VHF radio antenna. The boat falls within CE design category A.
