Hull length10.60 mFilter by hull length
Beam3.52 m
Draught1.15 m
Weight6,450 kgFilter by weight
Max. power440 hp
CE categoryB
About this boat

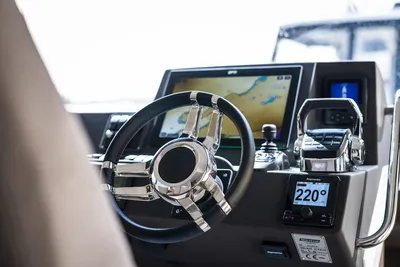

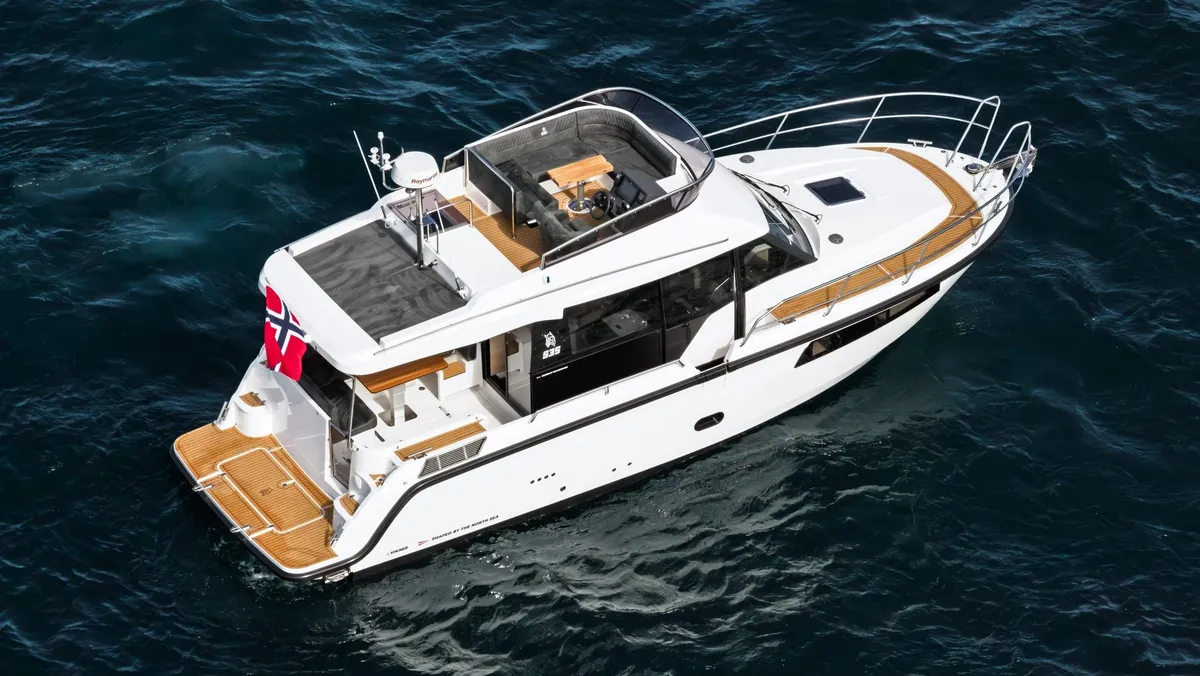

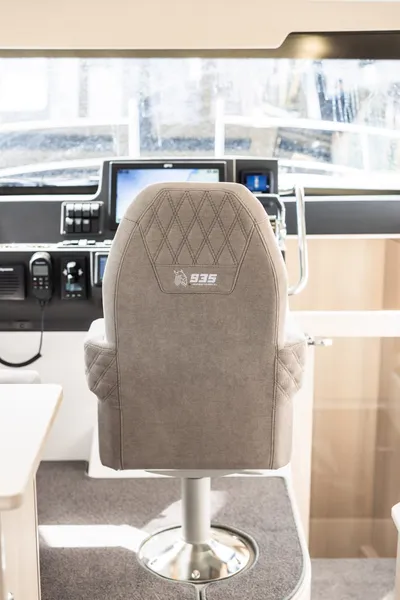

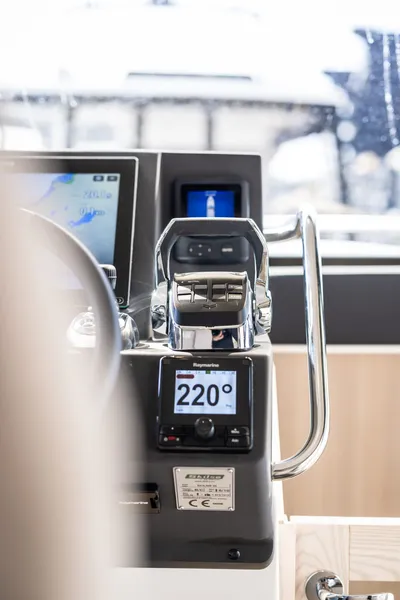

The Viknes S35 Flybridge is the flybridge version of the S35. The vessel shares the hull and layout with the Panorama version, but features a second helm station on top of the superstructure.
Specifications
Dimensions and weight
- Hull length
- 10.60 m
- Length overall
- 10.60 m
- Beam
- 3.52 m
- Draught
- 1.15 m
- Air draft
- 3.41 m
- Weight
- 6,450 kg
- Max. persons
- 10
Engine and power
- Max. power
- 440 hp
- Fuel tank
- 350 l
Hull and construction
- CE category
- B
- Hull material
- GRP
Full description
Show full description

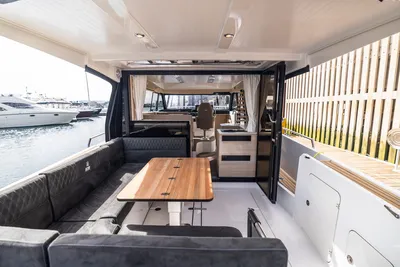

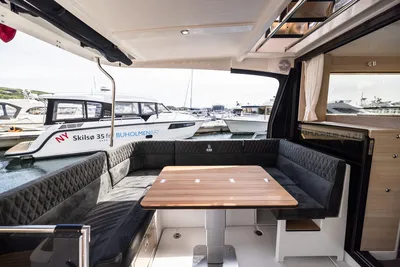

Including the flybridge, the overall height is 4.16 metres without the mast and bow, and 5.56 metres including them; the air draft is 3.41 metres without the mast and 4.63 metres with the mast. The hull length and beam remain at 3.52 metres (10,60), and the draught is 1.15 metres at maximum load. At 6,450 kilograms, the kerb weight is slightly higher than that of the Panorama. Inside, there are five berths, arranged as two plus two plus one.
The engine options are the same as those for the Panorama: a Yanmar 8LV 370 with 370 hp, a Yanmar 6LY 400 producing 400 hp or a Yanmar 6LY 440 producing 440 hp, as a single engine with a straight propeller shaft. The fuel capacity is 700 litres, divided between two 350-litre tanks.
The fresh water tank has a capacity of 280 litres, the hot water tank 40 litres and the holding tank 140 litres. The hull is semi-planing with a keel. The CE certification is Category B for six people on board and Category C for ten.
Engines and power
The builder offers the S35 Flybridge with an inboard engine, in three versions.
Yanmar8LV370365 hp · 272 kW365 hp · dieselDiesel · inboard · 8 cylinders · 4.5 lView the 8LV370 →
Yanmar6LY400400 hp · 294 kW400 hp · dieselDiesel · shaft drive / Jet drive · 6 cylinders · 5.8 lView the 6LY400 →
Yanmar6LY440440 hp · 324 kW440 hp · dieselDiesel · shaft drive / Jet drive · 6 cylinders · 5.8 lView the 6LY440 →Want to know what the boat costs with one of these engines? The builder or a dealer will be happy to help.
