Hull length21.93 mFilter by hull length
Beam5.91 m
Draught3.10 m
Weight53,957 kgFilter by weight
Max. power247 hp
About this boat

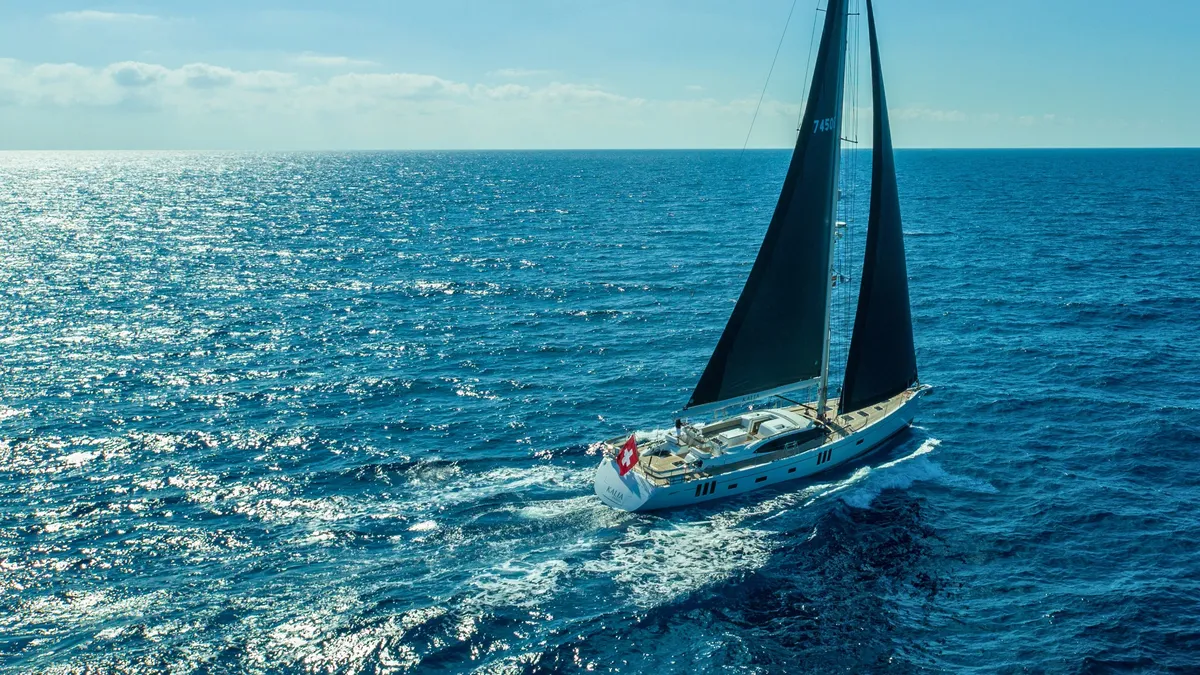

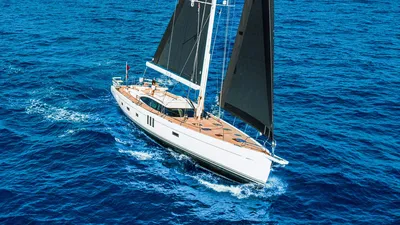

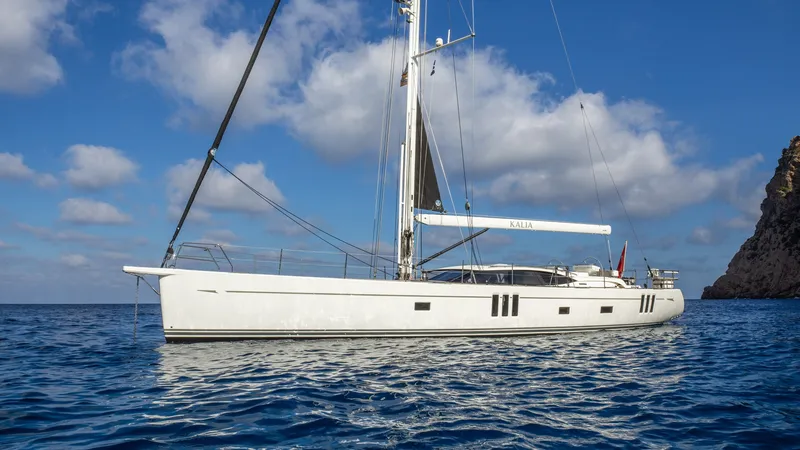

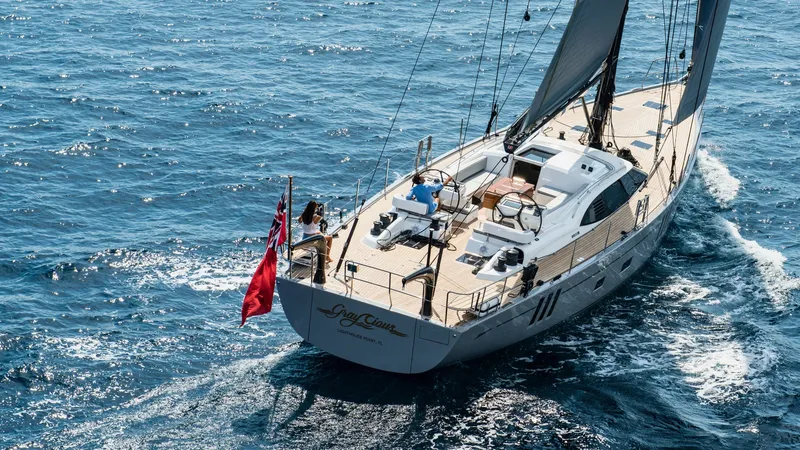

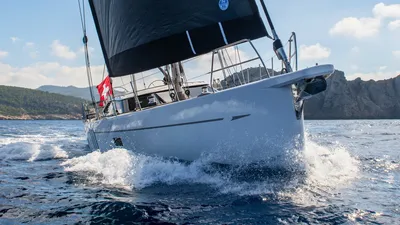

The Oyster 745 is a 75-foot blue-water sailing yacht from Oyster Yachts, offering a wide range of layout options and flexible crew accommodation. The yacht is designed for owners who undertake long voyages, with or without a permanent crew.
Specifications
Dimensions and weight
- Hull length
- 21.93 m
- Length overall
- 22.74 m
- Beam
- 5.91 m
- Draught
- 3.10 m
- Air draft
- 32.49 m
- Weight
- 53,957 kg
Engine and power
- Max. power
- 247 hp
- Fuel tank
- 2,000 l
Hull and construction
- Hull material
- GRP
Accommodation
- Berths
- 10
Full description
Show full description
The hull measures 21.93 metres and the overall length is 22.74 metres, with a waterline length of 20.03 metres and a beam of 5.91 metres. The displacement with the standard keel is 53,957 kilograms. The draught is 3.10 metres with the standard keel; with the centreboard, it is 1.98 metres when raised and 4.56 metres when lowered.
The engine is a Cummins QSB6.7-250 turbo diesel, 184 hp. The fuel tank holds 2,000 litres and the water tank 1,500 litres. The sail area is 269 m² (furling mast) and 279 m² (slab reef), and the mast height above water is 32.49 metres, excluding antennas.
The design is by naval architect Rob Humphreys. The hull and deck will be certified by Lloyd’s Register during construction.

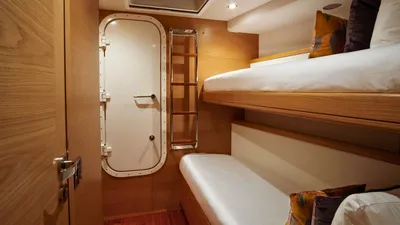

The interior comprises an owner’s cabin, several guest cabins with en-suite bathrooms and crew quarters, accommodating up to ten guests. An extended stern is available.
