Hull length20.12 mFilter by hull length
Beam5.30 m
Draught1.61 m
Weight37,200 kgFilter by weight
Max. power2,400 hp
About this boat

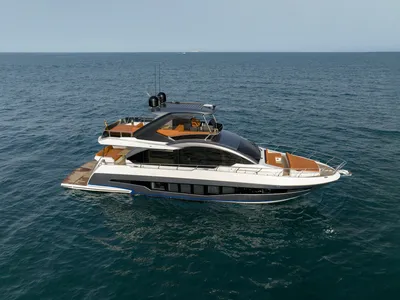

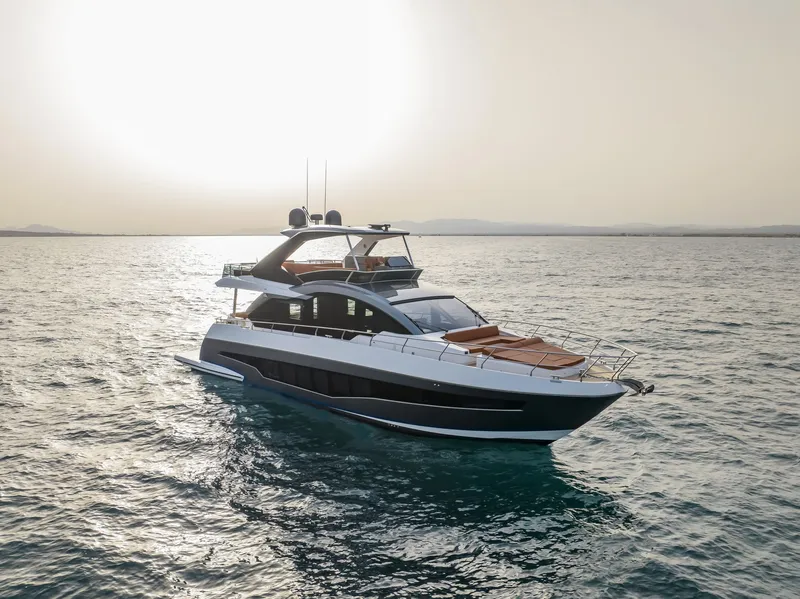

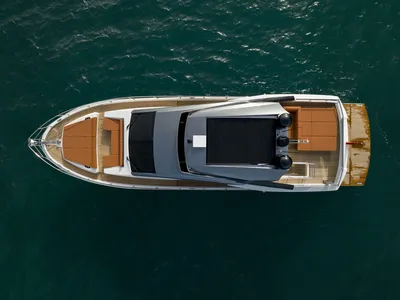

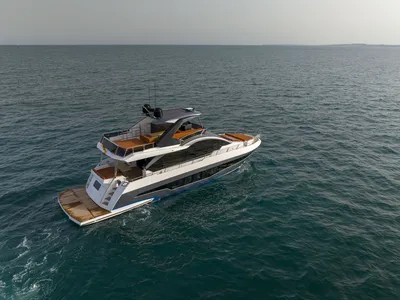

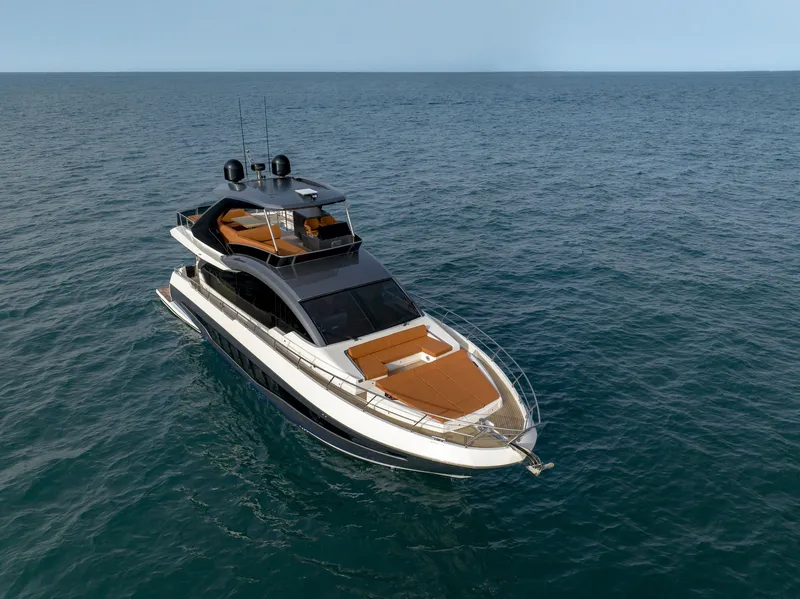

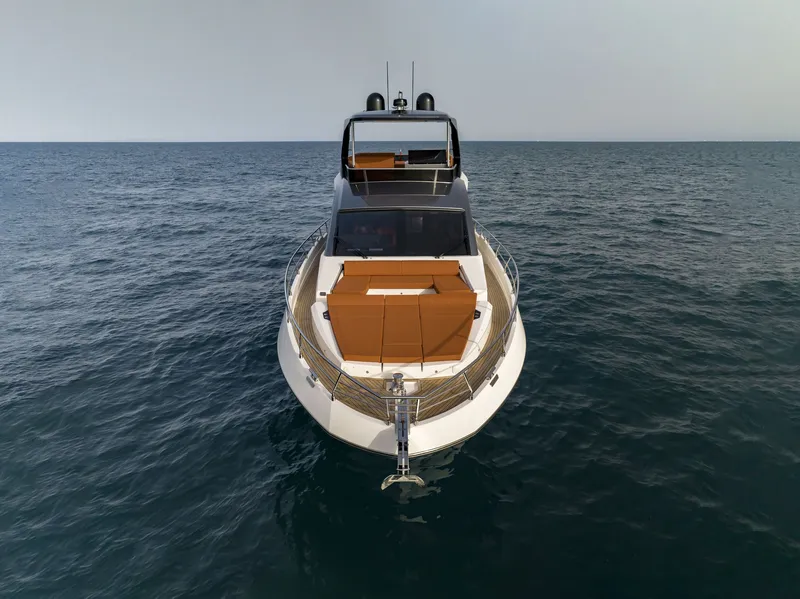

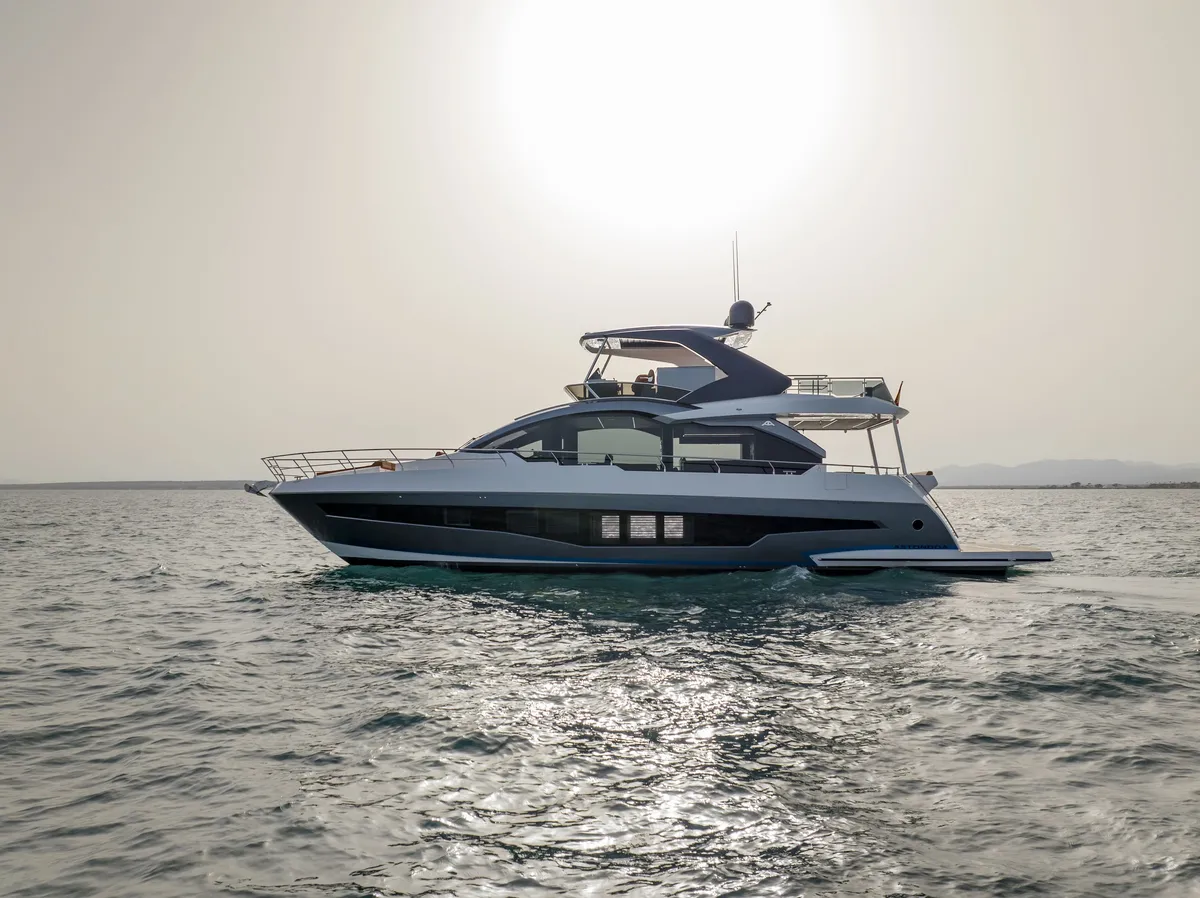

The 66 Flybridge is Astondoa’s largest flybridge model and measures over twenty metres. The vessel is designed for owners who undertake longer cruises with guests and wish to have a separate crew cabin. The hull is V-shaped with a 15.5-degree deadrise, constructed from glass-fibre-reinforced plastic.
Specifications
Dimensions and weight
- Hull length
- 20.12 m
- Length overall
- 20.12 m
- Beam
- 5.30 m
- Draught
- 1.61 m
- Weight
- 37,200 kg
- Max. persons
- 18
Engine
- Max. power
- 2,400 hp
- Number of engines
- 2
- Max. power per engine
- 1,200 hp
- Fuel tank
- 3,600 l
Hull and construction
- Hull material
- GRP
Accommodation
- Berths
- 8
Full description
Show full description

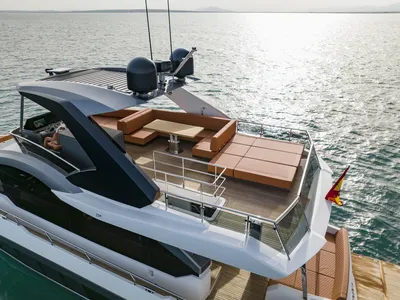

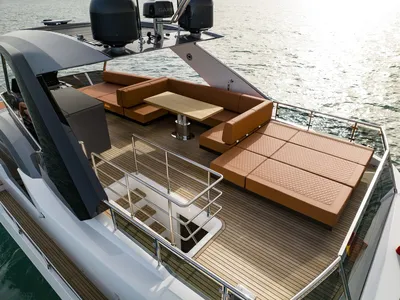

Below deck there are four cabins with three bathrooms, plus a crew cabin with its own bathroom facilities. The flybridge is spacious and the aft deck leads onto a swim platform.
As standard, the vessel is fitted with two Volvo Penta IPS1350 units; as an option, the yard offers two MAN V8-1200 engines producing 1,200 hp. The top speed is between 30 and 31 knots, the cruising speed between 24 and 26 knots, with a range of approximately 300 nautical miles.
The light weight is 37,200 kilograms and the fully laden weight is 44,400 kilograms. The fuel tank holds 3,600 litres and the water tank 1,000 litres. Astondoa has the vessel certified by RINA and specifies a maximum of eighteen people on board.
Engines and power
Volvo PentaStandardD13-IPS13501,000 hp per engine1,000 hp per engine · dieselDiesel · iPS / pod · 6 cylinders · 12.8 lView the D13-IPS1350 →
MANOptionV8-12002 × 1,200 hp = 2,400 hp2 × 1,200 hp · dieselDiesel · inboard · 8 cylinders · 16.2 lView the V8-1200 →Want to know what the boat costs with one of these engines? The builder or a dealer will be happy to help.
