Hull length20.32 mFilter by hull length
Beam6.30 m
Draught1.17 m
Weight45,000 kgFilter by weight
Max. power3,100 hp
CE categoryA
About this boat

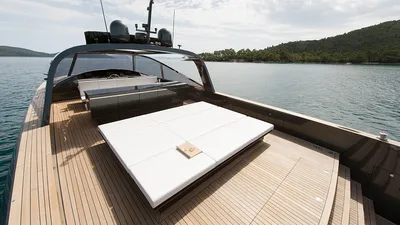

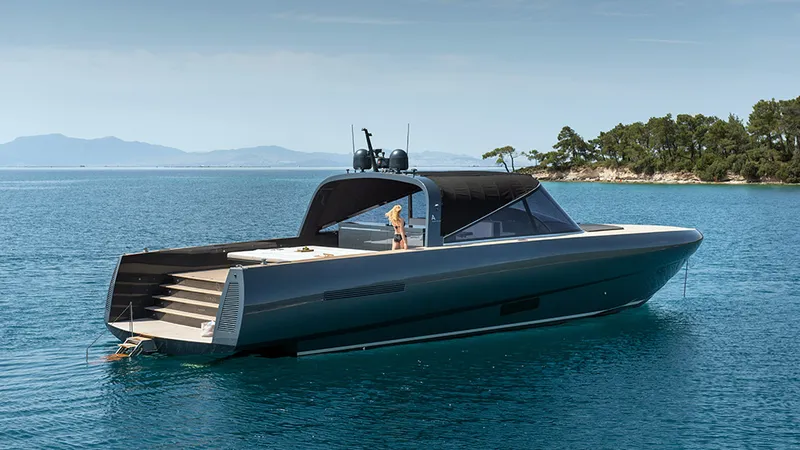

The Alen 68 is the Turkish yard’s most striking model: the exterior and deck design were created by the architectural firm Foster + Partners. Alen describes the model as ‘land and sea in harmony’, a reference to the continuous main deck without any stairs or thresholds.
Specifications
Dimensions and weight
- Hull length
- 20.32 m
- Length overall
- 20.32 m
- Beam
- 6.30 m
- Draught
- 1.17 m
- Weight
- 45,000 kg
- Max. persons
- 16
Engine and power
- Max. power
- 3,100 hp
- Number of engines
- 2
- Max. power per engine
- 1,550 hp
- Fuel tank
- 4,500 l
Hull and construction
- CE category
- A
- Hull material
- GRP
Full description
Show full description

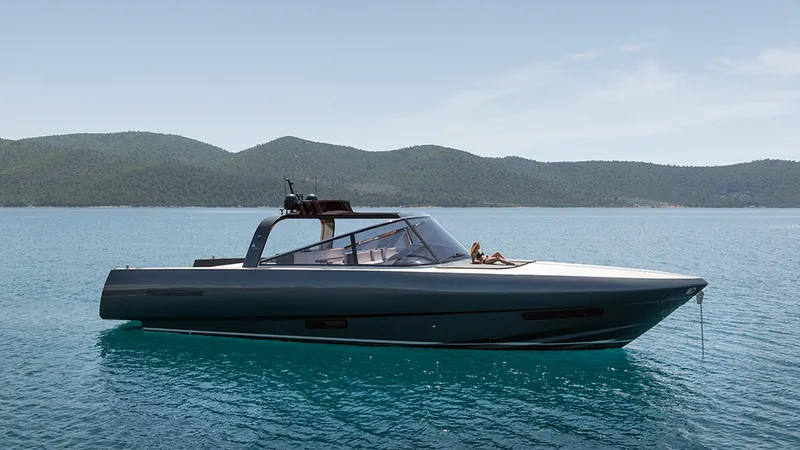

The vessel measures 20.32 metres overall, with a beam of 6.30 metres and a draught of 1.17 metres. It is constructed entirely from composite materials with an AIREX core. It weighs 45 tonnes.

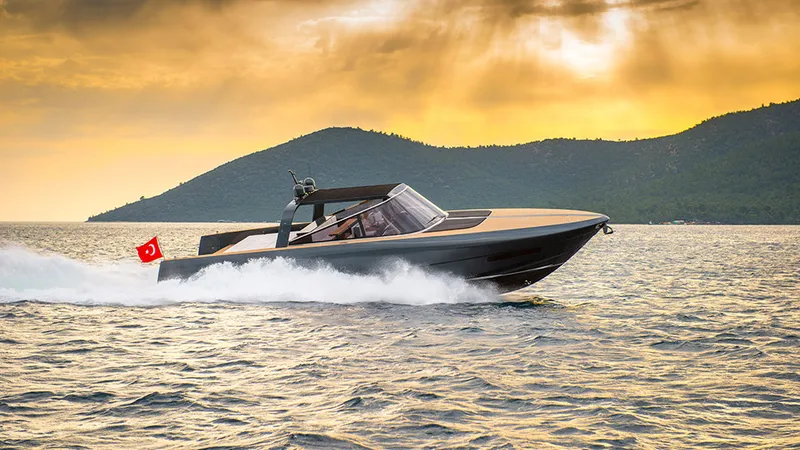

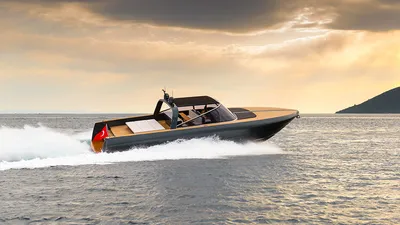

The propulsion system consists of two MAN V12 diesel engines, each producing 1,550 hp, for a combined output of 3,100 hp. This enables the vessel to reach a top speed of 45 knots and a cruising speed of 41 knots, with a range of 315 nautical miles.
The tanks hold 4,500 litres of fuel, 1,000 litres of drinking water, 270 litres of waste water and 310 litres of grey water. The vessel can carry sixteen people.
This is the yard’s only model with CE design category A certification, which means that the vessel is certified for ocean-going service.
