Power20 hpFilter by power
Weight45 kg
Shaft lengthShort shaft, long shaft
StartElectric start or manual start
Fuel tankExternal, 12 l
SteeringTiller or remote control
Specifications
- Power
- 20 hp
- Power (kW)
- 14.7 kW
- Cylinders
- 2
- Displacement
- 333 cc
- Weight
- 45 kg
- Rated rpm
- 6,200 rpm
- Shaft length
- Short shaft, long shaft
- Start
- Electric start or manual start
- Fuel tank
- External, 12 l
- Steering
- Tiller or remote control
- Trim/tilt
- Manual tilt or power tilt
- Fuel
- Petrol
- Mounting
- Outboard
Boats with this engine

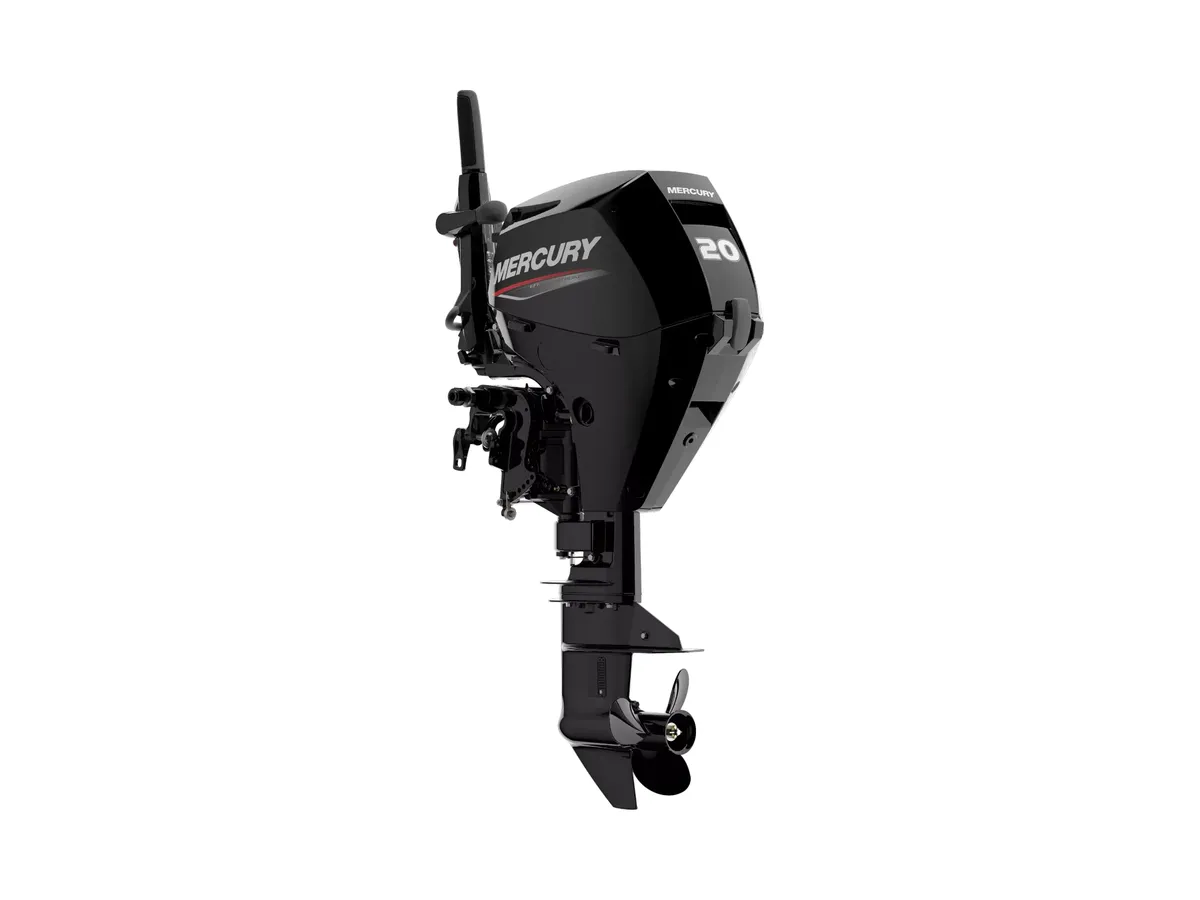

Boats on which the Mercury FourStroke 20 is available as standard or as an option, as stated by the builder.
Explainer
Which shaft length do I need?
The shaft length must match the transom height of your boat: the height of the transom, measured from the top to the bottom of the hull.
- 1
Measure your transom
Measure the transom height in the middle of the transom, straight down to the bottom of the hull.
- 2
Compare with the engine
For each shaft length the manufacturer states which transom height it is meant for. Choose the shaft that matches.
- 3
Too short or too long?
Too short: the propeller draws in air and cooling works poorly. Too long: more drag and less speed. In doubt, ask the builder or a dealer.
