Power2.5 hpFilter by power
Weight17 kg
Shaft lengthShort shaft
StartManual start
Fuel tankIntegrated, 1,1 l
SteeringTiller
Specifications
- Power
- 2.5 hp
- Power (kW)
- 1.8 kW
- Cylinders
- 1
- Displacement
- 85 cc
- Weight
- 17 kg
- Rated rpm
- 5,500 rpm
- Shaft length
- Short shaft
- Start
- Manual start
- Fuel tank
- Integrated, 1,1 l
- Steering
- Tiller
- Trim/tilt
- Manual tilt
- Fuel
- Petrol
- Mounting
- Outboard
Boats with this engine

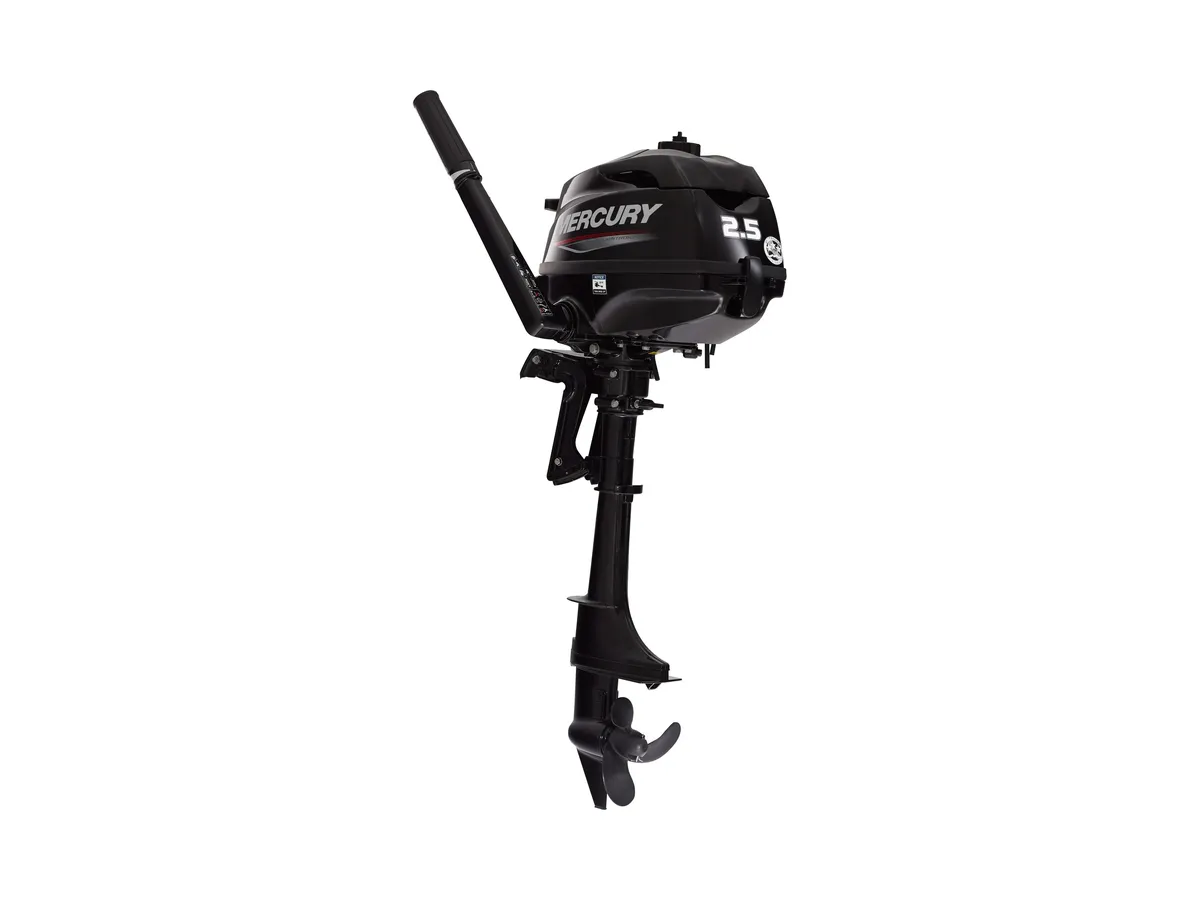

Boats on which the Mercury FourStroke 2.5 is available as standard or as an option, as stated by the builder.
Explainer
Which shaft length do I need?
The shaft length must match the transom height of your boat: the height of the transom, measured from the top to the bottom of the hull.
- 1
Measure your transom
Measure the transom height in the middle of the transom, straight down to the bottom of the hull.
- 2
Compare with the engine
For each shaft length the manufacturer states which transom height it is meant for. Choose the shaft that matches.
- 3
Too short or too long?
Too short: the propeller draws in air and cooling works poorly. Too long: more drag and less speed. In doubt, ask the builder or a dealer.
